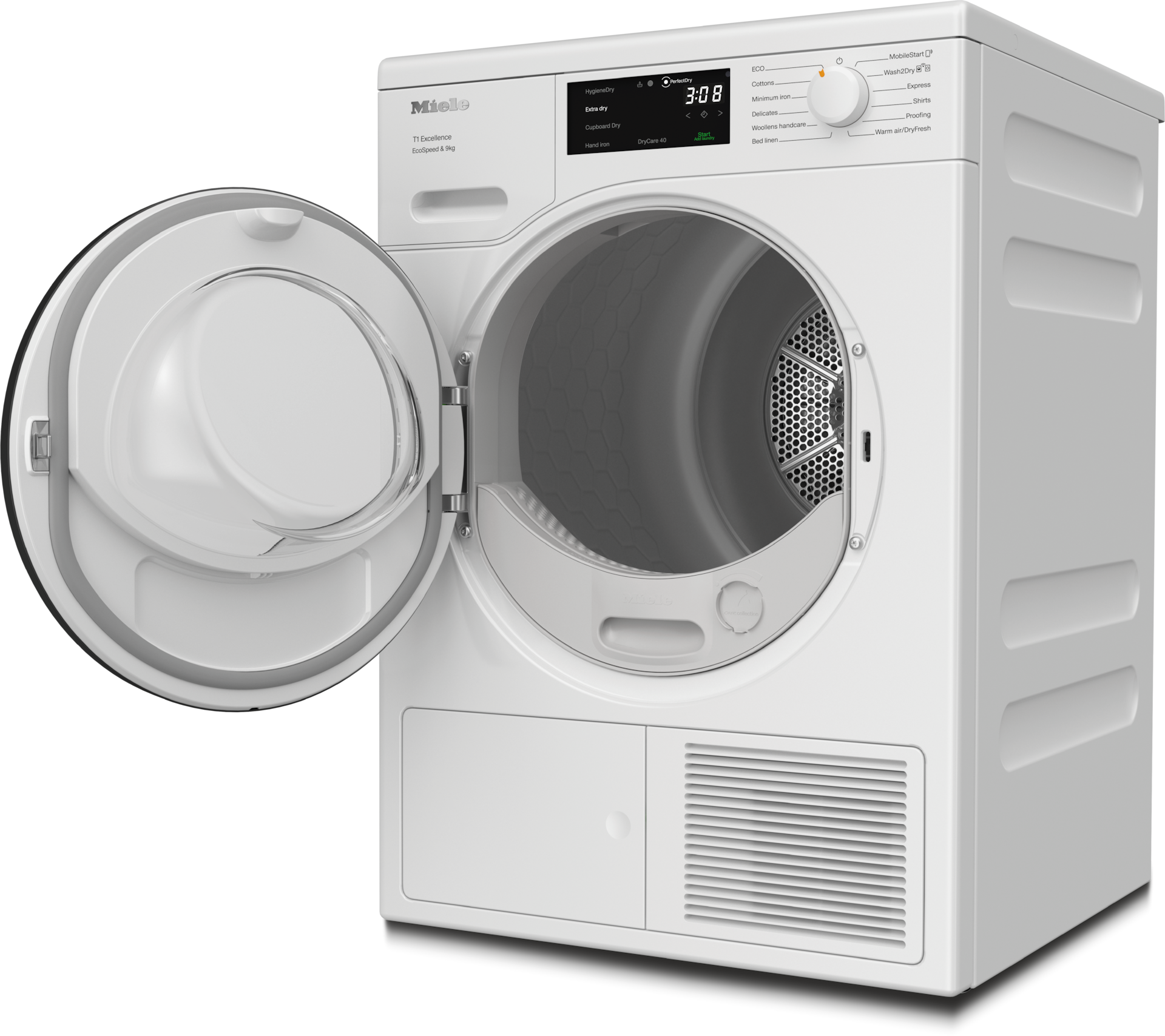

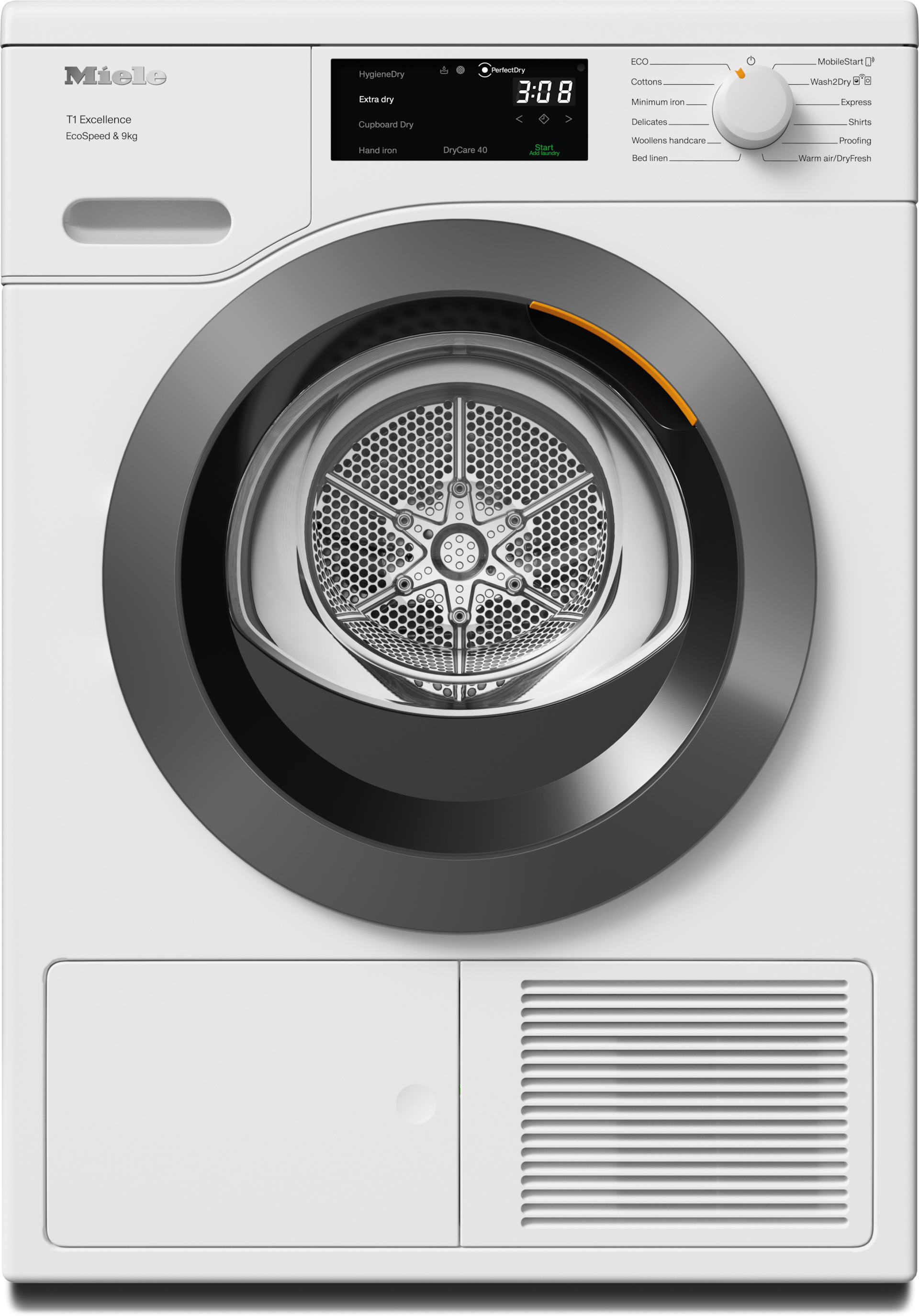

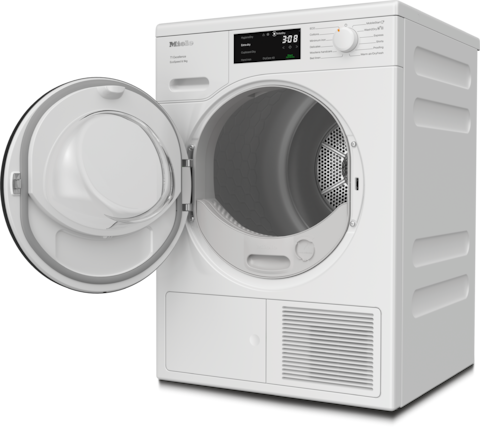

T1 heat-pump dryer:

TED645WP EcoSpeed&9kg

9 kg I DirectSensor I DryCare 40 I HygieneDry I Miele@home


sale price€1,299.99
12
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.







Additional services

You can select the following services for this product in your basket:

  • Recycle Old Appliance (€0.00)
  • Freestanding Installation (€50.00)
  • Stacked Laundry Installation (€80.00)

Product details

  • Tested for
    20 years
    of perfect laundry care11,
  • Economical and gentle drying –
    heat-pump technology
  • DryCare 40
    – dries almost anything that can be washed at 40 °C
  • Faster drying combined with maximum energy efficiency – EcoSpeed
  • HygieneDry
    removes up to 99.99 % of bacteria* and 99.9 % of viruses12,
  • Manufactured with great care by
  • You will find more information about product data and your rights under the EU Data Acthere
  • Safety information

Product data sheet

Suitable for stacking
Side-by-side
Slot-in
Can be built-under
Door hinge left
Product brand T1 Chrome Edition
Heat pump dryer
Appliance colour Lotus white
Control panel colour Lotus white
Door design Graphite grey PearlFinish
Rotary selector colour Lotus White
Control panel version Straight
Control type Rotary control
Display DirectSensor white, 7 segment
PerfectDry precision drying
FragranceDos fragrance system
Intelligent drum reversal
HygieneDry
Honeycomb drum
Load in kg 9
Networking with Miele@home
Wash2Dry
Delay start up to 24 hours
Time left display
Drum lighting LED
Condensate container
Integrated condensed water drainage
AddLoad
Energy efficiency class (A - G) C
Weighted energy consumption per 100 cycles in the “ECO Normal” programme in kWh 107
Acoustic airborne noise emissions in the “ECO Normal” standard programme in dB(A) re 1 pW 64
Acoustic airborne noise emission class (A–D) B
Programme running time in the “ECO Normal” programme in min 187
Condensation efficiency in % 95
Condensation efficiency class (A–D) A
EcoDry technology
Maintenance-free heat exchanger
ProfiEco motor
EcoSpeed
Cottons (coloureds)
ECO
Minimum iron
Delicates
Shirts
Woollens handcare
Express
Proofing
Bed linen
Warm air/DryFresh
Anti-crease
Buzzer
DryCare 40
Soft ribs
PIN-Code
Empty out container indicator
Clean filter indication
Optical interface
Dimensions in mm (width) 596
Dimensions (H x W x D) in mm 850 x 596 x 636
Dimensions in mm (height) 850
Dimensions in mm (depth) 636
Appliance depth in mm with opened door 1054
Weight in kg 53
Total rated load in kW 1.100
Voltage in V 220-240
Fuse rating in A 10
Frequency in Hz 50
Length of supply lead in m 2
Hermetically sealed
Type of coolant R290
Refrigerant quantity in kg 0.140
Refrigerant global warming potential in CO₂ e 3
Appliance global warming potential in CO₂ e 0.42
Replacing lamps Service
Fragrance flacon
Voucher for a second fragrance flacon
EAN 4002516880011

What's included

Fragrance flacon
Voucher for a second fragrance flacon

Drying programs

Business as usual
Shirts

Prevents creasing: reduces creasing and simplifies the ironing of shirts and blouses significantly.


Optimum care of synthetic fibres
Delicates

Takes care of synthetic fibres: these look good & stay in shape for longer when dried with this special programme.


Most gentle treatment of your favourite garments
Finish Woollens

Beautifully fluffy: Delicate wool fabrics are handled particularly gently, maintaining their quality.


Drying in the shortest time
Express

Sometimes things have to be done fast: so small laundry loads are dried quickly and can be used again.


Equip textiles with functions
Proofing

Best possible effect: Thermally fixing ensures optimum water-repellent properties.


Bed linen
Bed linen

Best results: uniform drying of large items of textiles.


Efficiency and sustainability

Economical, powerful, and maintenance-free
ProfiEco motor3,

Powerful and efficient: our inverter drive motors minimise wear, noise and energy consumption.


Consistently energy-efficient
Maintenance-free heat exchanger

Sustainable, maintenance-free: a filter protects the heat exchanger, so it no longer requires constant cleaning.


Quick and efficient drying
EcoDry technology

EcoDry technology ensures long-term low energy consumption and short programme running times.


Sustainability meets timesaving
EcoSpeed

EcoSpeed reduces drying times by up to 20 minutes4, – without compromising on energy efficiency.


Energy-efficient tumble drying
Energy efficiency

High energy efficiency, excellent results, short drying times.


Optimum protection for your home
Highest condensation efficiency

Maximum protection against moisture with the highest condensation efficiency class A.


Quality

Tested for 20 years of perfect laundry care5,
Tested for the equivalent of 20 years' use5,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.5,


User convenience

Convenient water drainage
Integrated condensed water drainage

Emptying not necessary: the condensation can be drained off via a hose directly into the sink or a U-tube.


Synchronised dryer and washer
Wash2Dry6,

Benefit from networked appliances: your dryer automatically matches its programme with your washing machine.


Add large & small items even after programme start
AddLoad

Maximum convenience: you can easily add or remove laundry items even after the programme has started.


Smart connectivity
Miele@home7,

Connect your tumble dryer to your home network and access its controls through a convenient and intuitive app.


Gentle laundry care

Keep your clothing safe while drying
Honeycomb drum

The specially engineered drum dries fabrics more evenly and cushions them, resulting in less creases and wear.


Gentle on fabrics
Heat-pump technology

Drying at low temperatures protects your clothes.


Gently dry delicate laundry
DryCare 40 extra

Use the new options with DryCare 40 and dry all items that can be washed at 40 °C.8,


Looser laundry after drying
Anti-crease action

Practically crease-free: the laundry is loosened regularly after the programme has finished, preventing creasing.


Drying results

Enjoy the highest standard in hygiene
HygieneDry

HygieneDry removes up to 99.99 % of bacteria and 99.9 % of viruses9, .


Automated precision drying
PerfectDry precision drying

Experience perfectly dried laundry thanks to automatic adaptation to the water quality.


Enhance your laundry scent
FragranceDos fragrance system10,

With Miele’s auto fragrance system, every laundry load can be freshly scented just the way you like.


Downloads

Warranty conditions
PDF
Downloads
User manual
PDF
Downloads
EU declaration of conformity
PDF
Downloads
Product sheet
PDF
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
Product fiche
PDF
Downloads

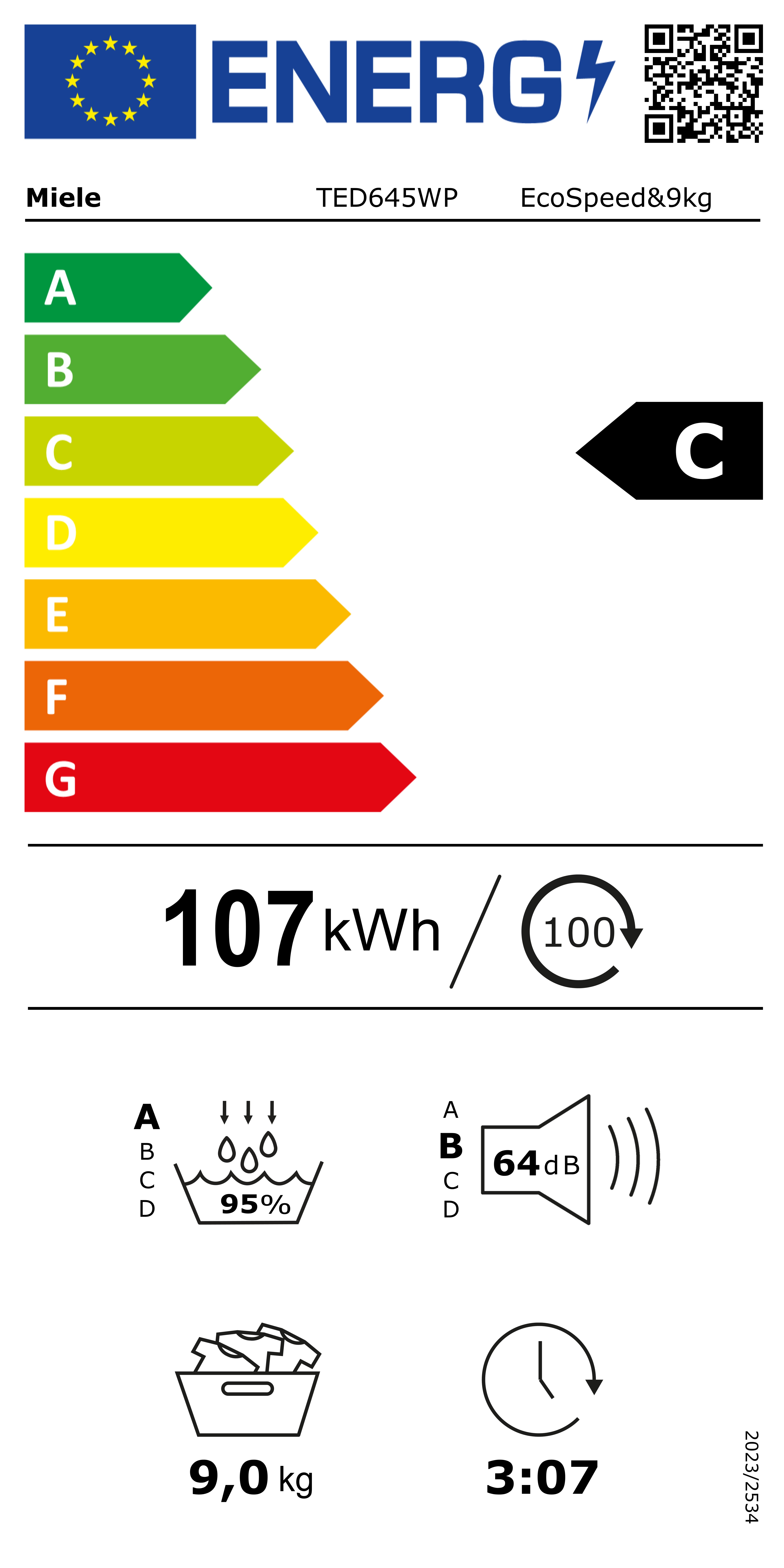

Energy label
PDF
Downloads
Energy label
PNG
Downloads
Energy label
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000018/200001844/20000184424.png
Descriptions
T1 drawing, slanted facia or straight facia, with porthole, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001844/20000184423.png
Descriptions
T1 drawing, slanted facia or straight facia, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001844/20000184425.png
Descriptions
T1 drawing, slanted facia or straight facia, without porthole, measures in mm
Installation drawings
Downloads
https://media.miele.com/images/2000018/200001844/20000184422.png
Descriptions
T1 installation drawing, slanted facia or straight facia, measures in mm
Installation drawings
Downloads
  • 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
  • 2.Retail price includes 23% VAT.
  • 3.Patent: EP 2 840 679
  • 4.Compared to Miele tumble dryers without EcoSpeed with the same load size and energy efficiency class. Tested in the Cottons programme with a full load size.
  • 5.During the development phase of the T1 / T2 tumble dryer series, Miele tested models and core components in 5000 drying cycles (= 5 drying cycles per week for 50 weeks per year) in various programmes. More: miele.com/20years
  • 6.For this function to work, the tumble dryer and washing machine must be registered in the in-house network and/or in the app.
  • 7.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • 8.Not suitable for woollens or silks.
  • 9.With the exception of Hepatitis B. Tested by Albstadt-Sigmaringen University and awarded the silver label by the Institute for Integrative Hygiene and Virology (InFluenc_H). A description of the relevant methodology can be found at the following link:  a href="https://www.miele.com/tr-c" https://www.miele.com/tr-c /a
  • 10.Patent: EP 2 431 516
  • 11.During the development phase of the W1 / W2 washing machine series, Miele tested models and core components in 5000 wash loads (= 5 wash loads per week for 50 weeks per year) in various programmes. More: miele.com/20years
  • 12.Tested for Bacillus subtilis and Saccharomyces cerevisiae bacteria in the HygieneDry drying level with half load. A description of the relevant methodology can be found at the following link: a href="https://www.miele.com/media/ex/com/Testkriterien_Hygiene-Siegel_T1.pdf" miele.de/testkriterien-trockner /a

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
