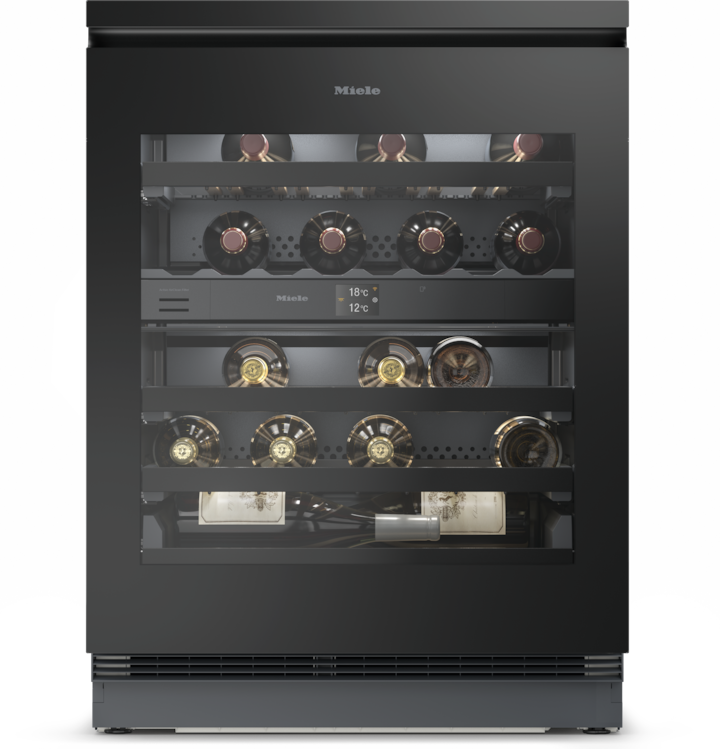

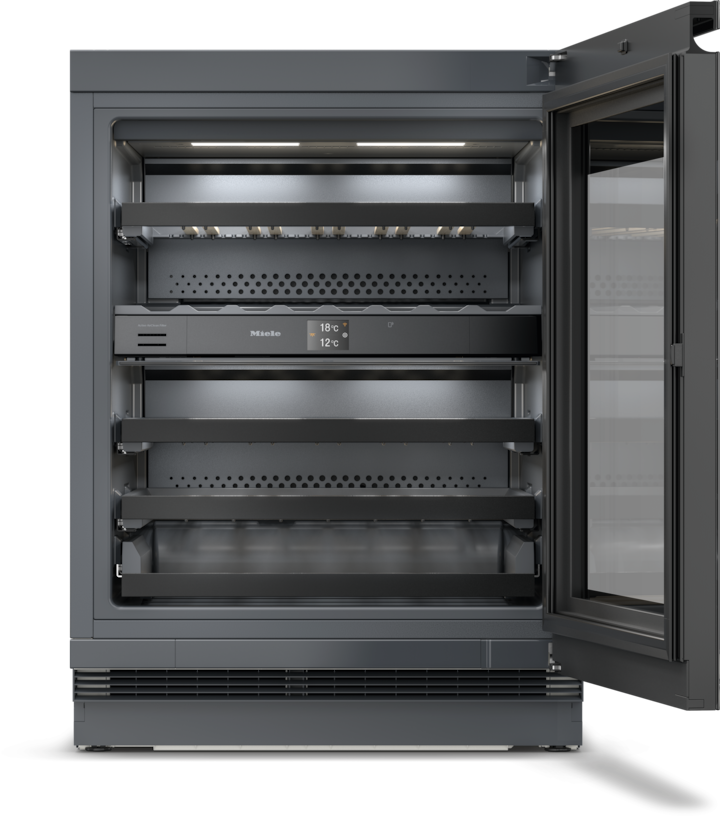

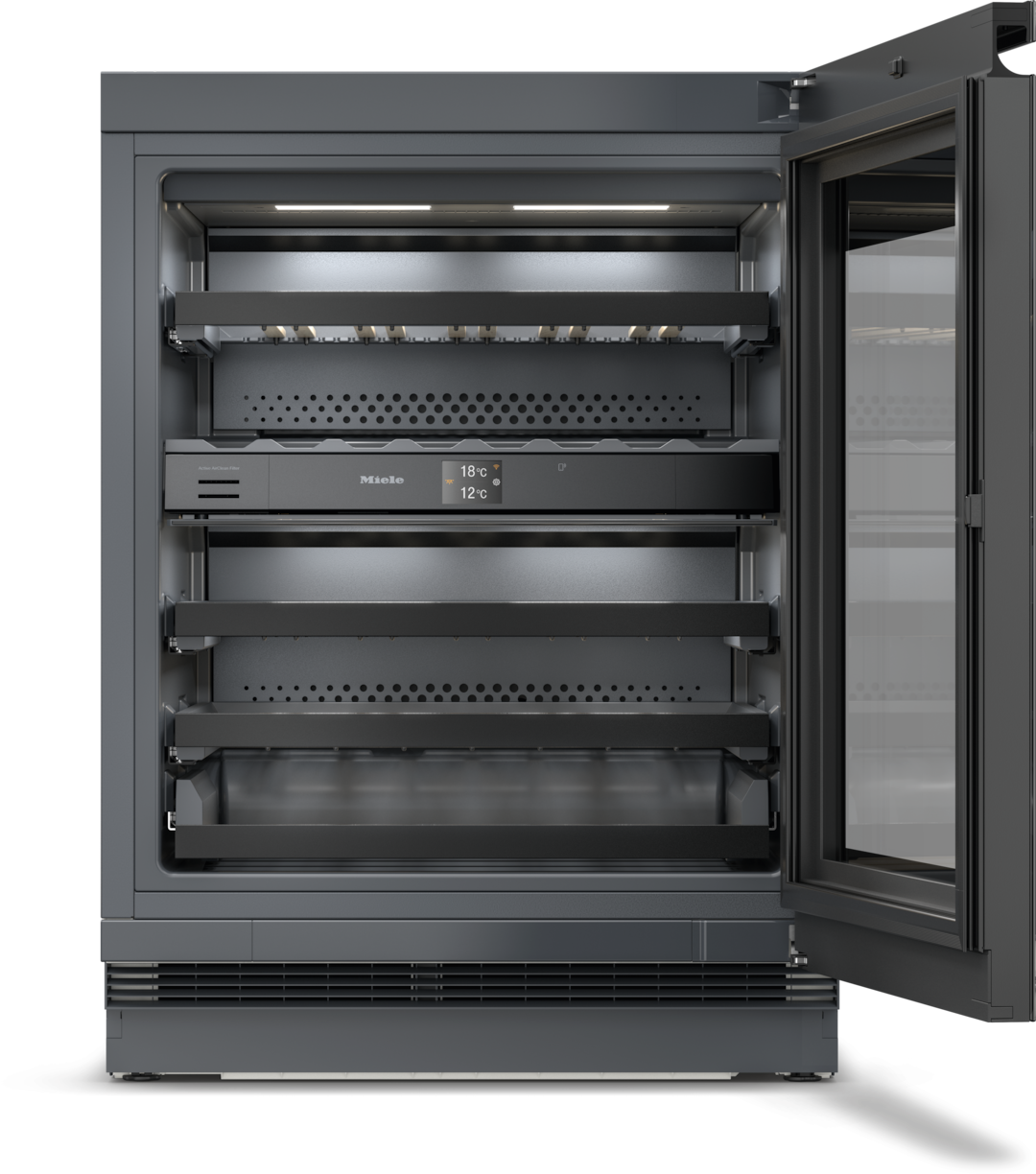

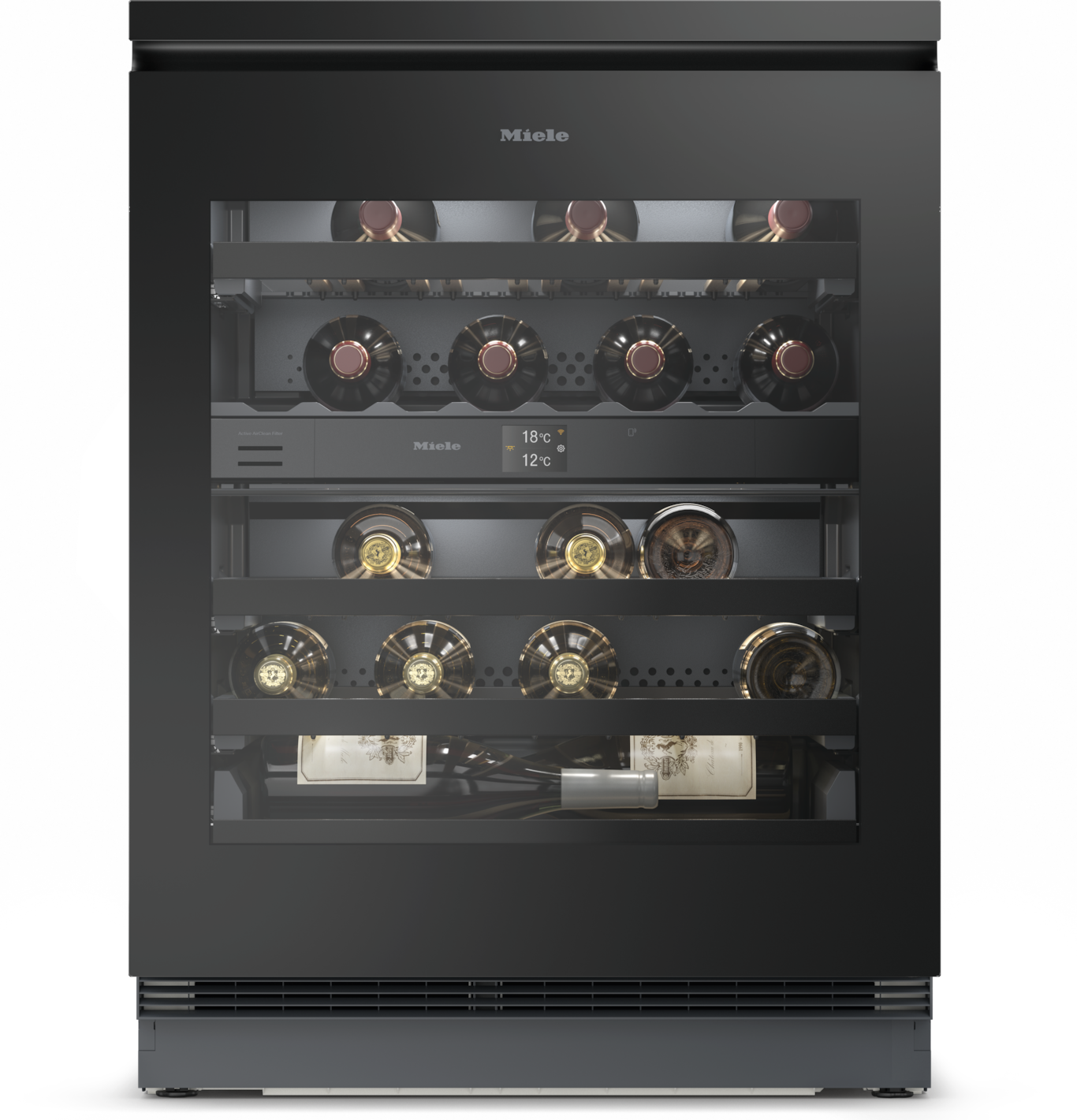

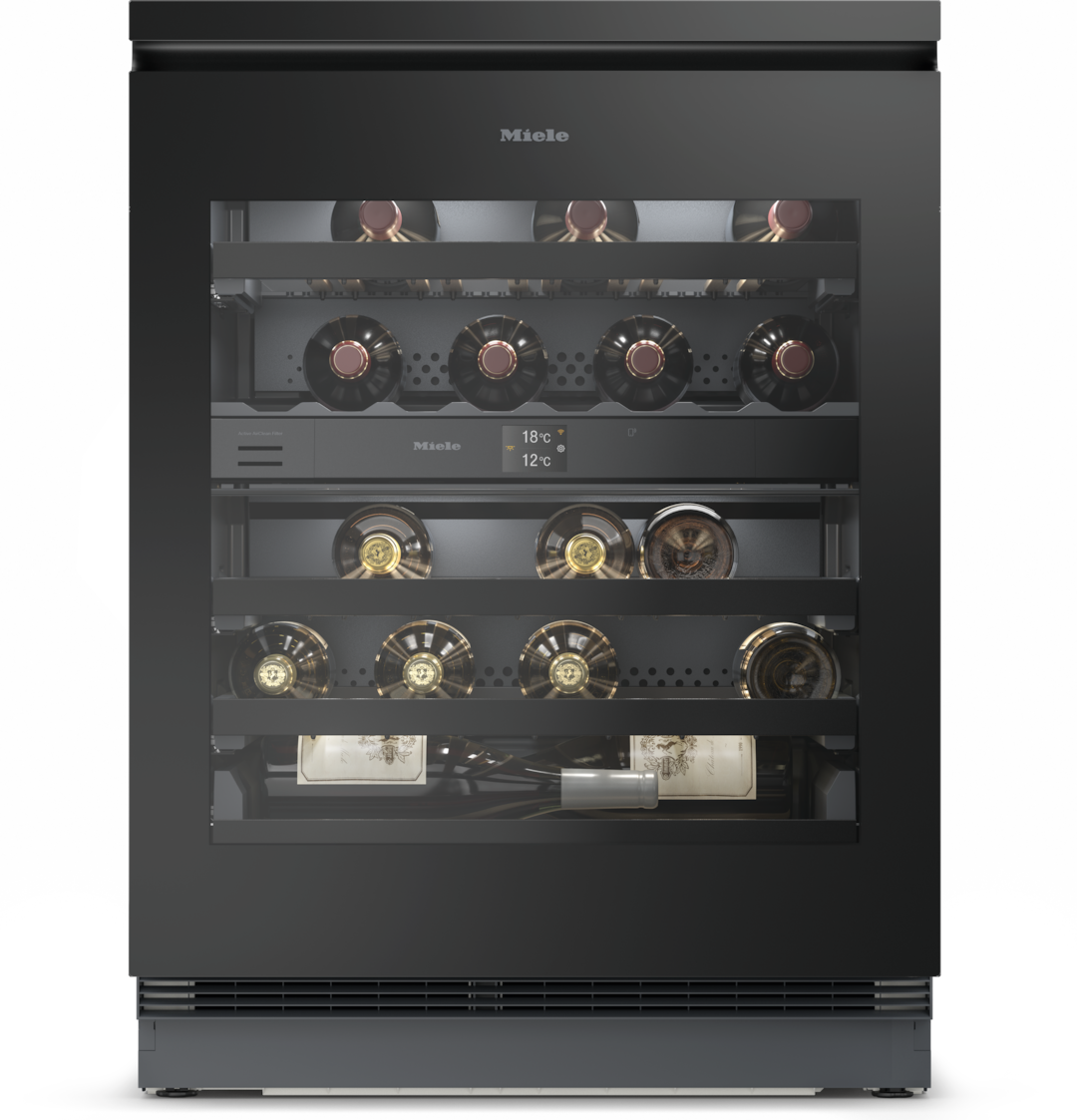

Built-under wine conditioning unit, 82–88 cm niche heightPLATINUM
KWTUS 7074 F Obsidian Black glass
with separate temperature zones, FlexiFrame and ActiveHumidity in a compactColour:Obsidian Black glass
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.
You can select the following services for this product in your basket:
- Recycle Old Appliance (€0.00)
- Built-In Installation (€70.00)
Product details
- Perfect drinking and storage temperatures thanks to separatetemperature zonesLoading...
- Storage of all bottle sizes/shapes thanks toFlexiFrameLoading...
- Perfect regulation of humidity withActiveHumidityLoading...
- Writing on the wooden shelves on the NoteBoard
- UV-resistant insulated glassperfectly protects your wineLoading...
- View manufacturer details:
- You will find more information about product data and your rights under the EU Data Acthere
- Safety information
Wine conditioning unit
Built-in appliance
Integrated appliance
Undercounter appliance
Door hinge right
Convertible door hinging
Side-by-side enabled
Loading...
Casing colour black
Front colour Obsidian Black glass
Wine compartment lighting continuously dimmable LED
Networking with Miele@home
Loading...
DynaCool
Loading...
Active AirClean Filter
Concealed door opener FrontOpen
Total number of shelves 5
Number of shelves 4
Shelf material Beechwood
Number of FlexiFrame racks 3
Loading...
Number of shelves for crosswise storage 1
SelfClose FlexiFrame
NoteBoard
Low-vibration storage
Loading...
Operating concept FreshTouch
No. of temperature zones 2
Loading...
Min. temperature setting range in °C 5
Max. temperature setting range in °C 20
Sabbath mode
Loading...
Dry back wall grey
ActiveHumidity
Loading...
Annual energy consumption in kWh 104
Energy consumption in 24 h in kWh 0.284
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in mm min. 600
Niche width in mm max. 600
Niche height in mm min. 820
Niche height in mm max. 880
Niche depth in mm 560
Appliance dimensions (W x H x D) in mm 597 x 819 x 563
Appliance width in mm 597
Appliance height in mm 819
Appliance depth in mm 563
Weight in kg 44
Climate class SN-ST
Refrigerator compartment in l 92
Wine compartment in l 92
Total usable capacity in l 92
0.75 l Bordeaux bottle capacity (no. of bottles) 32 bottles
Acoustic airborne noise emission class (A–D) B
Sound emissions in dB(A) re 1 pW 34
Current consumption (mA) 1500
Voltage in V 220-240
Fuse rating in A 13
Number of phases 1
Frequency in Hz 50-60
Length of supply lead in m 2.2
Active AirClean filter
White chalk pen
EAN 4002516861942
Active AirClean filter
White chalk pen
Customise each rack with strips you can write on
NoteBoard
For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.
Cleverly networked
Connected Home with Miele@home3,
Make your life smart: thanks to Miele@home , you can cleverly network your domestic appliances – for more options.
Storage with low vibration
Low vibration: The compressor is uncoupled and cushioned against vibration.
ActiveHumidity
Ideal conditions: customise the humidity for perfect wine storage.
UV protection
The best protection for valuable wine: glass door with integrated UV filter.NoteBoard
For individual labelling: every bottle rack features a removable, magnetic strip for labelling bottles on the rack.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, KWTUS7096E, Built-under, niche dimensions
KWTUS7054F, KWTUS7055F, KWTUS7074F, KWTUS7096E, Built-under, niche dimensions POSTSCRIPT
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, Built-under, top view
KWTUS7054F, KWTUS7055F, KWTUS7074F, Built-under, top view POSTSCRIPT
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, Built-under, side view
KWTUS7054F, KWTUS7055F, KWTUS7074F, Built-under, side view POSTSCRIPT
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, KWTUS7096E, KWTUS7196E, Built-under, side view (*footnote)
1. View from the front, 2. Mains connection cable, L = 2200 mm, 3. No connection in this area POSTSCRIPT
Descriptions
KWTUS7054F, KWTUS7055F, KWTUS7074F, Built-under, side view
KWTUS7054F, KWTUS7055F, KWTUS7074F, Built-under, side view POSTSCRIPT
- 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
- 2.Retail price includes 23% VAT.
- 3.Additional digital offer from Miele & Cie. KG. All smart applications are made possible with the Miele@home system. The range of functions can vary depending on the model and the country.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
