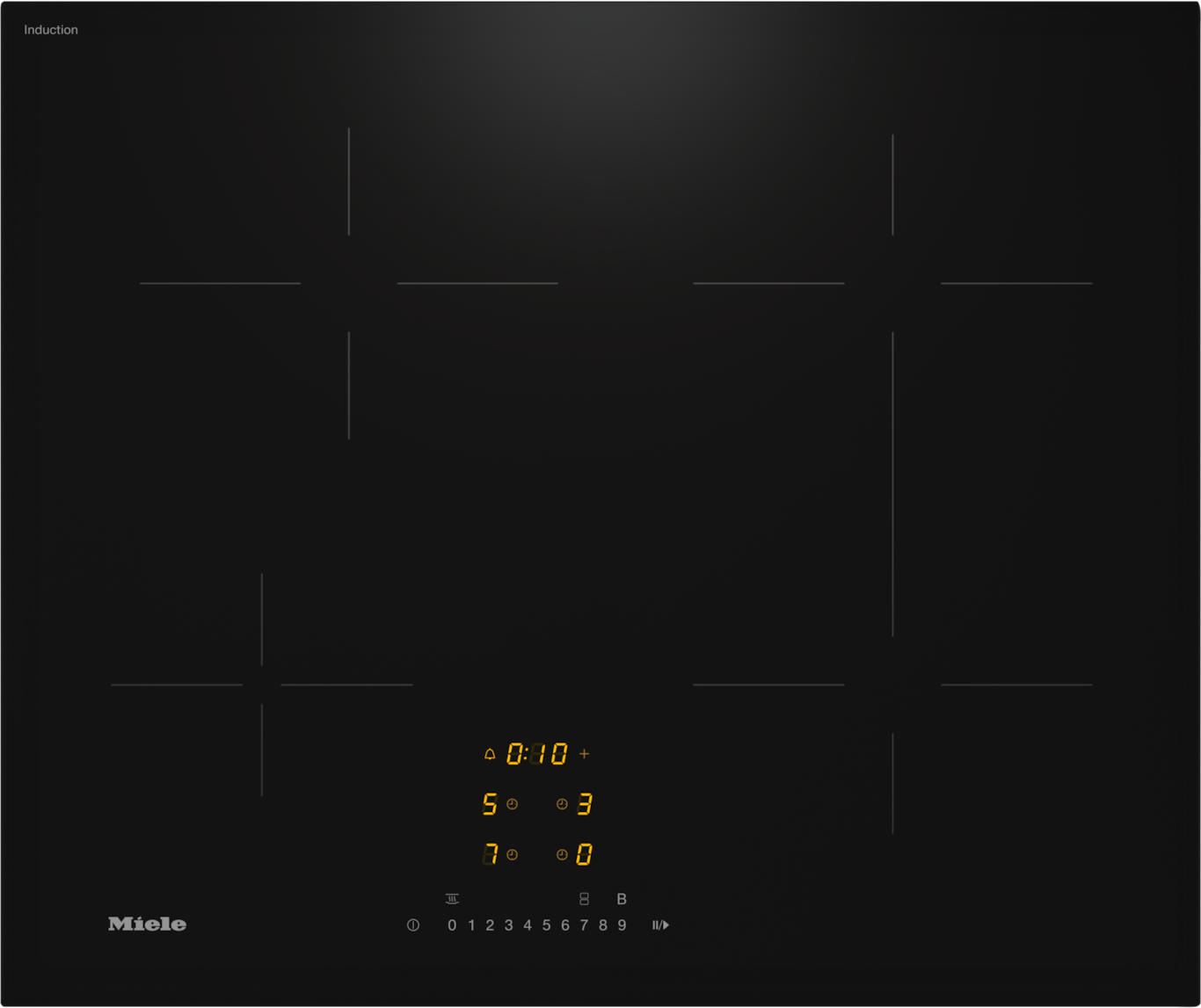

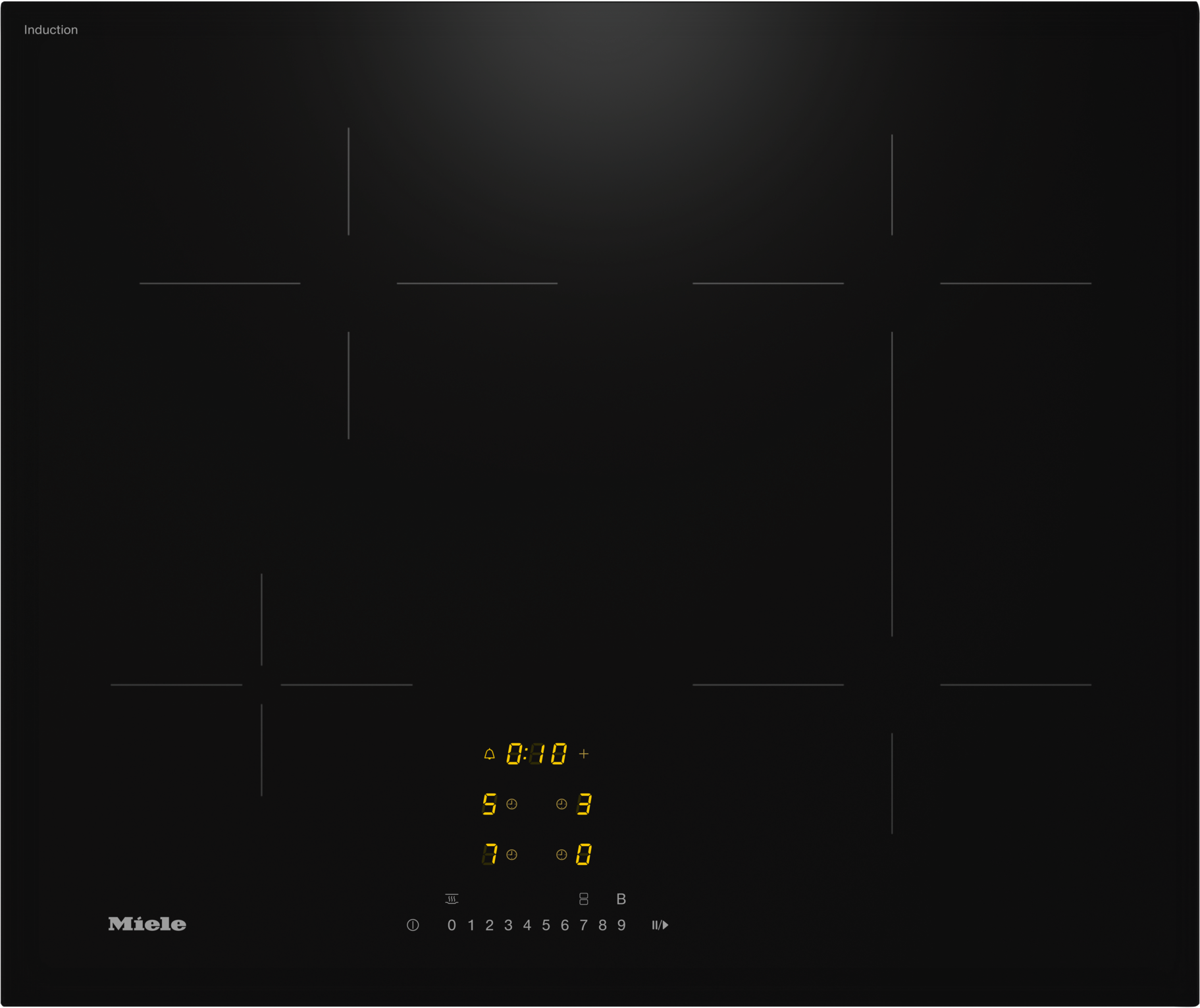

Induction hob with onset controls

KM 7363 FL

Name: KM 7363 FL
Brand: Miele
SKU: 12399720
Price: 1149.99 EUR
Availability: OutOfStock

with flex cooking area for large cookware

Product data sheet

€1,149.99

A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.

Retail price includes 23% VAT.

Product details

Quick selection via numerical keybank – ComfortSelect
4 cooking zones incl. 1 flex cooking area
A width of 620 mm for surface-mounted or flush-fit installation
Communication with the hood – automaticCon@ctivityfunction
Convenient use of large cookware items thanks to combinableFlex cooking zones [object Object] [object Object]

Product data sheet

Heating typeInduction

Independent of cooker

Elegant glass ceramic surface

Ceramic surface colourBlack

Flush

Surface-mounted installation

Number of cooking zones4

Number of cooking areas1

Maximum number of pans4

No.2

TypeFlex cooking zone

Size in mmØ 110-210

Max. rating in W2100

Max. Booster power rating in W3000

Positionfront left

TypeDual-circuit ring

Size in mmØ 90-160

Max. rating in W1350

Max. Booster power rating in W1850

Positionrear left

TypeDual-circuit ring

Size in mmØ 110-220

Max. rating in W2300

Max. Booster power rating in W3000

Positionright

TypeFlex cooking zone

Size in mm210x400

Max. rating in W3000

Max. Booster power rating in W3650

Networking with Miele@home

Automatic function Con@ctivity

Operation via sensor controlsComfortSelect

Display colourYellow

Permanent pan recognition

Pan and pan size recognition

Stop & Go function

Recall function

Minute minder

Safety switch-off

Auto heat-up

Keeping warm

Individual setting options (e.g. buzzers)

Residual heat utilisation

Power rating in off mode in W0.50

Power rating in standby mode in W1

Power rating in networked standby in W2

Time until automatic switch to off mode in min20

Time until automatic switch to standby in min20

Time until automatic switch to networked standby in min20

Easy to clean ceramic glass

Safety switch-off

Lock function

System lock

Integrated cooling fan

Overheating protection

Residual heat indicator

Dimensions in mm (width)620

Dimensions in mm (height)53

Casing height incl. connection box in mm53

Dimensions in mm (depth)520

Cutout dimensions in mm (width) with surface-mounted installation600

Cutout dimensions in mm (depth) with surface-mounted installation490

Internal cutout dimensions in mm (width) with flush installation600

Internal cutout dimensions in mm (depth) with flush installation500

External cutout dimensions in mm (width) with flush installation624

External cutout dimensions in mm (depth) with flush installation524

Weight in kg9

Total rated load in kW7.30

Voltage in V230

Frequency in Hz50.00-60.00

Length of supply lead in m1.40

Mains cable

EAN4002516732808

What's included

Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

Safety

Setup/function

Matching products and accessories

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

MicroCloth HyClean, 1 cloth

Antibacterial multi-purpose cloth for improved hygiene.

GGRP

Gourmet griddle plate

For a unique grilling experience on Miele induction hobs

KMTY

Tepan Yaki

for a unique cooking experience on Miele induction hobs

HUB 5001-M

Induction compatible gourmet oven dish

For frying, braising and gratinating.

HUB 62-22

Induction compatible gourmet oven dish

For frying, braising and gratinating.

Silicone feet

to ensure that the Gourmet griddle plate is secure on the induction hob

KMTS 5704-2

Fiskars “All Steel” starter pan set (4 pieces)

stainless steel cookware with a matt brushed finish exclusively for Miele.

Downloads

Operating instructions/Installation instructions

PDF

Downloads

Operating instructions/Installation instructions

PDF

Downloads

Warranty conditions

PDF

Downloads

EU declaration of conformity

PDF

Downloads

Product sheet

PDF

Downloads

dwg

ZIP

Downloads

fbx

ZIP

Downloads

ifc

ZIP

Downloads

rfa

ZIP

Downloads

rvt

ZIP

Downloads

Product fiche

PDF

Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000019/200001966/20000196674.png

Descriptions

KM7363FL surface-mounted (*Fußnote) (Installation drawing)

1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loose

Downloads

https://media.miele.com/images/2000019/200001966/20000196675.png

Descriptions

KM7363FL flush (*Fußnote) (Installation drawing)

1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loosely, 3) Step milling natural stone worktop, 4) Wooden strip 12 mm (no supplied accessories)
