Miele - CSDA 7001 FL Black – Hobs

Free delivery available on all orders over €100 | Klarna available at checkout.

Home
Hobs
SmartLine
CSDA 7001 FL

01 / 03

Colour:Black

Product data sheet

€1,899.99

¹

A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.

Product details

Intuitive quick selection via number sequences –
Smart Select
Elegant design – for flush or raised installation
Seamlessly integrates with any
SmartLine element
Efficient filtration-
10-ply stainless-steel grease filter
Energy-efficient and quiet - powerful
ECO motor
View manufacturer details:
Safety information

Product data sheet

Model identifier: CSDA 7001 FL
Manufacturer material number: 11402230
EAN number: 4002516304906
Marketing class: Platinum

Downdraft extractor

Type of air guide: Can be retrofitted
Recirculation conversion kit (order separately): DUU 1000-2
Flat ducting components (order separately): DFK- xxxx

Flush
Frameless – surface-mounted

Operation via sensor controls: SmartSelect
Digital power level display
Display colour: Yellow
Run-on time 5 min.

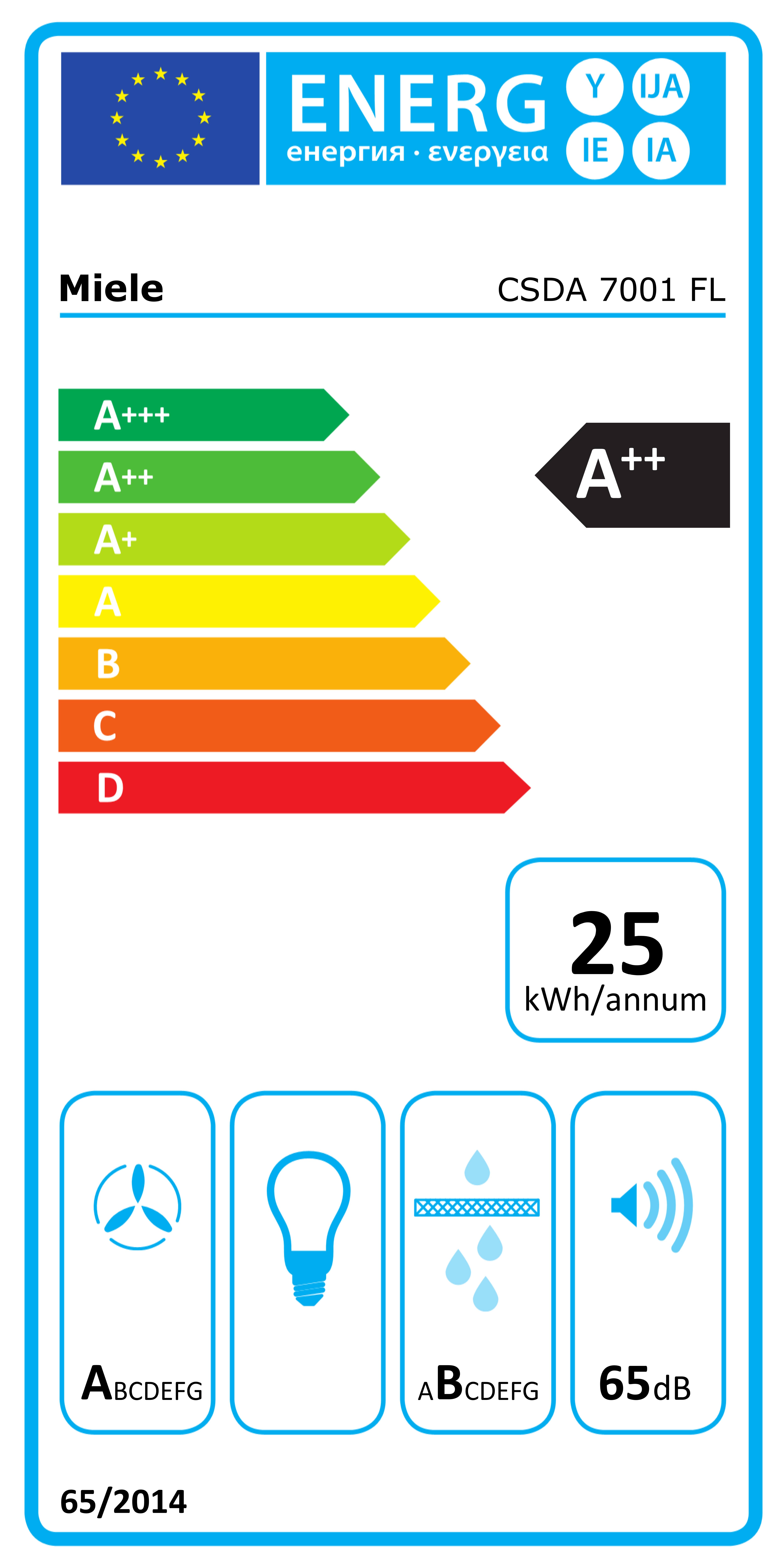

Energy efficiency class (A+++ to D): A++
Annual energy consumption in kWh/year: 25.3
Fluid dynamic efficiency class: A
Grease filtering efficiency class: B

Easy to clean ceramic glass
Easy-to-clean canopy interior – CleanCover

Number of dishwasher safe stainless-steel grease filters (10-ply): 1

Air throughput in Level 1 (m³/h) according to EN 61591: 150
Air throughput in Level 2 (m³/h) according to EN 61591: 290
Air throughput in Level 3 (m³/h) according to EN 61591: 440
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 58
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 29
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 43
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 51
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13: 55

Air throughput in Level 1 (m³/h) according to EN 61591: 100
Air throughput in Level 2 (m³/h) according to EN 61591: 235
Air throughput in Level 3 (m³/h) according to EN 61591: 380
Air throughput in Booster level (m³/h) according to EN 61591: 460
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 49
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 63
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3: 73
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3: 78
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 49
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 58
Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13: 63
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 34

Safety switch-off
FlameGuard

Dimensions (W x D) in mm: 222<NBSP/>x<NBSP/>89
Dimensions in mm (width): 120
Dimensions in mm (height): 168
Dimensions in mm (depth): 520
Casing height incl. connection box in mm: 168
Cutout dimensions in mm (width) with surface-mounted installation: 100 mm
Cutout dimensions in mm (depth) with surface-mounted installation: 500 mm
Inner cut-out dimensions in mm (width) with flush installation: 100
Inner cut-out dimensions in mm (depth) with flush installation: 500
Outer cut-out dimensions in mm (width) with flush installation: 124
Outer cut-out dimensions in mm (depth) with flush installation: 524
Weight in kg: 11
Total rated load in kW: 0.170
Voltage in V: 230
Fuse rating in A: 10
Number of phases: 1
Length of supply lead in m: 2

Plinth fan with vent connection
Extraction connection at rear and side
Dimensions of the exhaust ducting connector in mm: 222
Dimensions of the exhaust ducting connector in mm: 89

Ducting system to the plinth fan
Ducting system to the plinth fan

EAN: 4002516304906

What's included

Ducting system to the plinth fan
Ducting system to the plinth fan

Matching products and accessories

Flat ducting adapter

Flat ducting adapter

For effective and customised air guidance.

Flat ducting set for recirculation for KMDA 7476 / 7633 / 7634

Flat ducting set for recirculation for KMDA 7476 / 7633 / 7634

For hygienic and customised air guidance in recirculation mode.

Flat ducting set for extraction mode (incl. wall vent)

Flat ducting set for extraction mode (incl. wall vent)

For customised air guidance in extraction mode.

Flat ducting set for KMDA 7476 / 7633 / 7634

Flat ducting set for KMDA 7476 / 7633 / 7634

For customised air guidance in extraction mode.

Spacer strip

for installing several SmartLine elements in one single cut-out.

Flat ducting

For effective and customised air guidance.

Flat ducting adapter

Flat ducting adapter

For effective and customised air guidance.

Flat ducting set for recirculation for KMDA 7476 / 7633 / 7634

Flat ducting set for recirculation for KMDA 7476 / 7633 / 7634

For hygienic and customised air guidance in recirculation mode.

Longlife reactivatable AirClean charcoal filter

Longlife reactivatable AirClean charcoal filter

prevents unpleasant odours in the kitchen.

Flat ducting bend

Flat ducting bend

For effective and customised air guidance.

Flat ducting set for extraction mode (incl. wall vent)

Flat ducting set for extraction mode (incl. wall vent)

For customised air guidance in extraction mode.

iittala cookware, set of 4 pans

iittala cookware, set of 4 pans

from the "All Steel" range by Harri Koskinen, satin finish exclusively f. Miele.

Sealing tape

For the Miele DFK flat ducting system

Flat ducting adapter

Flat ducting adapter

For effective and customised air guidance.

MicroCloth kit, 3 pieces

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

Downloads

Operating instructions/Installation instructions

PDF

Product sheet

PDF

Warranty conditions

PDF

dwg

ZIP

fbx

ZIP

ifc

ZIP

rfa

ZIP

rvt

ZIP

Energy label

PDF

Energy label

PNG

Product fiche

PDF

Energy label

PDF

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000013/200001326/20000132666.png

Descriptions

CS 7000 FL (Installation drawing)

CS 7000 FL (Installation drawing)

POSTSCRIPT

https://media.miele.com/images/2000013/200001326/20000132669.png

Descriptions

CS 7000 FL, flush (Installation drawing)

*7+0,5 = CS7611 (Wok)

POSTSCRIPT

https://media.miele.com/images/2000013/200001331/20000133104.png

Descriptions

CSDA 7001 - flush (Installation drawing)

1) front, 2) Fan (in the plinth lying on the floor), 3) Stepped cut-out, 4) 12 mm wooden panel (not supplied as standard), 5) Air duct, 6) E-box

POSTSCRIPT

https://media.miele.com/images/2000013/200001331/20000133106.png

Descriptions

CSDA 7001 - supported installation (Skizze)

1) front, 2) Fan (in the plinth lying on the floor), 3) Air duct, 4) E-Box,

POSTSCRIPT

https://media.miele.com/images/2000013/200001332/20000133200.png

Descriptions

Plinth blower for CSDA 7001 (Installation drawing)

Plinth blower for CSDA 7001 (Installation drawing)

POSTSCRIPT
