Wall mounted cooker hoodPlatinum

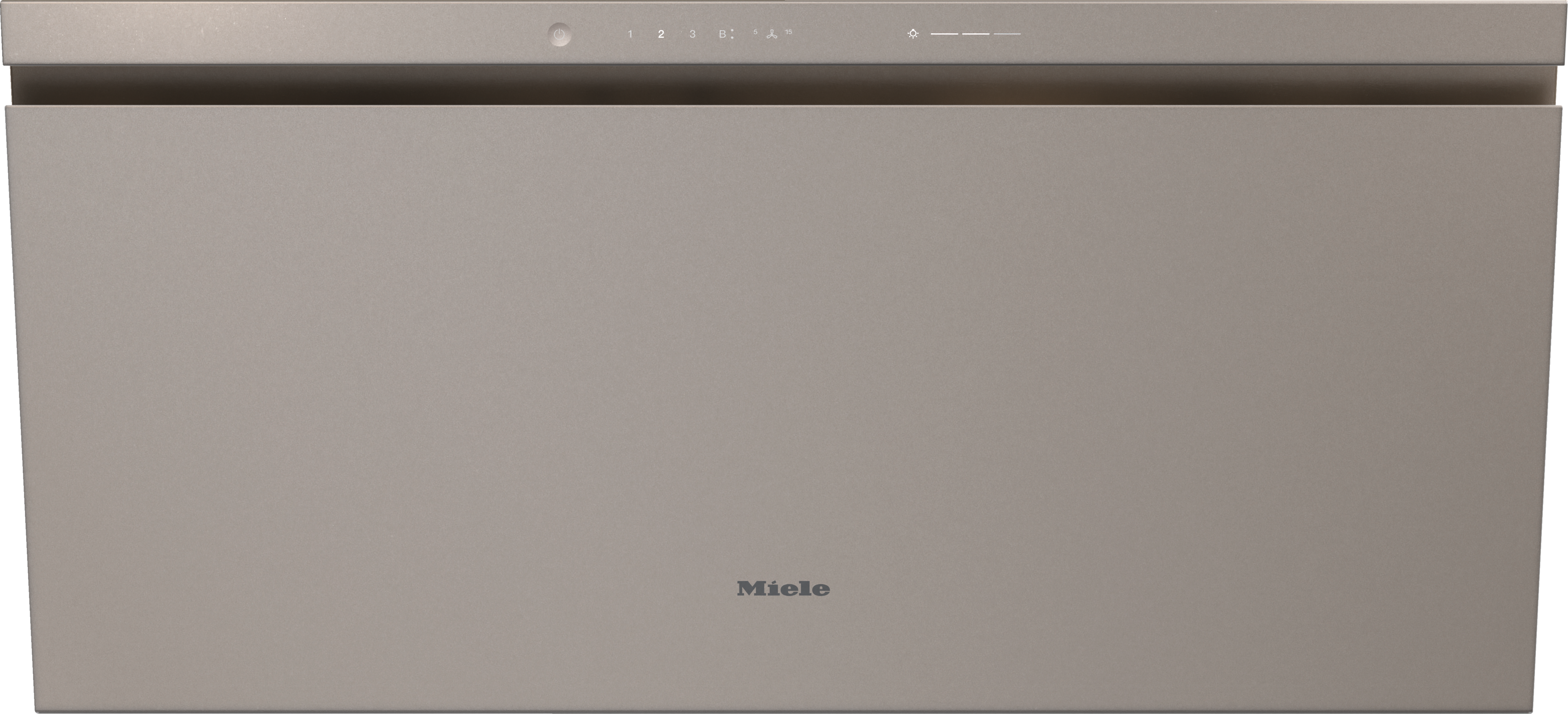

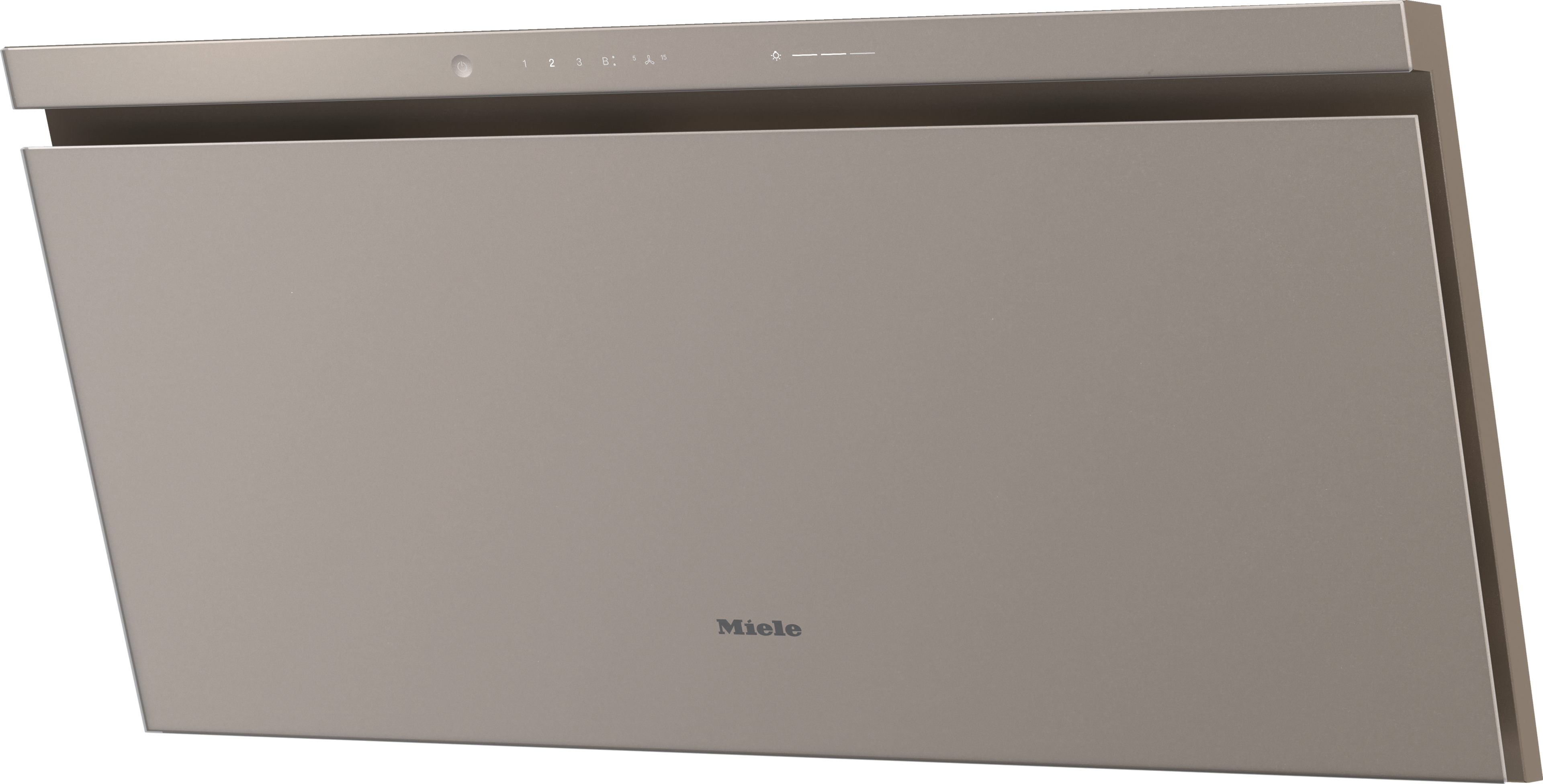

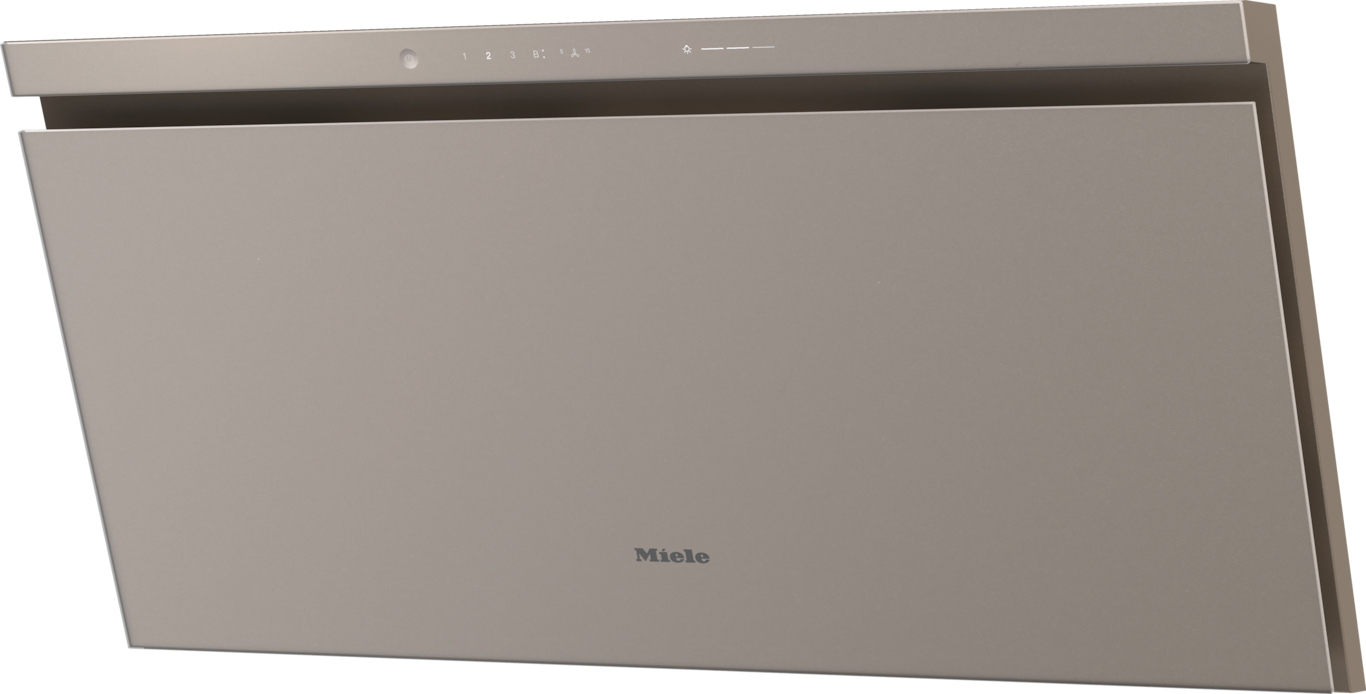

DAH 4980 Sienna Pearl beige

With particularly low noise levels and elegant pearl beige glass panel
Colour:Pearl beige
sale price€2,099.99
12
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.


Product details

  • The quietest Miele angled cooker hood with only 50 dB3,
  • Networking with Con@ctivity and
    Miele@home
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Lots of headroom – with front panel, 898 mm wide
  • Perfect match – glass panel and canopy in the same colour
  • View manufacturer details:
  • You will find more information about product data and your rights under the EU Data Acthere
  • Safety information

Product data sheet

Model identifier
DAH 4980 Sienna
Manufacturer material number
12801700
EAN number
4002516901587
Marketing class
Platinum
Wall mounted cooker hood
Type of air guide
Can be retrofitted
Active charcoal filter (order separately)
DKF 29
Colour
Pearl beige
Edge extraction
Miele@home
Con@ctivity
Personalised
Electronic controls
SmartControl White
Controls
SmartControl White
ON/OFF switch
Power levels (number without Booster level)
3
Booster levels
2
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
Silence package
Easy-to-clean canopy interior – CleanCover
DynamicWhite
Alexa voice control
Google voice control
AutoRefresh
Push notifications
RemoteUpdate
Smart Home Integration
Energy efficiency class (A+++ to D)
A++
Annual energy consumption in kWh/year
28.2
Fluid dynamic efficiency class
A
Lighting efficiency class
A
Grease filtering efficiency class
D
PowerManagement system
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)
2
Number x W
1 x 3,2 W
Light intensity in Lx
260 lx
Colour temperature in K
3500 Kelvin
Dimmer function
Dual-action blower
DC motor
Air throughput in Level 1 (m³/h) according to EN 61591
215
Air throughput in Level 2 (m³/h) according to EN 61591
315
Air throughput in Level 3 (m³/h) according to EN 61591
415
Air throughput in Booster level 1 (m³/h) according to EN 61591
660
Air throughput in Booster level 2 (m³/h) according to EN 61591
875
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
38
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
45
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
50
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
61
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3
68
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
24
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
31
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
36
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
47
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13
54
Air throughput in Level 1 (m³/h) according to EN 61591
175
Air throughput in Level 2 (m³/h) according to EN 61591
275
Air throughput in Level 3 (m³/h) according to EN 61591
430
Air throughput in Booster level 1 (m³/h) according to EN 61591
625
Air throughput in Booster level 2 (m³/h) according to EN 61591
720
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
46
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
53
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
73
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3
76
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
32
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
39
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
50
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
59
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13
62
Safety shut-off
Single-ply safety glass (ESG)
Canopy dimensions (W x H x D) in mm
898 x 420 x 381
Overall height for vented and external in in. (mm)
830
Overall height for extraction mode and external mode cooker hoods in mm
1210
Overall height for recirculation in in. (mm)
420
Overall height for recirculation mode cooker hoods in mm
420
Canopy width in in. (mm)
898
Canopy height in in. (mm)
420
Depth of hood canopy in in. (mm)
381
Minimum height above electric hobs in mm
450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
18
Length of supply lead in m
1.3
Standard plug fitted
Total rated load in kW
0.223
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm
150
Non-return flap
EAN
4002516901587

What's included

Non-return flap
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • More convenience when cooking
    More convenience when cooking

    Con@ctivity

    The cooker hood reacts automatically to the hob and the oven.

  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Performance and convenience as standard
    Performance and convenience as standard

    Silence

    Efficient and quiet: the fan is effectively insulated with special soundproofing mats.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

  • Decorative panels instead of metal grease filters
    Decorative panels instead of metal grease filters

    Edge extraction

    Efficient and beautiful: With edge extraction grease filters are concealed by a stainless steel or glass panel.

  • Elegant touch controls
    Elegant touch controls

    SmartControl

    High-quality and functional: enjoy convenient touch controls with a yellow display and dimmer function.

Safety

Always on the safe side
Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Performance and convenience as standard
Performance and convenience as standard

Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Decorative panels instead of metal grease filters
Decorative panels instead of metal grease filters

Edge extraction

Efficient and beautiful: With edge extraction grease filters are concealed by a stainless steel or glass panel.

User convenience

More convenience when cooking
More convenience when cooking

Con@ctivity

The cooker hood reacts automatically to the hob and the oven.
Automatic fan run-on
Automatic fan run-on

Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Countdown time conveniently in view
Countdown time conveniently in view

Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Elegant touch controls
Elegant touch controls

SmartControl

High-quality and functional: enjoy convenient touch controls with a yellow display and dimmer function.

Smart Extras

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate4,

    Bringing new functions directly to your appliance.

  • A fresh indoor climate at all times
    A fresh indoor climate at all times

    AutoRefresh4,

    Unpleasant odours are removed from the room air at adjustable intervals.

  • Perfect harmonisation of light sources
    Perfect harmonisation of light sources

    DynamicWhite4,

    Infinitely variable colour temperature control via the Miele app.

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications4,

    Receive relevant information directly on your smartphone or tablet.

  • A spark of magic for the kitchen
    A spark of magic for the kitchen

    Voice control4, 5,

    Convenient operation via voice control.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration4,

    Intelligent integration of Miele appliances into a Smart Home system.

Downloads

EU declaration of conformity
PDF
Download
Installation plan
PDF
Download
Operating instructions/Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
Energy label
PDF
Download
Energy label
PNG
Download
Energy label
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000020/200002057/20000205753.png
Descriptions
DAH4970, DAH4980 Installation drawings
1) Break-through if the mains connection is not made with a mains plug, but with a fixed connection., 2) Exhaust air opening ø 200 mm, so that the exhaust air line can be moved in the wall. Exhaust air connection ø 150 mm to the top or alternatively to the rear., 3) Air outlet for recirculated air. The distance to the ceiling or furniture mounted above the unit should be at least 300 mm.
POSTSCRIPT
Download
  • 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
  • 2.Retail price includes 23% VAT.
  • 3.with extraction mode, Level 3 (dB(A) re 1 pW) according to EN 60704-3
  • 4.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • 5.Voice control uses the Google LLC and Amazon Alexa services and is based on their availability. The range of functions can vary depending on the country. Google, Google Home and Google Nest Mini are trademarks of Google LLC. Google Nest Mini requires WiFi, an internet connection, a nearby power socket, a Google account and a compatible mobile device. Minimum requirements for the operating system can be found at: g.co/home/req. Compatible with Alexa. Amazon, Alexa and all associated trademarks are trademarks of Amazon.com, Inc. or their affiliated companies.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
