Gas hobPLATINUM
KM 2354
in maximum width for the ultimate in cooking and user convenience.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.
You can select the following services for this product in your basket:
- Recycle Old Appliance (€0.00)
Product details
- Simple controls -single-handed operation via rotary dial control

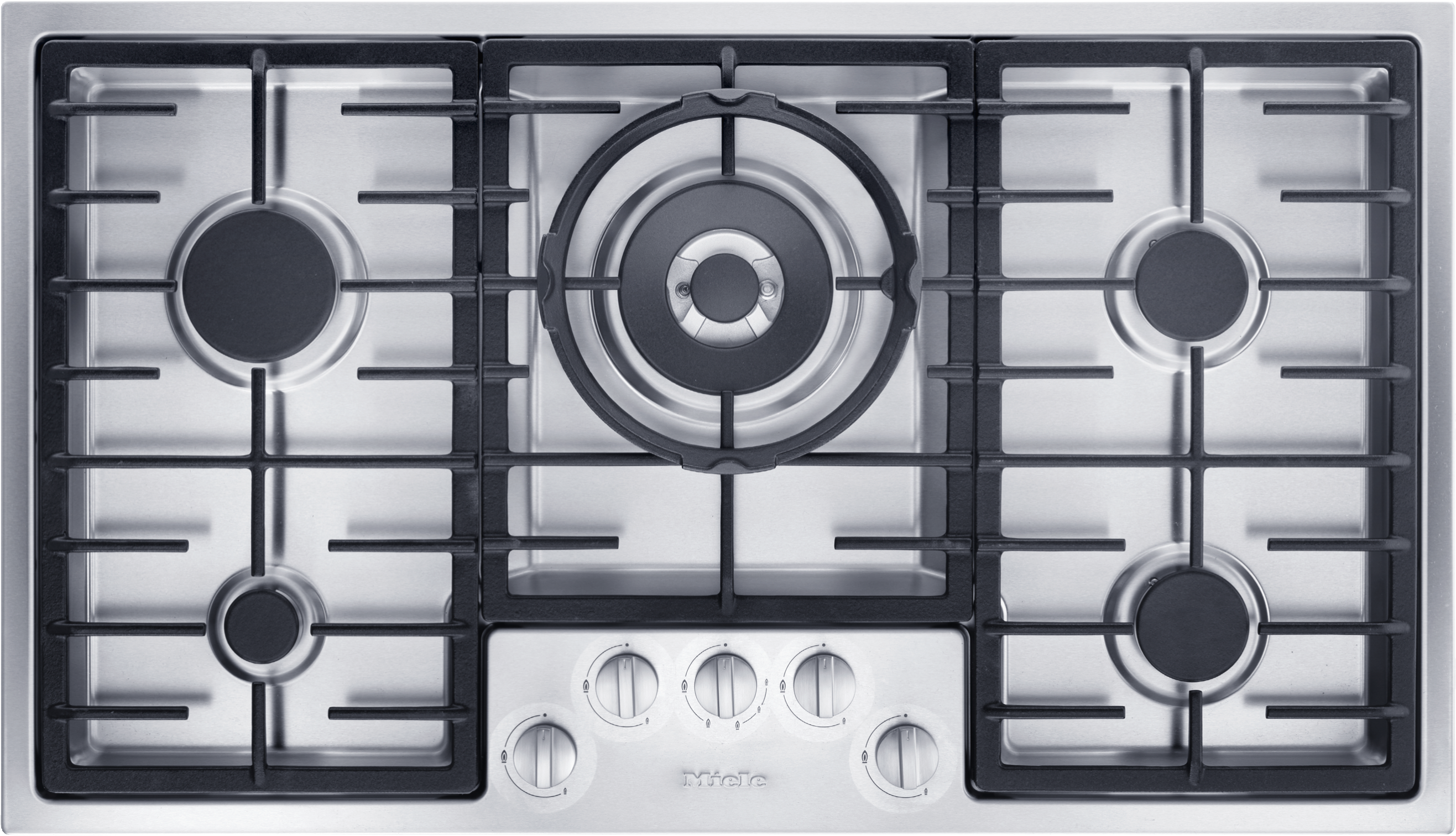

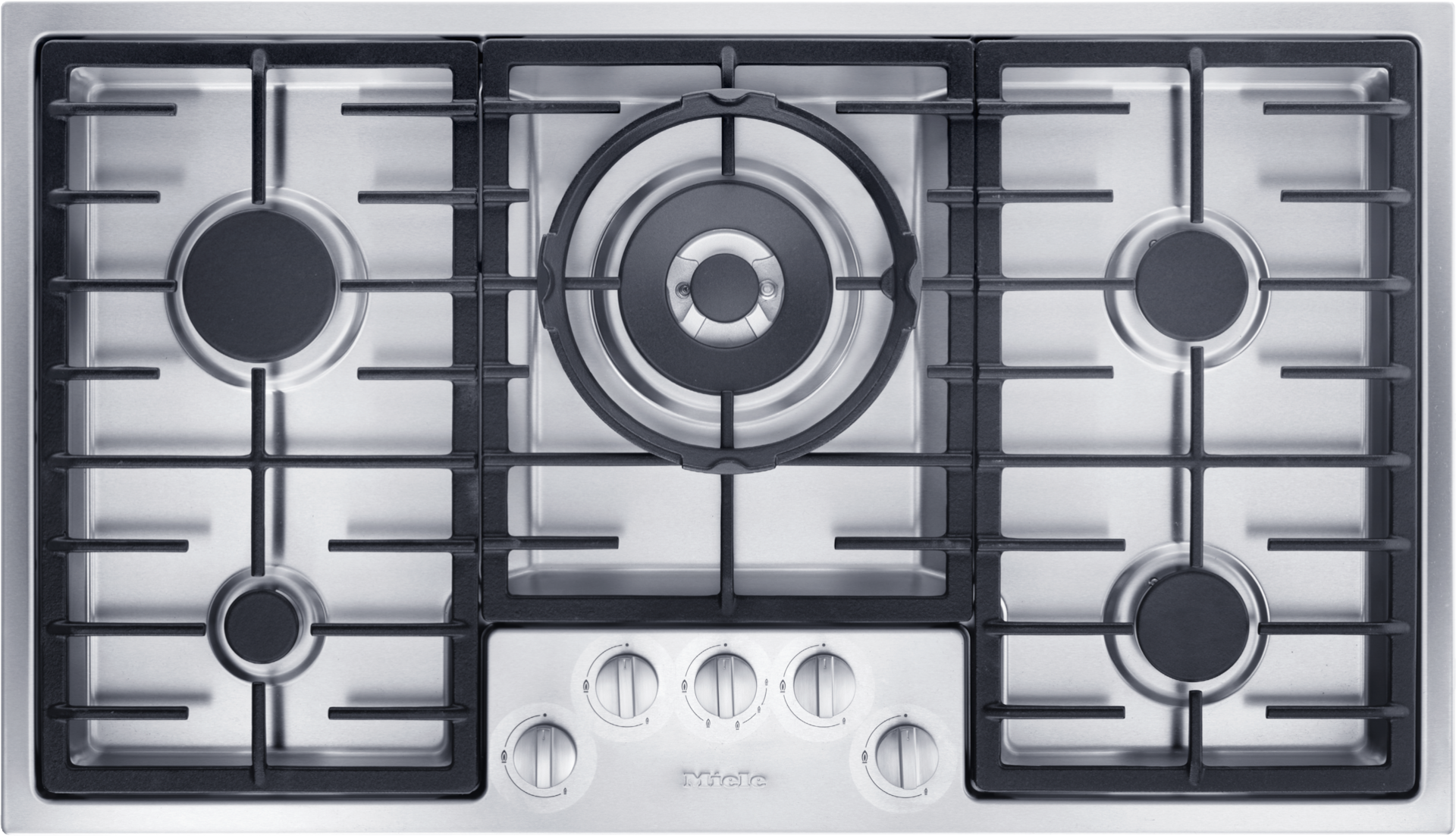

- Modern design - 888 mm wide, flat-fit stainless-steel trough
- Particularly versatile - 5 burners incl. 1 dual wok
- Extremely safe -GasStop functionLoading...
- Easy cleaning - dishwasher-safe ComfortClean pot rests
- View manufacturer details:
- Safety information
Model identifier KM 2354
Manufacturer material number 09289880
EAN number 4002515169032
Marketing class Platinum
Loading...
Heating type Gas
Independent of cooker
Cast iron pot rests (matt black enamelled)
Loading...
Miele logo embossed in stainless steel
Number of cooking zones 5
Small burner in kW 1
Medium burner in kW 1.70
Large burner in kW 2.70
Dual wok burner in kW 4.50
Position front left
Type Economy burner
Position rear left
Type High-speed burner
Position Centred
Type Dual wok burner
Position rear right
Type Standard burner
Position front right
Type Standard burner
Operation via knobs
Electronic ignition with single-hand operation
Loading...
Dishwasher-proof pot rests
Loading...
GasStop
Loading...
Dimensions (H x W x D) in mm 75 x 888 x 508
Dimensions (W x D) in mm 888 x 75 x 508
Dimensions in mm (width) 888
Dimensions in mm (height) 75
Dimensions in mm (depth) 508
Cut-out dimensions (W x D) with surface-mounted installation in mm 862 mm x 490 mm
Casing height incl. connection box in mm 90
Cutout dimensions in mm (width) with surface-mounted installation 862 mm
Cutout dimensions in mm (depth) with surface-mounted installation 490 mm
Weight in kg 19
Total rated load in kW 11.600
Position of gas connection Hinten links
Voltage in V 220-240
Frequency in Hz 50-60
Length of supply lead in m 1.4
Mains cable
Wok ring
Small trivet
EAN 4002515169032
Mains cable
Wok ring
Small trivet
Efficiently protects and makes cleaning easier
ComfortClean pot rests
Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.
Perfect wok kitchen with gas hobs
Wok burner
Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.
GasStop
Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.Wok burner
Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.
Electronic ignition and single-handed controls
No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
Front knob controls
Easy controls to regulate: Convenient power level control via plastic or metal knobs.ComfortClean pot rests
Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.
Enamelled pot rests and burner parts
Nothing lasts longer and is easier to clean: enamelled cast-iron pot rests and burners with PerfectClean.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
KM 2354 (Skizze)
1. front, 2. Building-in depth, 3. Gas connection R 1/2 - ISO 7-1 (DIN EN 10226), 4. Mains connection box with mains connection cable L = 2000 mm POSTSCRIPT
- 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
- 2.Retail price includes 23% VAT.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
