ProLine element

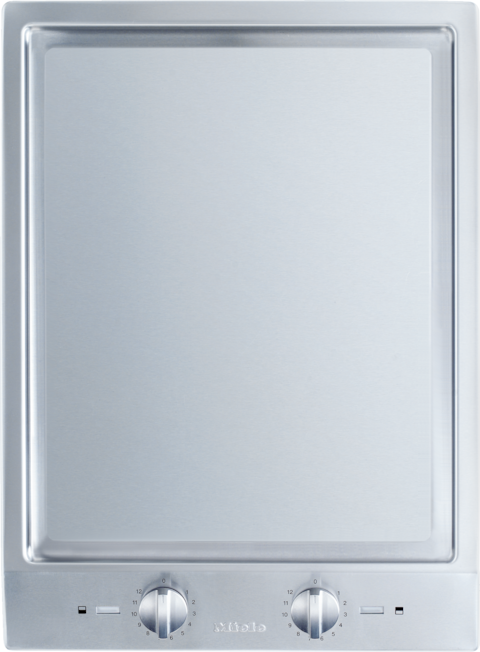

CS 1327 Y Stainless steel

with electrically heated Tepan Yaki

Colour:Stainless steel

sale price€2,649.99
12
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.







Additional services

You can select the following services for this product in your basket:

  • Recycle Old Appliance (€0.00)

Product details

  • Professional design - Stainless steel surface, 380 mm wide
  • Particularly versatile - 2 separately controlled heating areas
  • Particularly versatile - fry, grill, braise, sauté, etc.
  • Easy and direct controls -operation via metal rotary dial control
  • Very convenient, safe - operating and residual heat indicator
  • Manufactured with great care by
  • Safety information

Product data sheet

Heating type Other type of heating
ProLine
Stainless-steel frame
Surface-mounted installation
Position In front
Type Tepan area
Size in mm Ø 190 / 190x290
Max. rating in W 1200
Position Rear
Type Tepan area
Size in mm Ø 190 / 190x290
Max. rating in W 1200
Operation via knobs
Residual heat indicator
Dimensions (W x D) in mm 380 x 118 x 520
Dimensions in mm (width) 380
Dimensions in mm (height) 118
Dimensions in mm (depth) 520
Cut-out dimensions (W x D) with surface-mounted installation in mm 364 mm x 500 mm
Cutout dimensions in mm (width) with surface-mounted installation 364 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Weight in kg 10
Total rated load in kW 2.400-2.600
Voltage in V 230-240
Frequency in Hz 50-60
Length of supply lead in m 2
Mains cable
EAN 4002514997988

What's included

Mains cable

Design

The perfect combination
Stainless-steel frame

Uniform frame design: no matter which ProLine appliances are installed, they always match each other perfectly.


User convenience

Design in detail
Rotary dial controls

Matching convenience: metal rotary dial controls* complement the design style of the ProLine elements.


Ergonomics in detail
Inclined control panel

Perfect looks: The ergonomically arranged control panel simplifies operation.


User-friendliness in detail
Indicators

Safe and effective: The display with up to three types of indicators.


CombiSet appliances leave nothing to be desired
CombiSet – combination

Variety is the programme: The CombiSet programme offers professional appliances for every type of cooking.


Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000007/200000777/20000077707.png
Descriptions
CS 1327 Y (Installation drawing)
1) Front, 2) Height for building in, 3) Mains connection box with cable, 2000 mm long
Downloads
  • 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
  • 2.Retail price includes 23% VAT.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
