ProLine element

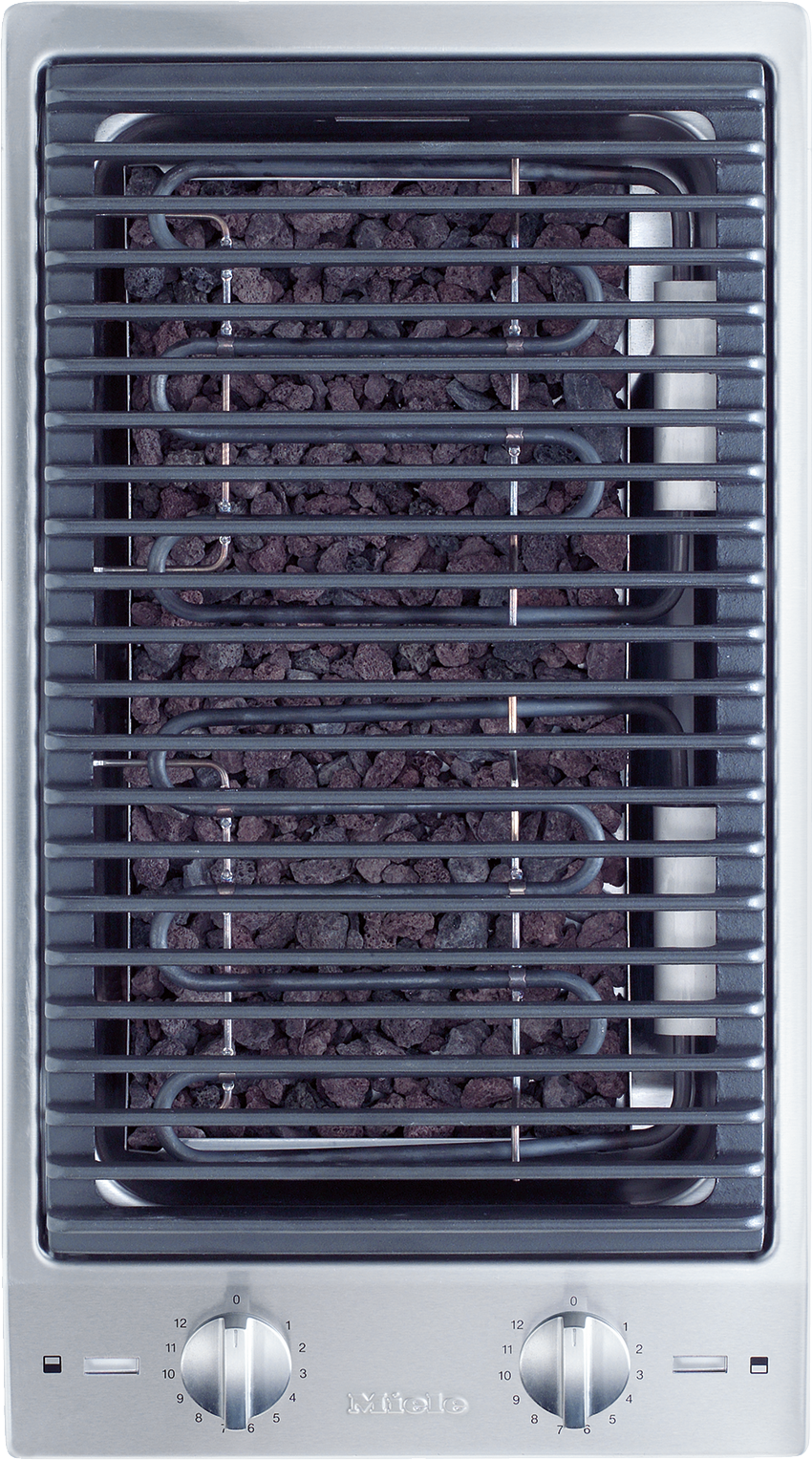

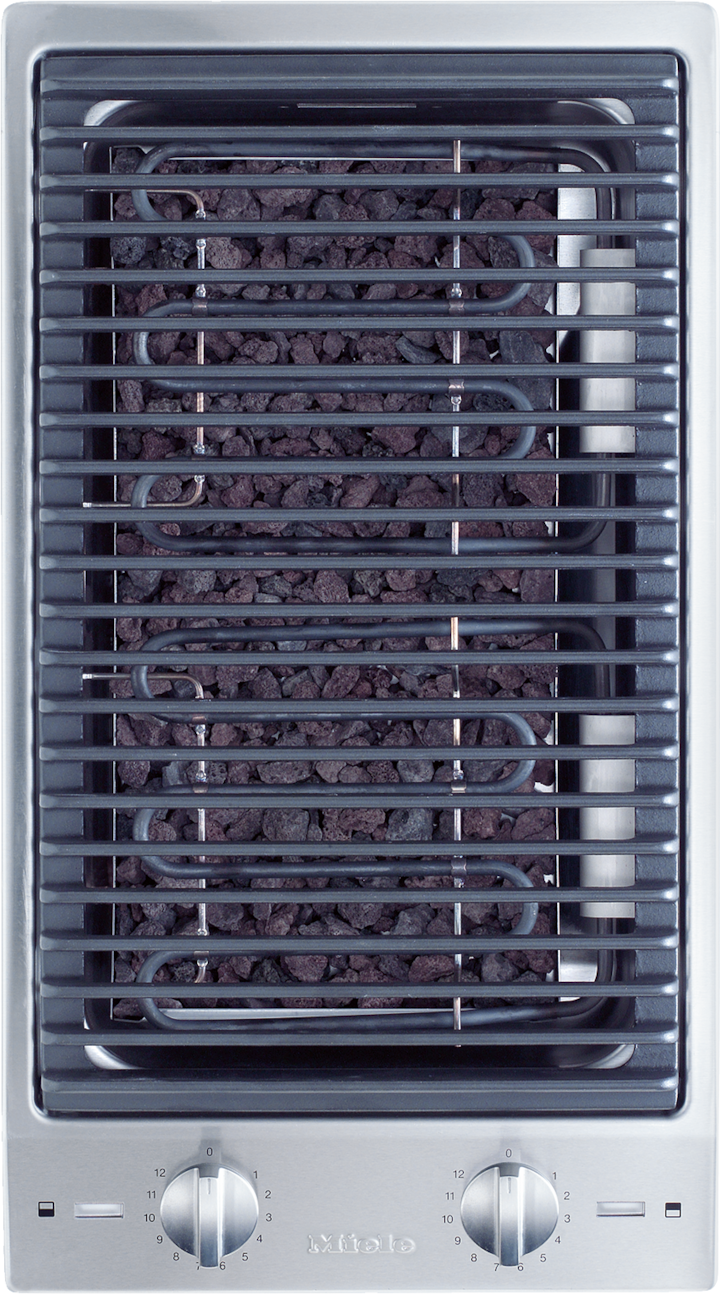

CS 1312 BG Stainless steel

with electrically heated barbecue grill

Colour:Stainless steel

sale price€1,429.99
12
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.







Additional services

You can select the following services for this product in your basket:

  • Recycle Old Appliance (€0.00)

Product details

  • Professional design - Stainless steel trough, 288 mm wide
  • Particularly versatile - 2 separately controlled heating areas
  • Easy and direct controls -operation via metal rotary dial control
  • Particularly convenient and safe - in operation indicator
  • Extensive range - Standard as well as optional accessories
  • Manufactured with great care by
  • Safety information

Product data sheet

Heating type Other type of heating
ProLine
Stainless-steel frame
Surface-mounted installation
Cast-iron griddle
Position In front
Type Electric grill
Size in mm 210x250
Max. rating in W 1500
Position Rear
Type Electric grill
Size in mm 210x250
Max. rating in W 1500
Operation via knobs
Dimensions (W x D) in mm 288 x 115 x 520
Dimensions in mm (width) 288
Dimensions in mm (height) 115
Dimensions in mm (depth) 520
Cut-out dimensions (W x D) with surface-mounted installation in mm 272 mm x 500 mm
Cutout dimensions in mm (width) with surface-mounted installation 272 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Weight in kg 11
Total rated load in kW 3
Voltage in V 230-240
Frequency in Hz 50-60
Length of supply lead in m 2
Mains cable
Lava rocks
Cleaning brush
EAN 4002514413976

What's included

Mains cable
Lava rocks
Cleaning brush

Design

The perfect combination
Stainless-steel frame

Uniform frame design: no matter which ProLine appliances are installed, they always match each other perfectly.


User convenience

Design in detail
Rotary dial controls

Matching convenience: metal rotary dial controls* complement the design style of the ProLine elements.


Ergonomics in detail
Inclined control panel

Perfect looks: The ergonomically arranged control panel simplifies operation.


CombiSet appliances leave nothing to be desired
CombiSet – combination

Variety is the programme: The CombiSet programme offers professional appliances for every type of cooking.


Downloads

Warranty conditions
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
rvt
ZIP
Downloads
rfa
ZIP
Downloads
ifc
ZIP
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000004/200000469/20000046950.png
Descriptions
CS 1312 BG (installation drawing)
Installation note: Allow sufficient space below the electric barbeque for drainage of water into a suitable container. The clearance between the electric barbecue and a , Miele overhead rangehood must be no less than 65 cm. Recirculating rangehood operation above an electric barbecue is not recommended., 1) Front, 2) Height for building in , 3) Mains connection box with cable, 2000 mm long, 4) Drainage valve
Downloads
  • 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
  • 2.Retail price includes 23% VAT.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
