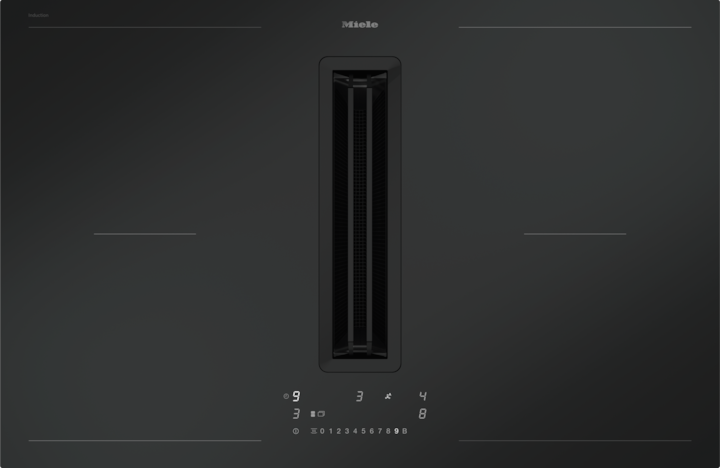

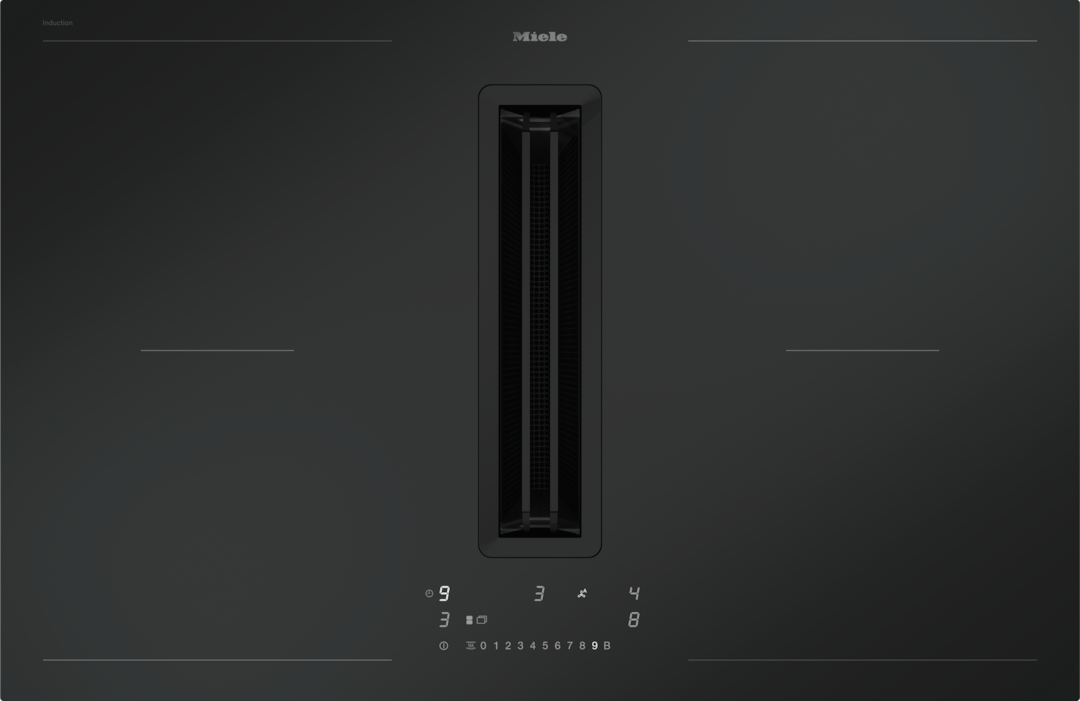

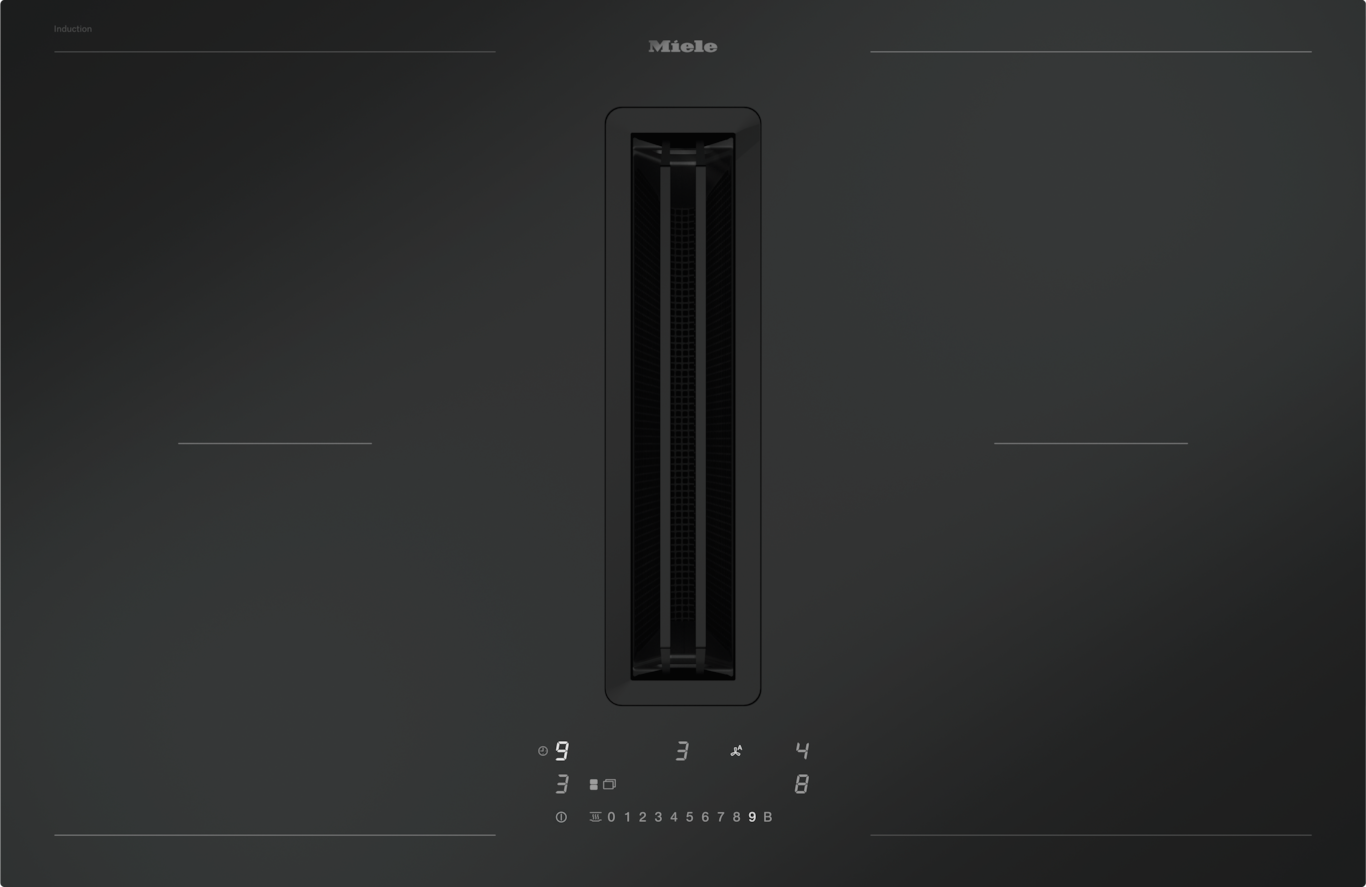

Induction hob with integrated vapour extraction DIAMOND
KMDA 7876-1 FL MattFinish
800 mm | Extraction and recirculation | SilenceMotor | PowerFlex XL cooking area | MattFinishA contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.
You can select the following services for this product in your basket:
- Recycle Old Appliance (€0.00)
Product details
- The quietest TwoInOne from Miele –Silence motorLoading...
- Elegant surface for a unique kitchen design –MattFinishLoading...
- Ample space – 4 large cooking zones incl.2 PowerFlex XL areasLoading...
- Networking with Con@ctivity andMiele@homeLoading...
- Flexible installation – Plug & Play, ducted recirculation or vented system
- View manufacturer details:
- You will find more information about product data and your rights under the EU Data Acthere
- Safety information
Heating type Induction
Induction hob with integrated vapour extraction
Exhaust air guided with optional accessories DFK-xxxx,DMK 150-1
Recirculation air guided with optional accessories DFK-xxxx,DUU 1500,DUU 600
Unguided recirculation air (Plug&Play installation)
Elegant glass ceramic surface
Frameless – surface-mounted
Flush
Ceramic surface colour Matt black
Scratch-resistant surface MattFinish
Anti-fingerprint effect
Flush fit extractor
Colour of cover grille Black
Grease filter colour Black
Number of cooking zones 4
Number of cooking areas 2
Maximum number of pans 4
No. 4
Type PowerFlex XL cooking area
Diameter in mm Ø 150 – 230
Rating in W 2100
Booster in W 3000
TwinBooster in W 3650
Position Left
Type PowerFlex XL cooking area
Size in mm 230x460
Max. rating in W 3400
Max. Booster power rating in W 4800
Max. TwinBooster power rating in W 7300
Position right
Type PowerFlex XL cooking area
Size in mm 230x460
Max. rating in W 3400
Max. Booster power rating in W 4800
Max. TwinBooster power rating in W 7300
Operation via sensor controls ComfortSelect White
Loading...
Display colour White
Miele@home
Con@ctivity
Loading...
Digital power level display
Permanent pan recognition
Loading...
Keeping warm
Stop & Go function
Recall function
Loading...
Minute minder
Safety switch-off
Auto heat-up
Individual setting options (e.g. buzzers)
Loading...
Run-on time 5/15 min.
Active charcoal filter saturation indicator

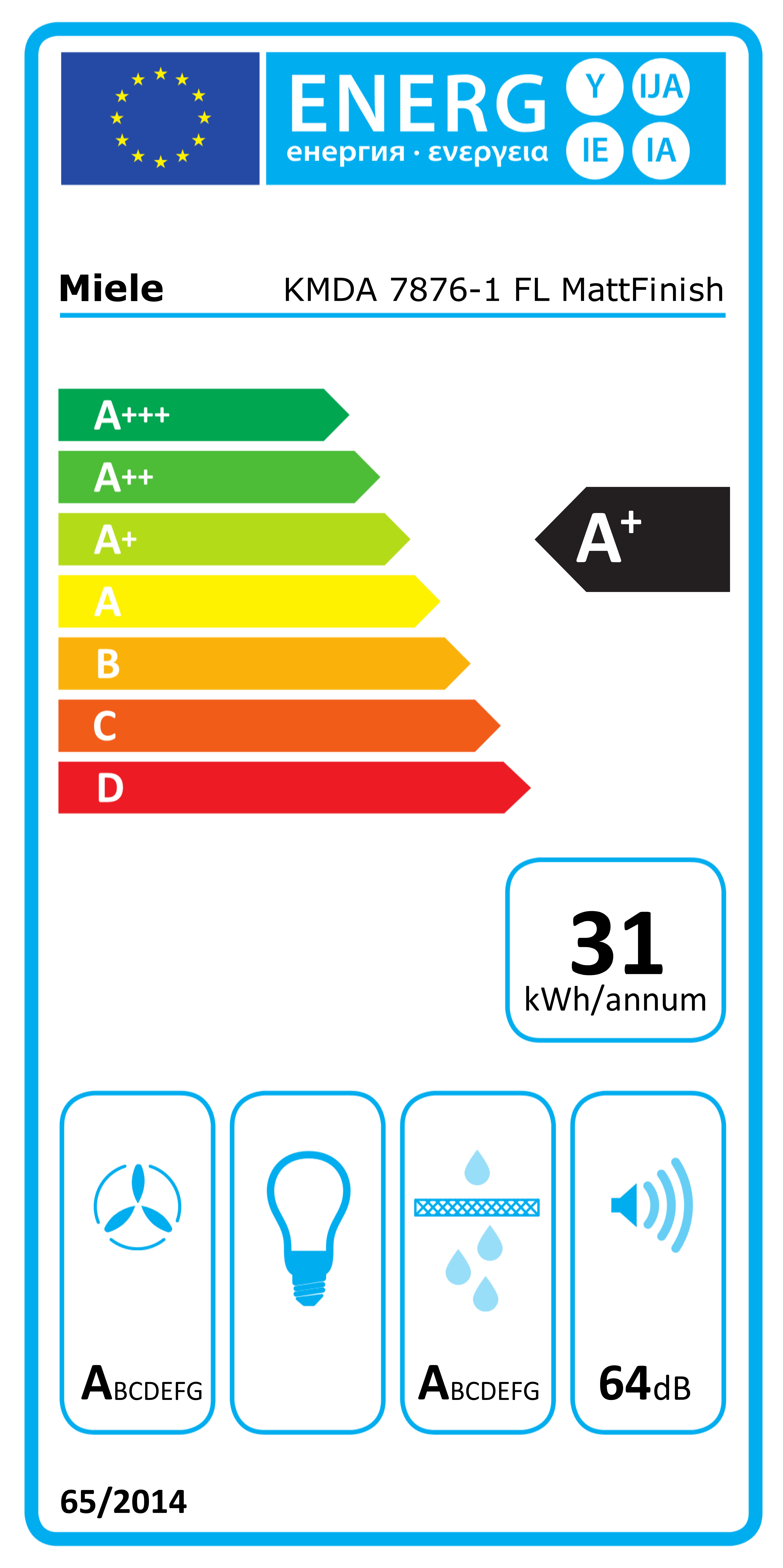

Energy efficiency class (A+++ to D) A+
Annual energy consumption in kWh/year 31.3
Fluid dynamic efficiency class A
Lighting efficiency class NA
Grease filtering efficiency class A
ECO motor
Loading...
Easy to clean ceramic glass
Wipe protection
Easy-to-clean canopy interior – CleanCover
Loading...
Quick cleaning of cooker hood interior
Intensive cleaning of cooker hood interior
Number of dishwasher-safe metal grease filters (10-ply) 1
Air throughput at min. level (m³/h) according to EN 61591 205
Air throughput at max. level (m³/h) according to EN 61591 533
Air throughput in Intensive level (m³/h) according to EN 61591 606
Sound power at min. level (dB(A) re 1 pW) according to EN 60704-3 41
Sound power at max. level (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 68
Sound pressure at min. level (dB(A) re 20 µPa) according to EN 60704-2-13 28
Sound pressure at max. level (dB(A) re 20 µPa) according to EN 60704-2-13 51
Noise pressure level in Intensive level (dB(A) re 20 µPa) according to EN 60704-2-13 54
Air throughput at min. level (m³/h) according to EN 61591 160
Air throughput at max. level (m³/h) according to EN 61591 475
Air throughput in Intensive level (m³/h) according to EN 61591 510
Sound power at min. level (dB(A) re 1 pW) according to EN 60704-3 46
Sound power at max. level (dB(A) re 1 pW) according to EN 60704-3 68
Noise power level in Intensive level (dB(A) re 1 pW) according to EN 60704-3 70
Sound pressure at min. level (dB(A) re 20 µPa) according to EN 60704-2-13 33
Sound pressure at max. level (dB(A) re 20 µPa) according to EN 60704-2-13 55
Noise pressure level in Intensive level (dB(A) re 20 µPa) according to EN 60704-2-13 57
Safety switch-off
Loading...
Lock function
Loading...
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Connection for window contact switch
Dimensions (W x H x D) in mm 800 x 238 x 520
Dimensions in mm (width) 800
Dimensions in mm (height) 238
Dimensions in mm (depth) 520
Casing height incl. connection box in mm 238
Cutout dimensions in mm (width) with surface-mounted installation 780 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Internal cutout dimensions in mm (width) with flush installation 780
Internal cutout dimensions in mm (depth) with flush installation 500
External cutout dimensions in mm (width) with flush installation 804
External cutout dimensions in mm (depth) with flush installation 524
Weight in kg 20
Total rated load in kW 7.500
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.4
Mains cable Yes
Active charcoal filter DKF 35-P
Plug&Play adapter
EAN 4002516974581
Mains cable
Active charcoal filter DKF 35-P
Plug&Play adapter
Easy and elegant operation: white numerical display
ComfortSelect White
Elegant and convenient: conveniently control your Miele hob while enjoying its premium appearance.
Unique design: new surface in elegant matt black
MattFinish
The matt black MattFinish surface reduces fingerprints and is highly resistant to scratches.
Cleverly networked
Domestic appliance networking with Miele@home3,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
State-of-the-art
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Power function for fast heat generation
TwinBooster
Unique level of flexibility: Induction output can be individually distributed or used for one single zone.
Ideal for large pots
PowerFlex XL
Ample space: as the entire depth of the hob can be used, large cookware can be positioned perfectly.
Safety functions
Our safety functions prevent any unwanted surprises.
ECO motor
Powerful and quiet: The DC motor saves up to 70% energy compared with conventional motors.MattFinish
The matt black MattFinish surface reduces fingerprints and is highly resistant to scratches.
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Stainless steel grease filters
Convenient cleaning: The high-quality metal grease filters are dishwasher-proof and extremely durable.
Flush-fit extractor
Flush and elegant: thanks to the discreet design, you can enjoy maximum design freedom in your kitchen.PowerFlex XL
Ample space: as the entire depth of the hob can be used, large cookware can be positioned perfectly.
Convenient additional functions
Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.ComfortSelect White
Elegant and convenient: conveniently control your Miele hob while enjoying its premium appearance.Domestic appliance networking with Miele@home3,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.TwinBooster
Unique level of flexibility: Induction output can be individually distributed or used for one single zone.
Permanent pot recognition
Autom. activation of numerical keybank: When turned on, crockery that has been placed is recognised immediately.What our customers say
Most recent reviews
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation.
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation. POSTSCRIPT
Descriptions
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ② The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm.
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ② The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm. POSTSCRIPT
Descriptions
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation.
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation. POSTSCRIPT
Descriptions
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm.
①The rear wall of the cabinet must be removable for servicing. A minimum distance of 110 mm must be maintained for routing the exhaust air duct between the cabinet wall and an adjacent room wall or furniture., ②The removable collection tray and the cleaning flap must be accessible after installation., , x Dimension by which the worktop depth is greater than 600 mm. POSTSCRIPT
Descriptions
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter POSTSCRIPT
Descriptions
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm.
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm. POSTSCRIPT
Descriptions
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the ventilation opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed., ②The removable collection tray and the cleaning flap must be accessible after installation., ③The cross-section of the ventilation opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter POSTSCRIPT
Descriptions
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm.
①When routing the exhaust air between the cabinet wall and an adjacent room wall or an adjacent piece of furniture, a minimum distance of 25 mm must be observed. If the carcase rear wall is <gt/> 555 mm from the worktop front, the Plug&Play adapter must be extended with a supplementary set from Miele., ②The removable drip tray and the cleaning flap must be accessible after installation., ③The cross-section of the vent opening must be at least 425 cm²., ④Distance from the front of the lower box to the end of the plug & play adapter, , x Dimension by which the worktop depth is greater than 600 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90 POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90 POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1350 mm.
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1350 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum depth of the cabinet is 935 mm.
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum depth of the cabinet is 935 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-V, 5) DUU 1500, , The minimum depth of the cabinet is 935 mm.
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-V, 5) DUU 1500, , The minimum depth of the cabinet is 935 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1 POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DMK 150-1
1) DFK-AK 90, 2) DFK-R 1000, 3) DMK 150-1 POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BH 90, 4) DFK-A, 5) DMK 150-1 POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1125 mm.
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 1125 mm. POSTSCRIPT
Descriptions
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 900 mm.
1) DFK-AK 90, 2) DFK-R 1000, 3) DFK-BV 90, 4) DFK-BH 90, 5) DFK-V, 6) DUU 1500, , The minimum width of the cabinet is 900 mm. POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL - flush, drilling template, Installation depth 23,8 cm
KMDA7676-1FL, KMDA7876-1FL - flush, drilling template, Installation depth 23,8 cm POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL - surface installation, drilling template, 23,8 cm
KMDA7676-1FL, KMDA7876-1FL - surface installation, drilling template, 23,8 cm POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL - surface installation, 24,8 cm, drilling template
KMDA7676-1FL, KMDA7876-1FL - surface installation, 24,8 cm, drilling template POSTSCRIPT
Descriptions
KMDA7676-1FL, KMDA7876-1FL - flush, drilling template, Installation depth 24,8 cm
KMDA7676-1FL, KMDA7876-1FL - flush, drilling template, Installation depth 24,8 cm POSTSCRIPT
