Downdraft extractor systemPLATINUM
DAD 6980 Levantar Ambient Obsidian black
936 mm | 655 m3/h | 62 dB(a) | Touch | Con@ctivity | AmbientLight | ECO motorColour:Obsidian black
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.
Product details
- Easy recirculation mode installation withplug&play accessory setLoading...
- Motorised retractable deflector plate –a href="#img_200233622"Hood in Motion/a
- – individual, coloured lighting for an inviting atmosphere
- Efficient filtration-10-ply stainless-steel grease filterLoading...
- View manufacturer details:
- You will find more information about product data and your rights under the EU Data Acthere
- Safety information
Downdraft extractor
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUU 600,DUP 150
Active charcoal filter (order separately) [
"DKF 30-P",
"DKF 30-R"
]
Colour Obsidian black
Edge extraction
Miele@home
Con@ctivity Personalised
Electronic controls
SmartControl White
Controls SmartControl White
Power levels (number without Booster level) 3
Booster levels 2
Run-on time 5/15 min.
Loading...
Grease filter saturation indicator
Active charcoal filter saturation indicator
Motor-operated cooker hoods
Easy-to-clean canopy interior – CleanCover
Loading...

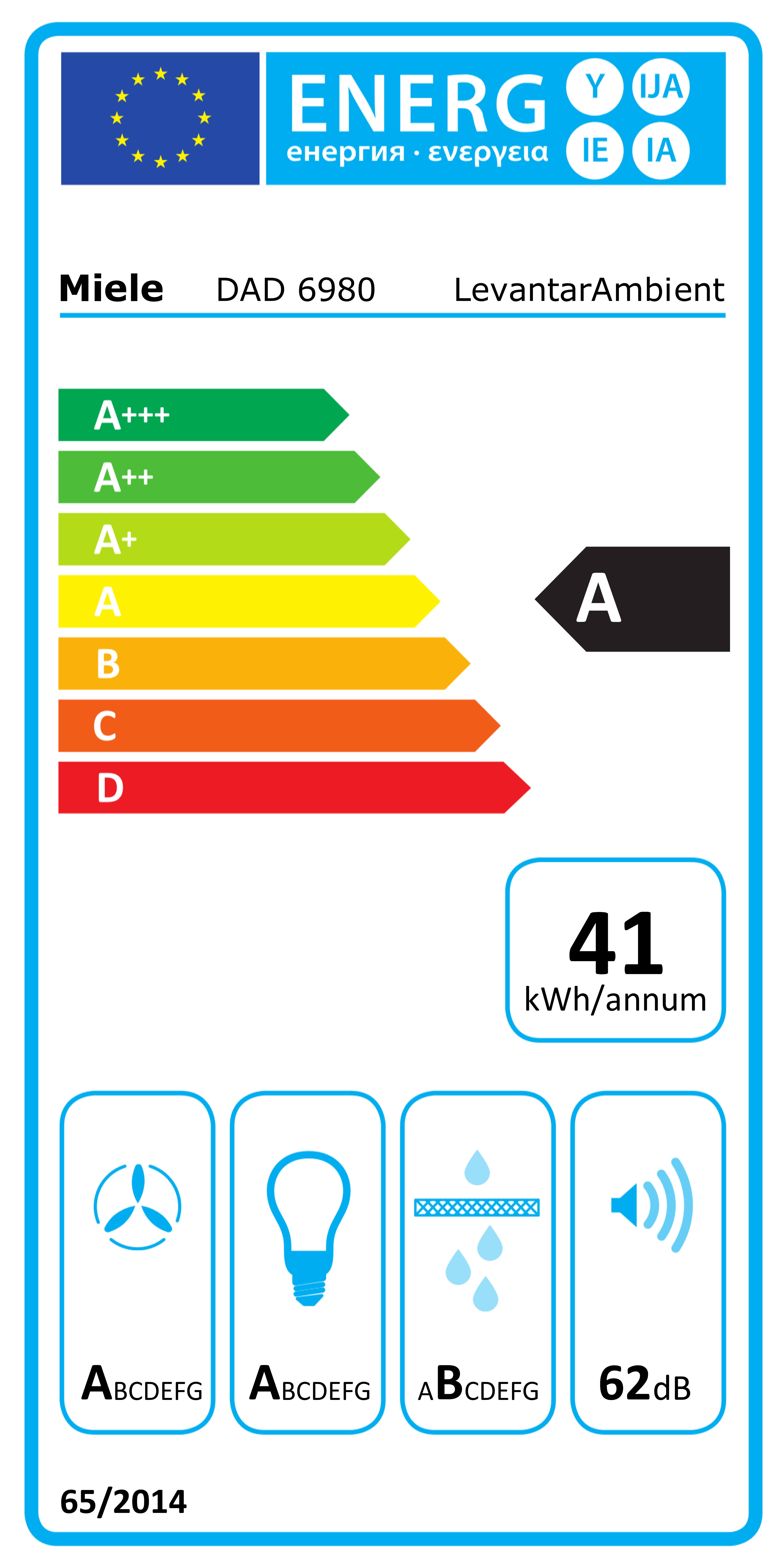

Energy efficiency class (A+++ to D) A
Annual energy consumption in kWh/year 41.1
Fluid dynamic efficiency class A
Loading...
Lighting efficiency class A
Loading...
Grease filtering efficiency class B
Loading...
ECO motor (DC motor)
Loading...
PowerManagement system
Loading...
Easy-to-clean canopy interior – CleanCover
Loading...
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Loading...
Number x W 1x 12W + 1x 8W
Light intensity in Lx 400 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Ambient lighting colour
Loading...
Dual-action blower
DC motor
Loading...
Air throughput in Level 1 (m³/h) according to EN 61591 205
Air throughput in Level 2 (m³/h) according to EN 61591 350
Air throughput in Level 3 (m³/h) according to EN 61591 450
Air throughput in Booster level 1 (m³/h) according to EN 61591 610
Air throughput in Booster level 2 (m³/h) according to EN 61591 655
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 43
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 55
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 62
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 69
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 71
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 42
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 48
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 55
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Air throughput in Level 1 (m³/h) according to EN 61591 165
Air throughput in Level 2 (m³/h) according to EN 61591 320
Air throughput in Level 3 (m³/h) according to EN 61591 420
Air throughput in Booster level 1 (m³/h) according to EN 61591 525
Air throughput in Booster level 2 (m³/h) according to EN 61591 560
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 49
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 63
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 69
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 74
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 75
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 36
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 50
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 55
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 61
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 62
Safety shut-off
Loading...
Single-ply safety glass (ESG)
Canopy dimensions (W x H x D) in mm 936 x 708 x 171
Overall hood height for extraction mode and external in mm 1008–1288
Overall height for recirculation mode cooker hoods in mm 1008–1288
Overall height for vented and external in in. (mm) 1008
Overall height for extraction mode and external mode cooker hoods in mm 1288
Overall height for recirculation in in. (mm) 1008
Overall height for recirculation mode cooker hoods in mm 1288
Canopy width in in. (mm) 936
Cut-out dimension in mm (width) with surface-mounted installation 815
Cut-out dimension in mm (depth) with surface-mounted installation 106
Cut-out dimension in mm (width) with flush-fit installation – internal 815
Cut-out dimension in mm (depth) with flush-fit installation – internal 106
Cut-out dimension in mm (width) with flush-fit installation – external 940
Cut-out dimension in mm (depth) with flush-fit installation – external 124
Canopy height in in. (mm) 708
Depth of hood canopy in in. (mm) 171
Installation on unit floor
Installation on floor
Min. base unit width in mm 900
Glass frame width in mm 936
Net weight in kg 34
Length of supply lead in m 1.3
Standard plug fitted
Total rated load in kW 0.260
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Diameter of extraction ducting connection in mm 150
Optimum combination with hob subject to availability KM 8695 FL
Joint installation with hob in one cut-out
Flush-fit installation
Surface-mounted installation
Bottom exhaust duct
EAN 4002516975106
More convenience when cooking
Con@ctivity
The cooker hood reacts automatically to the hob and the oven.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Elegant touch controls
SmartControl
High-quality and functional: enjoy convenient touch controls with a yellow display and dimmer function.
Always on the safe side
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Decorative panels instead of metal grease filters
Edge extraction
Efficient and beautiful: With edge extraction grease filters are concealed by a stainless steel or glass panel.
A completely odour-free kitchen
Longlife AirClean filter
Efficient odour neutralisation: durable, as the active charcoal filter can be regenerated in the oven.
More convenience when cooking
Con@ctivity
The cooker hood reacts automatically to the hob and the oven.
Automatic fan run-on
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Countdown time conveniently in view
Filter indicator
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Miele cooker hoods in motion
Hood in motion
Best possible ergonomics: The cooker hood canopy automatically moves to the ideal working position.
Elegant touch controls
SmartControl
High-quality and functional: enjoy convenient touch controls with a yellow display and dimmer function.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
DAD4970, DAD6980, Installation drawings
1. Stepped cutout for flush-fit installation in stone worktops (granite, marble)., 2. Ensure that materials are sufficiently stable., 3. Cut-out off-centre., Exhaust duct Ø 150 mm., *Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used. POSTSCRIPT
Descriptions
DAD4370, DAD4870, DAD4970, DAD6880, DAD6980, Installation drawings
Installation drawings POSTSCRIPT
Descriptions
DAD4370, DAD4870, DAD4970, DAD6880, DAD6980, Installation drawings
1. If you install the extractor hood and hob flush with each other in a shared cut-out, you must use the angle strip provided., 2. The minimum dimension is required if flat ducts are installed under the cabinets or if the DUU 600 recirculation box is used. POSTSCRIPT
Descriptions
DAD4370, DAD4970, DAD6980, flush, Installation drawings
Installation of the downdraft hood and cooktop in separate cutouts., Flush installation., 1. Cut-out for exhaust air duct in the cabinet base., 2. Ensure sufficient stability of the worktop., 3. Step milling for flush mounting in a countertop. Note the, the different milling widths for the hob and the downdraft. Instead of a step milling, a wooden strip offset 5.5 mm downwards can be installed as an alternative (not included in the scope of delivery)., , Exhaust air connection ø 150 mm. POSTSCRIPT
Descriptions
DAD4370, DAD4970, DAD6980, overlying, Installation drawings
Installation of the downdraft hood and cooktop in separate cutouts., Surface-mounted installation, 1. Cutout for exhaust air line in cabinet base., 2. Ensure sufficient stability of the worktop., Exhaust air connection ø150 mm POSTSCRIPT
Descriptions
DAD4970, DAD6980, surface mounted installation, common cutout, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 8595 FL or KM 8695 FL., Surface-mounted installation, 1. Cut-out for exhaust air line in cabinet base., 2. Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm. POSTSCRIPT
Descriptions
DAD4970, DAD6980, flush, Installation drawings
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 8595 FL or KM 8695 FL., Flush installation, 1. Cut-out for exhaust air duct in the cabinet base., 2. Ensure sufficient stability of the worktop., 3. Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm. POSTSCRIPT
