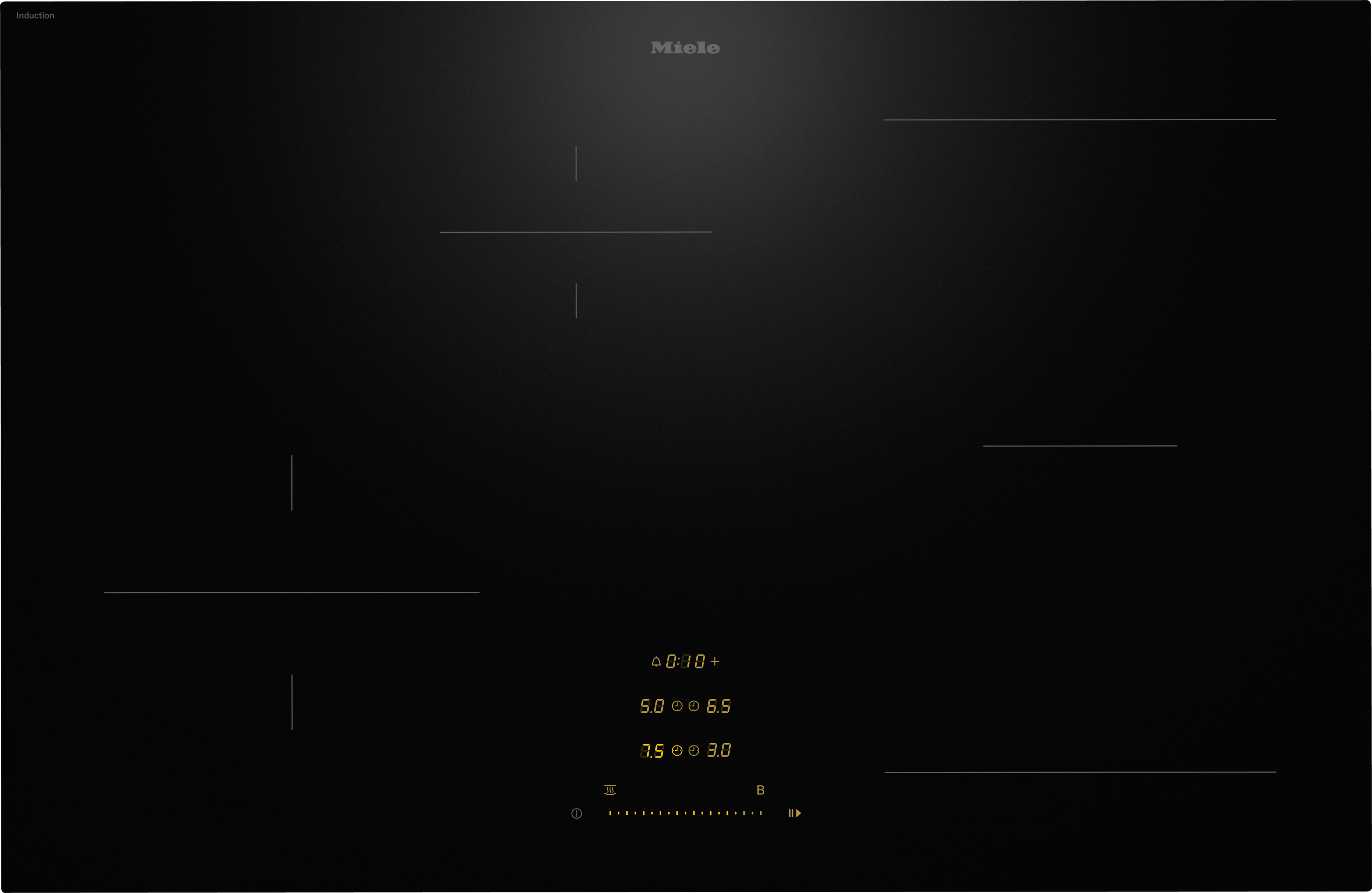

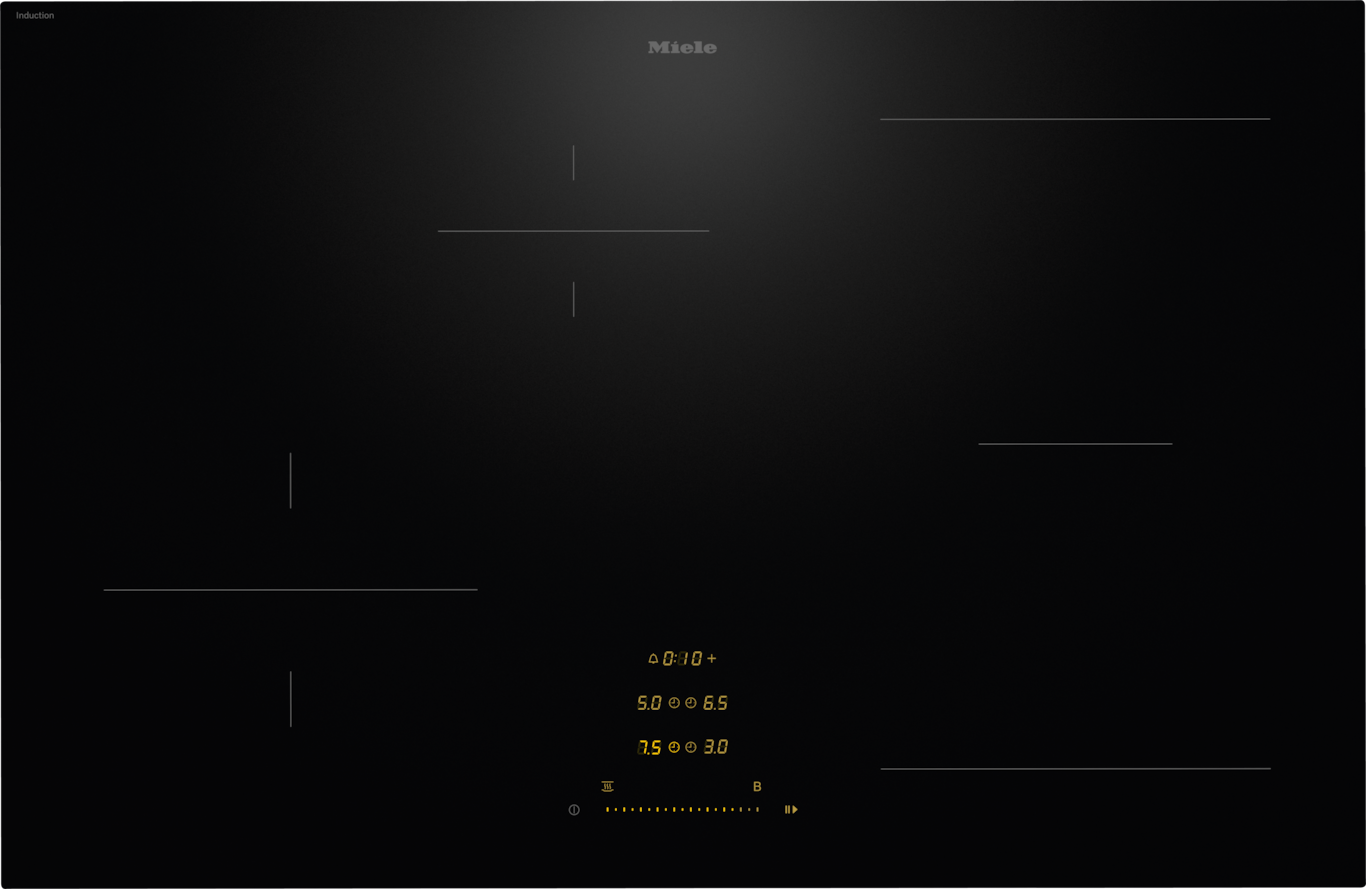

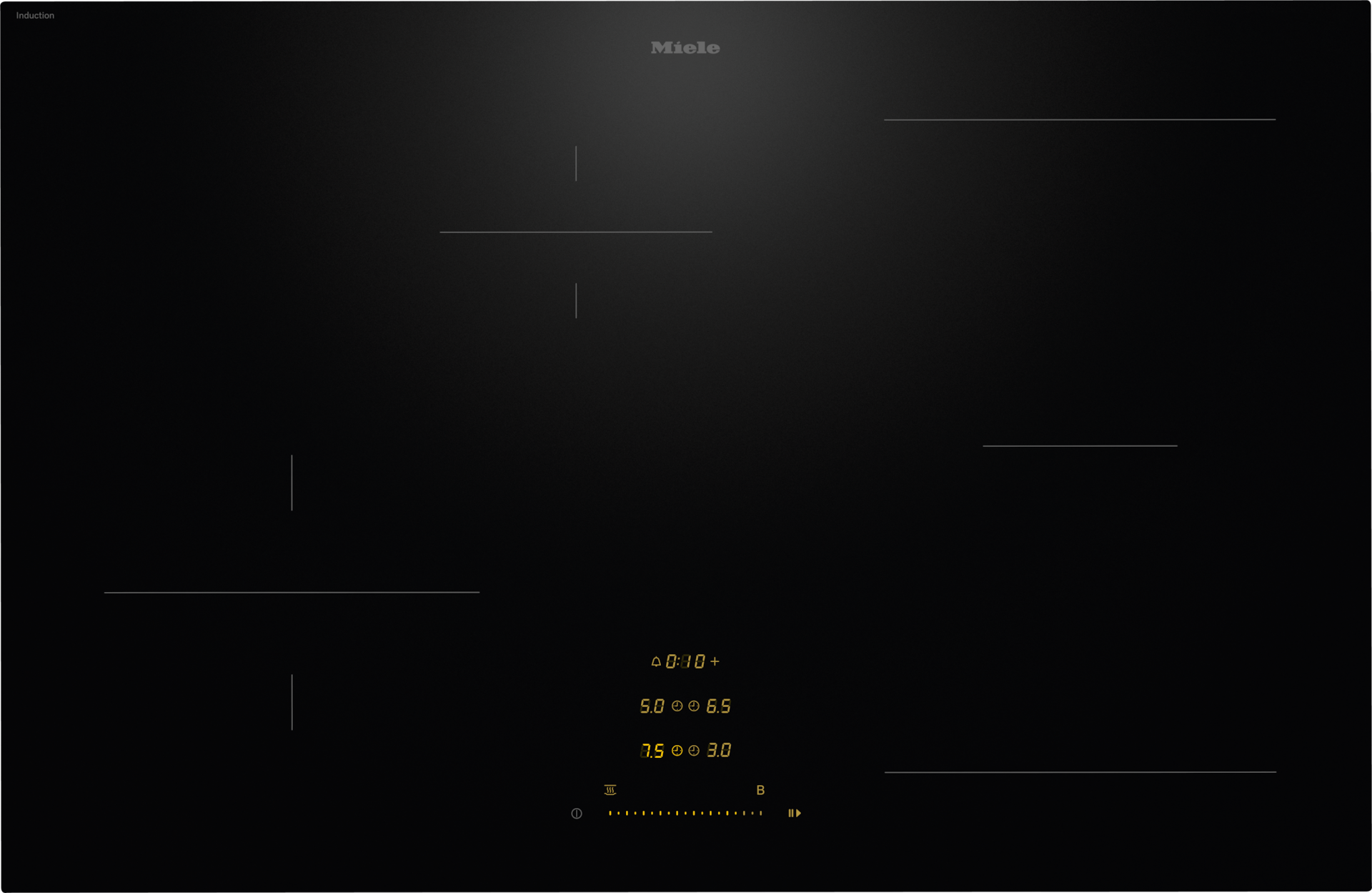

Induction hob with onset controlsGold

KM 8482 FL

800 mm | Individual cooking zones and PowerFlex XL cooking area
sale price€1,589.99
12
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.




Product details

  • 4 cooking zones incl. 1 powerful
    PowerFlex XL cooking area
  • Precise settings via
    SingleSlide
    central slider incl. networking
  • Shortest heat-up times thanks to Booster level
  • A width of 800 mm for surface-mounted or flush-fit installation
  • View manufacturer details:
  • You will find more information about product data and your rights under the EU Data Acthere
  • Safety information

Product data sheet

Model identifier
KM 8482 FL
Manufacturer material number
12944660
EAN number
4002516971573
Marketing class
Gold
Heating type
Induction
Independent of cooker
Elegant glass ceramic surface
Ceramic surface colour
Black
Flush
Surface-mounted installation

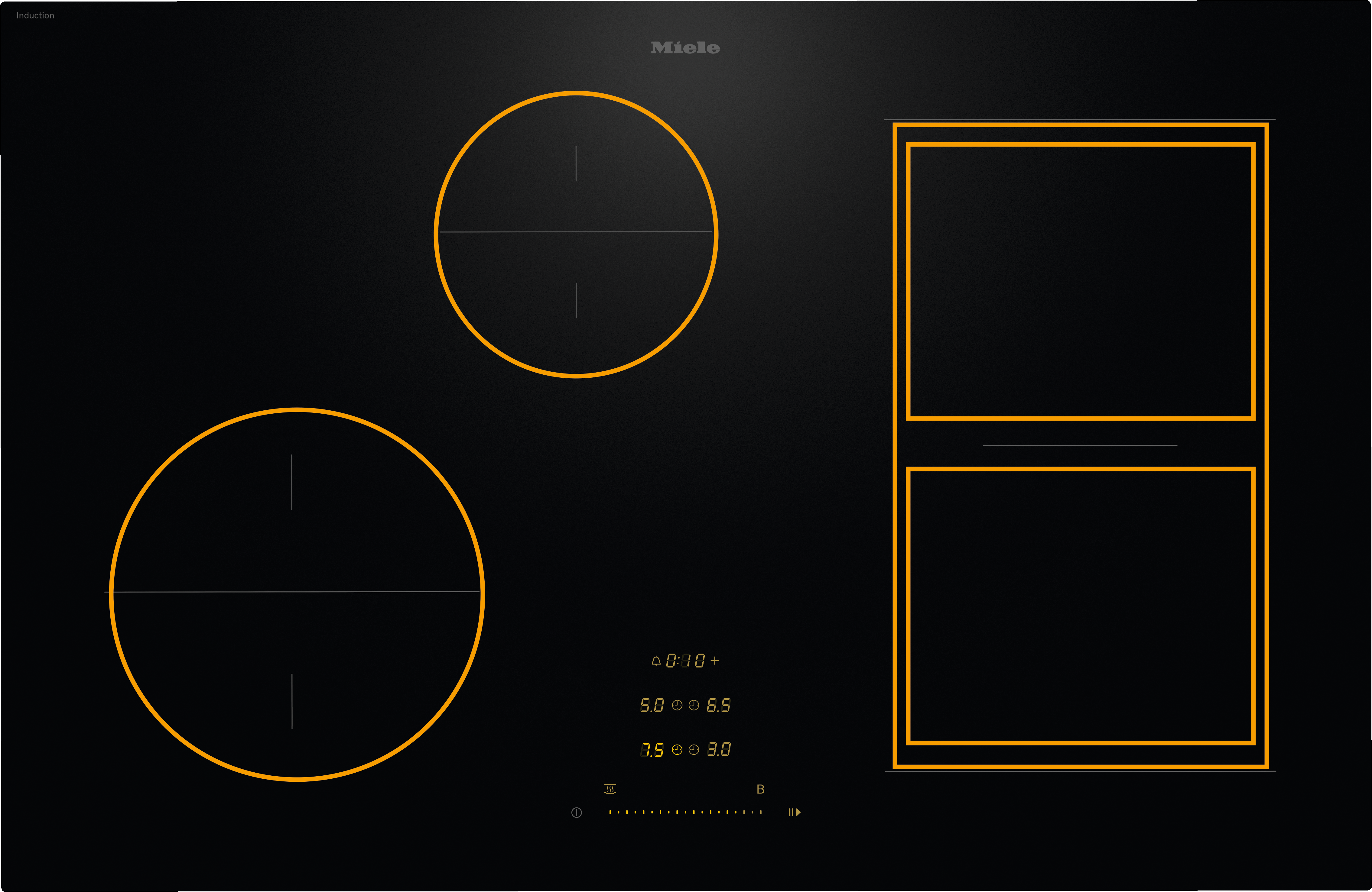

Number of cooking zones
4
Number of cooking areas
1
Maximum number of pans
4
No.
2
Type
PowerFlex XL cooking area
Size in mm
Ø 120 – 230
Max. rating in W
2100
Max. Booster power rating in W
3650
Position
front left
Type
Dual-circuit ring
Size in mm
Ø 140-220
Max. rating in W
2300
Max. Booster power rating in W
3650
Position
rear centre
Type
Dual-circuit ring
Size in mm
Ø 100-160
Max. rating in W
1400
Max. Booster power rating in W
2200
Position
right
Type
PowerFlex XL cooking area
Size in mm
230x460
Max. rating in W
4200
Max. Booster power rating in W
7360
Networking with Miele@home
Con@ctivity
Operation via sensor controls
SingleSlide
Display colour
Yellow
Pan and pan size recognition
Permanent pan recognition
Stop & Go function
Wipe protection
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Recipes
Smart Home Integration
Power rating in off mode in W
0.3
Power rating in standby mode in W
0.8
Power rating in networked standby in W
2
Time until automatic switch to off mode in min
10
Time until automatic switch to standby in min
10
Time until automatic switch to networked standby in min
10
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm
51 x 800 x 520
Dimensions in mm (width)
800
Dimensions in mm (height)
51
Dimensions in mm (depth)
520
Cut-out dimensions (W x D) with surface-mounted installation in mm
750 mm - 780 mm x 490 mm - 500 mm
Cut-out dimensions (W x D) with flush-fit installation in mm
780/804 x 500/524
Casing height incl. connection box in mm
51
Cutout dimensions in mm (width) with surface-mounted installation
750 mm - 780 mm
Cutout dimensions in mm (depth) with surface-mounted installation
490 mm - 500 mm
Internal cutout dimensions in mm (width) with flush installation
780
Internal cutout dimensions in mm (depth) with flush installation
500
External cutout dimensions in mm (width) with flush installation
804
External cutout dimensions in mm (depth) with flush installation
524
Weight in kg
12
Total rated load in kW
7.360
Voltage in V
230
Frequency in Hz
50 - 60
Length of supply lead in m
1.6
Mains cable
EAN
4002516971573

What's included

Mains cable
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.

Safety

For more safety on the hob
For more safety on the hob

Safety functions

Avoid unwanted surprises thanks to our smart safety functions.

User convenience

Central point of control for all cooking zones
Central point of control for all cooking zones

SingleSlide

A central slider gives you an overview of all cooking zones and power levels and allows you to control them with precision.

Setup/function

Position your cookware and start cooking straight away
Position your cookware and start cooking straight away

Permanent pan recognition

Place your pots and pans on the hob and they will be recognised intuitively when you switch it on.
Cook even more conveniently thanks to additional functions
Cook even more conveniently thanks to additional functions

Convenient additional functions

Additional functions make safe and relaxed cooking even easier.
With fast heating and plenty of space, the PowerFlex XL cooking zone adapts to your needs.
With fast heating and plenty of space, the PowerFlex XL cooking zone adapts to your needs.

PowerFlex XL

As the entire depth of the hob can be used, large cookware can be positioned perfectly.

Smart Extras

  • Inspiration for every taste
    Inspiration for every taste

    Recipes3,

    Discover a wide range of digital recipe ideas and get started straight away.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration3,

    Intelligent integration of Miele appliances into a Smart Home system.

Downloads

Operating instructions/Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download
Product fiche
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000021/200002199/20000219952.png
Descriptions
KM8482FL surface-mounted (*Fußnote) Installation drawing
1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loose
POSTSCRIPT
Download
https://media.miele.com/images/2000021/200002199/20000219983.png
Descriptions
KM8482FL flush (*Fußnote) (Installation drawing)
1) front, 2) Mains connection box, The mains connection cable (L = 1440 mm) is enclosed loosely, 3) Step milling natural stone worktop, 4) Wooden strip 12 mm (no supplied accessories)
POSTSCRIPT
Download
  • 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
  • 2.Retail price includes 23% VAT.
  • 3.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
