  • Miele - PDR 508 HP P [EL] – Professional laundry technology - 1

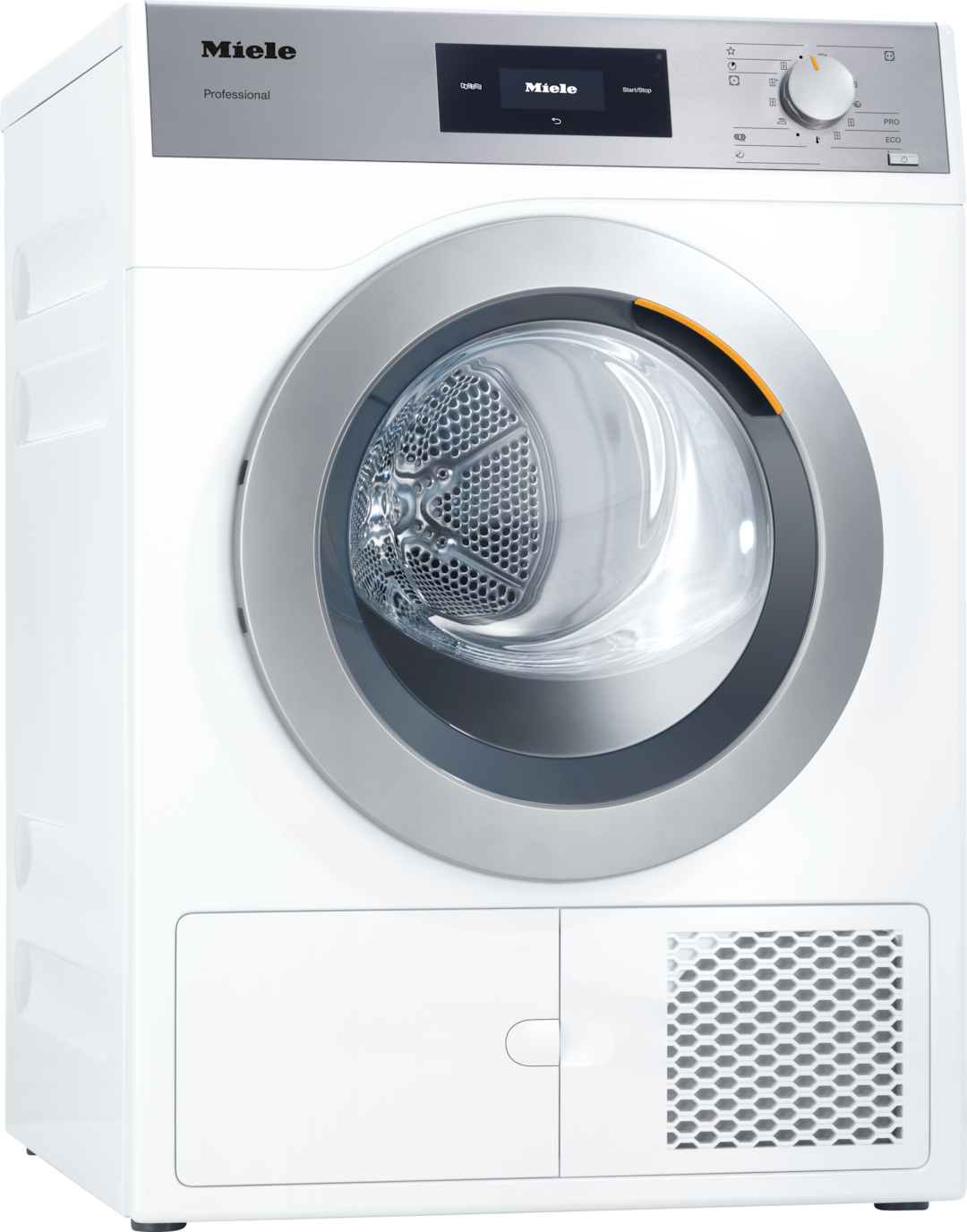

Professional heat-pump dryer, Little Giants

PDR 508 HP P [EL]

With very low energy consumption and short running times. Load capacity 8 kg.
Product data sheet
sale price€4,783.47
1
Retail price includes 23% VAT.




Product details

  • Drum volume 130 l, load capacity 8 kg
  • 50 % less energy consumption than vented dryers7,
  • Even more sustainable heat pump with propane as a refrigerant
  • M Select control unit with many standard and special programmes
  • Future-proof networking via
    WiFi
  • View manufacturer details:
  • You will find more information about product data and your rights under the EU Data Acthere
  • Safety information

Product data sheet

Construction type
Front-loader, stackable
Range Performance
Front Lotus white
Side panels Powder-coated, lotus white
Fascia color Stainless steel
Load in kg 8
Drum volume in l 130
Drying system Heat pump
Door opening [Ø] in mm 370
Door opening angle in degrees 167
Door hinge left
Stainless steel honeycomb drum
Suitable for the hotel and catering industry
Suitable for retirement and care homes
Suitable for facility management
Suitable for residential homes and apartments
Suitable for commercial laundries
Suitable for small businesses
Suitable for universities, nurseries, and schools
Suitable for hospitals
Suitable for camp sites
Suitable for sports clubs
Suitable for beauty salons, spas, and fitness centres
Suitable for domestic use
Suitable for doctors' and dentists' practices
Suitable for the petrochemicals industry
Suitable for the food-processing industry
Suitable for amusement parks & holiday complexes
Suitable for state/community care facilities
Maximum evaporation capacity in l/hour 3
Specific energy consumption in kWh/kg 0.200
Specific energy consumption for Cottons/Normal drying programme with residual moisture at 48 % in kW 0.200
Specific energy consumption for mixed fibre fabrics/Normal drying programme with residual moisture a 0.170
Programme duration in min. 77
Programme duration for Cottons/Normal drying programme with residual moisture at 48 % in minutes 77
Programme duration for mixed fibre fabrics/Normal drying programme with residual moisture at 40 % in 67
Control system M Select
Programmability
programmable
User interface
Residual moisture controlled
Max. delay start in h
24
Time left display
Programme sequence indicator
Control panel with easy-to-understand symbols
Language can be selected easily at any time
Heating type Heat pump
Electrical connection 220-240V~ 50HZ
Total connected load in kW 1.440
Fuse rating in A 13
External dimensions, height in mm 850
External dimensions, width in mm 596
External dimensions, depth in mm 777
External dimensions, gross height in mm 940
External dimensions, gross width in mm 660
External dimensions, gross depth in mm 820
Net weight in kg 70
Gross weight in kg 76
Maximum floor load in N 920
Emission sound pressure level in the workplace ≤70 dB(A) re 20 µPa
Heat dissipation into the room in MJ/h 3.60
Intelligent drum reversal
Axial airflow
Fluff filter in the door
Low-maintenance heat exchanger filter system
PerfectDry
SoftLift drum ribs
Gentle tumble function
Condensed water drainage
Communication slot
Drying basket (optional)
Drum lighting
Machine-independent accessories
Energy efficiency class (A–G) E
Condensation efficiency class (A–D) B
Condensation efficiency in % 92
Weighted energy consumption per 100 cycles in the “ECO Normal” programme in kWh 130
Acoustic airborne noise emissions in the “ECO Normal” standard programme in dB(A) re 1 pW 64
Acoustic airborne noise emission class (A–D) B
Programme running time in the “ECO Normal” programme in min 98
How it works Condenser
Hermetically sealed system
Coolant
R290
Refrigerant quantity in kg 0.149
Refrigerant global warming potential in kg CO2e 3
Appliance global warming potential in kg CO2e 0.45
Payment system (optional)
Optical interface for service access
WiFi
LAN module (optional)
WiFiConn@ct
CE
VDE
VDE-EMC
Splash-proof safety rating IPX4
WEEE
Complies with Machinery Directive 2006/42/EC
EAN 4002516870555
  • Quick and efficient

    Quick and efficient

    Short programme cycles

    Premium commercial technology allows you to benefit from the shortest programme cycles.

  • Unique honeycomb structure for gentle fabric care

    Unique honeycomb structure for gentle fabric care

    Honeycomb drum

    Less creasing, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum.

  • Economical and efficient

    Economical and efficient

    Low consumption values

    Economical and efficient: Miele Professional commercial laundry machines impress with low consumption values.

  • Perfect drying results

    Perfect drying results

    PerfectDry system

    On the basis of a constant residual moisture measurement, the PerfectDry system perfectly dried garments.

  • Language-neutral operation

    Language-neutral operation

    Easy to understand symbols

    The control panel is characterised by logically arranged and easy to understand symbols.

  • Washing & drying on less than 0.5 m² of fl. sp.

    Washing & drying on less than 0.5 m² of fl. sp.

    Washer-dryer stack

    High performance in the smallest space: Installation as washer-dryer stack requires less than 0.5 m² floor space.

  • Select the right programme easily

    Select the right programme easily

    M Select control system

    Fast, direct selection of the drying programme and effortless access to additional functions and settings.

  • It's easy

    It's easy

    The language can be selected easily at any time

    Quick and easy: It's easy to select a different language at any time during operation.

  • Uniform drying results

    Uniform drying results

    Intelligent dryers

    Gentle and uniform drying thanks to intelligent technology.

Connectivity

Secure data exchange
Secure data exchange

LAN interface

The LAN interface enables secure communication in the local network via a LAN cable.
Wireless data exchange
Wireless data exchange

WLAN interface

The WLAN interface enables wireless communication in the local network.
Self-service operation
Self-service operation

Connection of payment system

Optimum use in self-service areas is possible thanks to the connection for payment systems.
Future-proof connections
Future-proof connections

WiFiConn@ct

Simple networking via WiFiConn@ct: connect via smartphone/tablet and app2, and retrieve status updates.

Efficiency

Heat pump is now even more sustainable
Heat pump is now even more sustainable

Refrigerant: propane

The use of propane as a refrigerant reduces the GWP (global warming potential) by up to 99.8 %.
More capacity for the best results
More capacity for the best results

Large capacity

The large capacity drum ensures perfect drying results even with large loads.
Economical and efficient
Economical and efficient

Low consumption values

Economical and efficient: Miele Professional commercial laundry machines impress with low consumption values.

Performance

Quick and efficient
Quick and efficient

Short programme cycles

Premium commercial technology allows you to benefit from the shortest programme cycles.
Perfect drying results
Perfect drying results

PerfectDry system

On the basis of a constant residual moisture measurement, the PerfectDry system perfectly dried garments.
Outstanding drying results
Outstanding drying results

Axial airflow

For perfect drying results, air is passed through the drum according to the principle of longitudinal air flow.
Uniform drying results
Uniform drying results

Intelligent dryers

Gentle and uniform drying thanks to intelligent technology.

Quality

For the protection of personnel in the workplace
For the protection of personnel in the workplace

Conforms to Machinery Directive

Miele commercial machines comply with applicable safety regulations.
Ultimate quality
Ultimate quality

Excellent durability

Professional technology ensures excellent reliability and durability for daily work routine.

User convenience

Well-planned laundry care
Well-planned laundry care

Delay start up to 24 hours

The programme start time can be pre-set up to 24 hours in advance for efficient planning.
An eye on the time
An eye on the time

Countdown indicator

After the programme has started, the display shows the cycle time remaining.
Let there be light
Let there be light

Drum lighting

No laundry item is overlooked when unloading thanks to the perfectly lit honeycomb drum.
High performance
High performance

Patented heat exchanger filtration system4,

For easy cleaning: a low-maintenance filter system protects the heat exchanger from dust particles.
Simple drainage of condensed water
Simple drainage of condensed water

Patented condensate drainage5,

Emptying not necessary: The condensed water can be drained directly via a hose.
Language-neutral operation
Language-neutral operation

Easy to understand symbols

The control panel is characterised by logically arranged and easy to understand symbols.
Increased versatility
Increased versatility

Programmable controls

Whenever needed: Programmable controls enable perfect adaptation to suit individual requirements.
Washing & drying on less than 0.5 m² of fl. sp.
Washing & drying on less than 0.5 m² of fl. sp.

Washer-dryer stack

High performance in the smallest space: Installation as washer-dryer stack requires less than 0.5 m² floor space.
Select the right programme easily
Select the right programme easily

M Select control system

Fast, direct selection of the drying programme and effortless access to additional functions and settings.
It's easy
It's easy

The language can be selected easily at any time

Quick and easy: It's easy to select a different language at any time during operation.
Effective and easy to clean
Effective and easy to clean

Convenient fluff filter6,

Easy to access: the second fluff filter reliably captures fluff and is easy to clean.

Gentle laundry care

Unique honeycomb structure for gentle fabric care
Unique honeycomb structure for gentle fabric care

Honeycomb drum

Less creasing, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum.
Gentle drying of textiles
Gentle drying of textiles

Special drying basket

The basket offers plenty of room for sports shoes as well as for delicate special and synthetic textiles.
Take it with you
Take it with you

SoftLift drum ribs ensure gentle fabric care

The SoftLift drum ribs allow laundry to be dried gently and evenly.
Laundry is loosened automatically
Laundry is loosened automatically

Perfect anti-crease action

The laundry is tumbled regularly after the end of the programme to protect it from creasing.

Matching products and accessories

Tumble dryer basket
TRK 555

Tumble dryer basket

Ideal for trainers, children’s boots, small woollen textiles or soft toys that are suitable for tumble drying.

€82.99
Stacking kit, stainless steel

Stacking kit, stainless steel

For secure installation as a washer-dryer stack.

€255.84
Communication box

Communication box

for setting up a connection with external systems.

€198.03

Downloads

EU declaration of conformity
PDF
Downloads
Installation plan
PDF
Downloads
Product sheet
PDF
Downloads
User manual
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
Energy label
PDF
Downloads
Energy label
PNG
Downloads
Product fiche
PDF
Downloads
Energy label
PDF
Downloads
  • 1.Retail price includes 23% VAT.
  • 2.The Mobile app is available separately – its availability depends on the country or region.
  • 3.German patent: DE102013104124
  • 4.German patent: DE 10 2018 104 694 B3 / European patent: EP2107155 br br br
  • 5.Patent: EP 1 186 697 B1
  • 6.European patent: EP2273005
  • 7.Heat pump dryers consume up to 50 % less energy than an electrically heated vented dryer.
