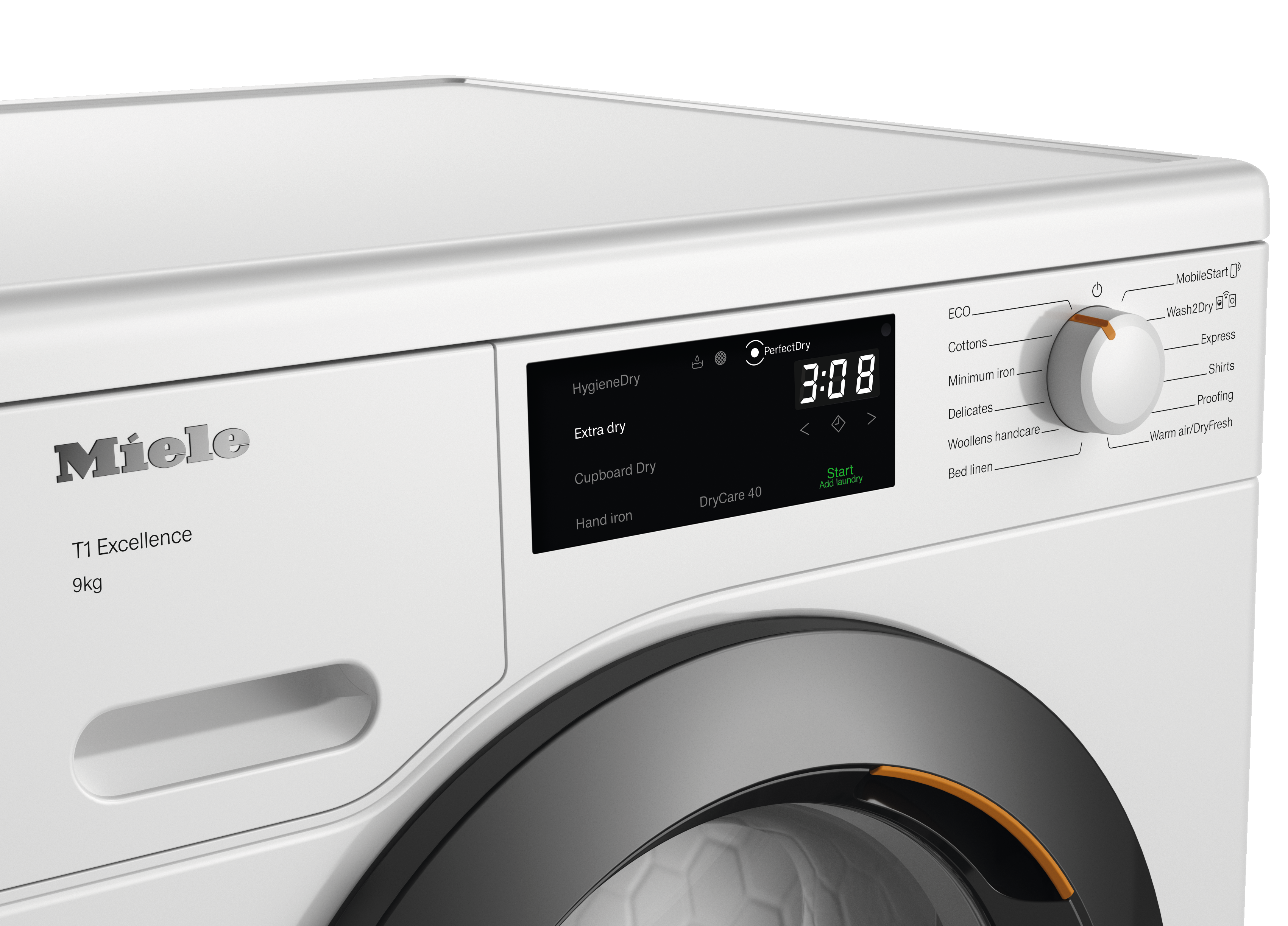

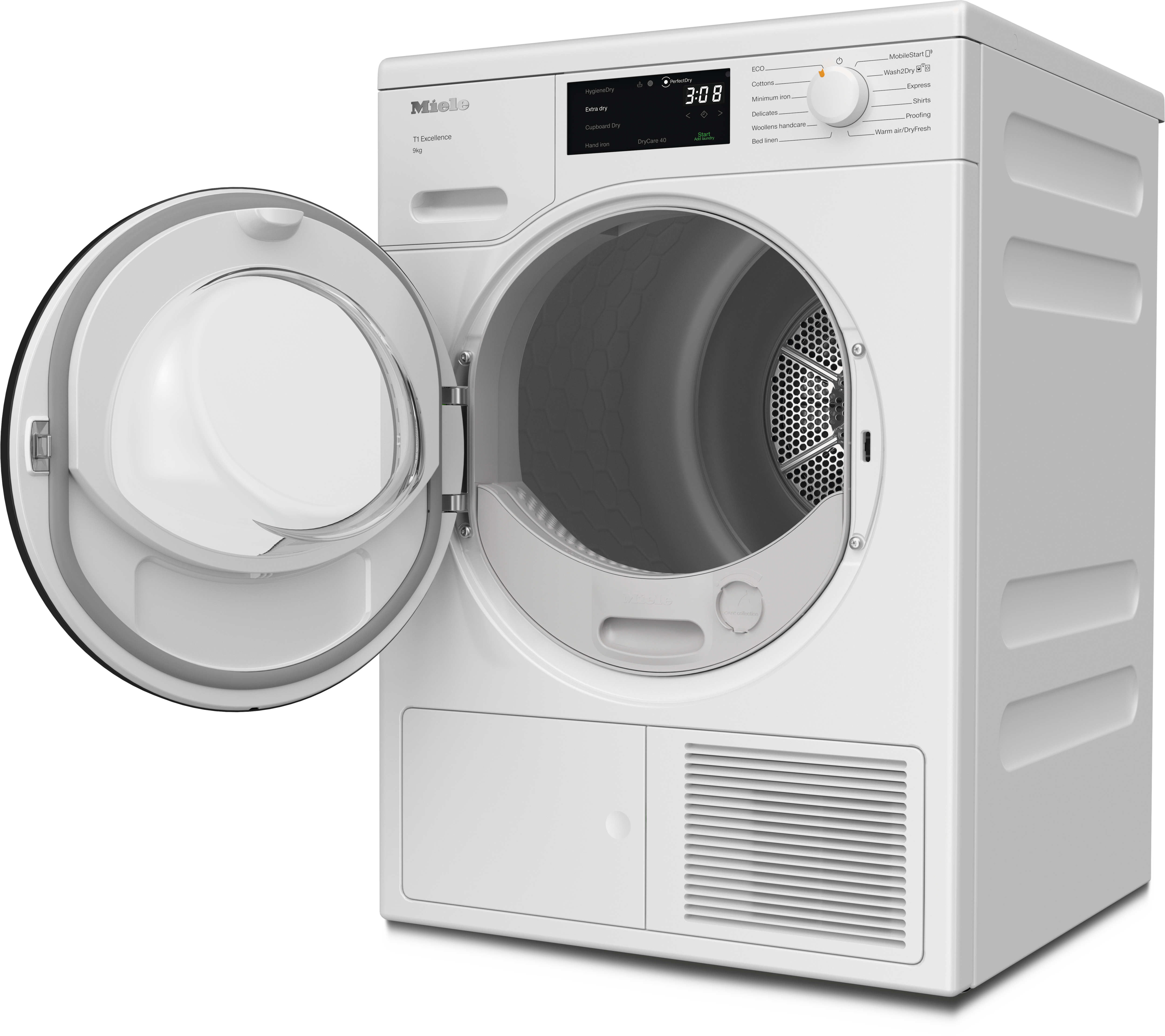

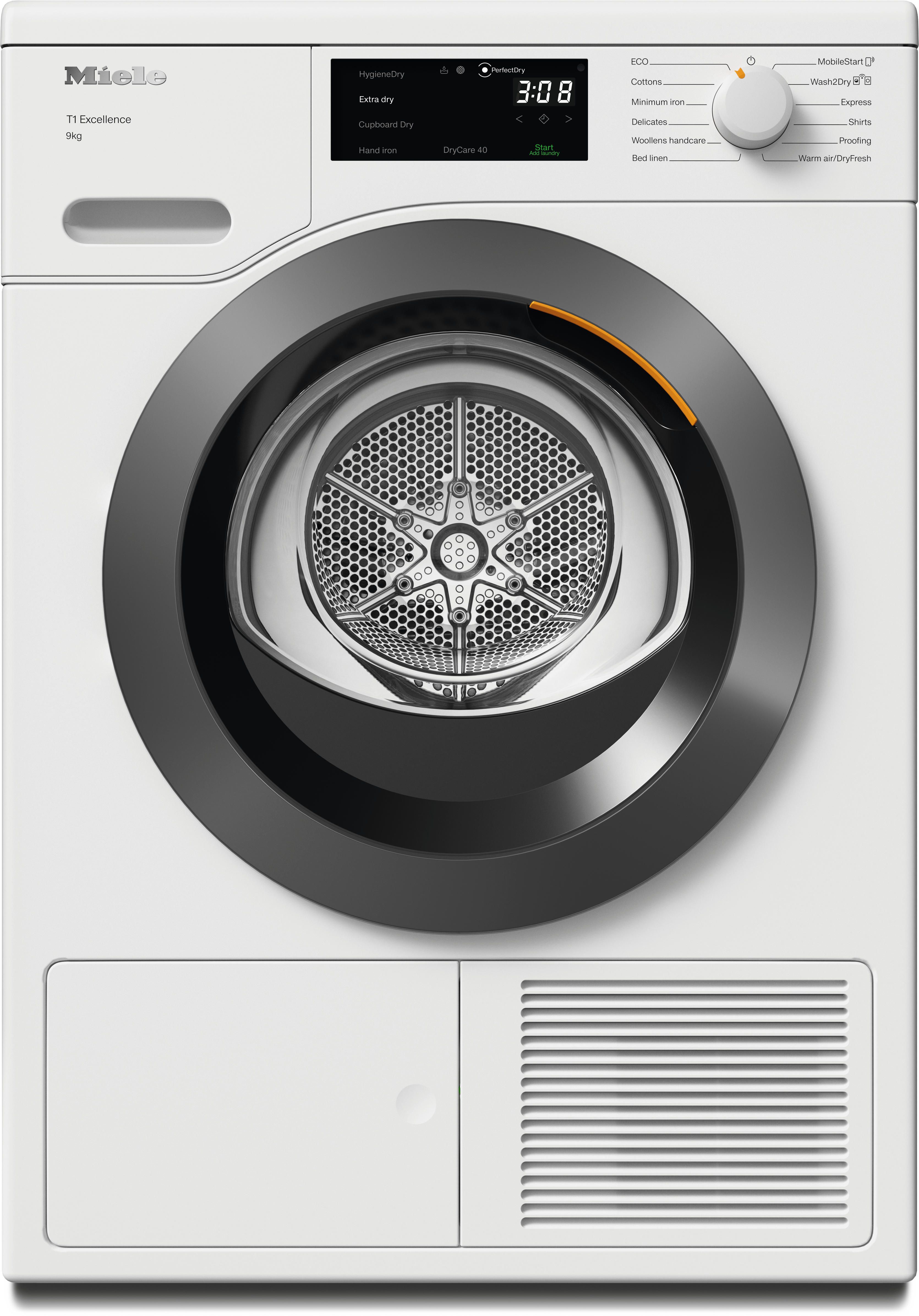

T1 heat-pump dryer:GOLD
TED645WP 9kg
9 kg I DirectSensor I DryCare 40 I HygieneDry I Miele@homeA contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.
You can select the following services for this product in your basket:
- Recycle Old Appliance (€0.00)
- Freestanding Installation (€50.00)
- Stacked Laundry Installation (€80.00)
Product details
- Tested for20 yearsof perfect laundry care12,Loading...
- Economical and gentle drying –heat-pump technologyLoading...
- DryCare 40– dries almost anything that can be washed at 40 °CLoading...
- Faster drying combined with maximum energy efficiency – EcoSpeed
- HygieneDryremoves up to 99.99 % of bacteria* and 99.9 % of viruses13,Loading...
- View manufacturer details:
- You will find more information about product data and your rights under the EU Data Acthere
- Safety information
Suitable for stacking
Loading...
Side-by-side
Loading...
Slot-in
Loading...
Can be built-under
Loading...
Door hinge left
Product brand T1 Chrome Edition
Heat pump dryer
Loading...
Appliance colour Lotus white
Control panel colour Lotus white
Door design Graphite grey PearlFinish
Rotary selector colour Lotus White
Control panel version Straight
Control type Rotary control
Display DirectSensor white, 7 segment
PerfectDry precision drying
Loading...
FragranceDos fragrance system
Loading...
Intelligent drum reversal
HygieneDry
Loading...
Honeycomb drum
Loading...
Load in kg 9
Networking with Miele@home
Loading...
Wash2Dry
Loading...
Delay start up to 24 hours
Loading...
Time left display
Drum lighting LED
Condensate container
Integrated condensed water drainage
Loading...
AddLoad
Loading...
Energy efficiency class (A - G) C
Weighted energy consumption per 100 cycles in the “ECO Normal” programme in kWh 107
Acoustic airborne noise emissions in the “ECO Normal” standard programme in dB(A) re 1 pW 64
Acoustic airborne noise emission class (A–D) B
Programme running time in the “ECO Normal” programme in min 187
Condensation efficiency in % 95
Condensation efficiency class (A–D) A
EcoDry technology
Maintenance-free heat exchanger
Loading...
ProfiEco motor
Loading...
EcoSpeed
Loading...
Cottons (coloureds)
ECO
Minimum iron
Delicates
Shirts
Loading...
Woollens handcare
Loading...
Express
Loading...
Proofing
Loading...
Bed linen
Warm air/DryFresh
Anti-crease
Buzzer
DryCare 40
Loading...
Soft ribs
PIN-Code
Empty out container indicator
Clean filter indication
Optical interface
Dimensions in mm (width) 596
Dimensions (H x W x D) in mm 850 x 596 x 636
Dimensions in mm (height) 850
Dimensions in mm (depth) 636
Appliance depth in mm with opened door 1054
Weight in kg 53
Total rated load in kW 1.100
Voltage in V 220-240
Fuse rating in A 10
Frequency in Hz 50
Length of supply lead in m 2
Hermetically sealed
Type of coolant R290
Refrigerant quantity in kg 0.140
Refrigerant global warming potential in CO₂ e 3
Appliance global warming potential in CO₂ e 0.42
Replacing lamps Service
Fragrance flacon
Voucher for a second fragrance flacon
EAN 4002516880011
Fragrance flacon
Voucher for a second fragrance flacon

Shirts
Prevents creasing: reduces creasing and simplifies the ironing of shirts and blouses significantly.
Delicates
Takes care of synthetic fibres: these look good & stay in shape for longer when dried with this special programme.
Finish Woollens
Beautifully fluffy: Delicate wool fabrics are handled particularly gently, maintaining their quality.
Express
Sometimes things have to be done fast: so small laundry loads are dried quickly and can be used again.
Proofing
Best possible effect: Thermally fixing ensures optimum water-repellent properties.
Bed linen
Best results: uniform drying of large items of textiles.
Energy efficiency
High energy efficiency, excellent results, short drying times.
ProfiEco motor3,
Powerful and efficient: our inverter drive motors minimise wear, noise and energy consumption.
Highest condensation efficiency
Maximum protection against moisture with the highest condensation efficiency class A.
Maintenance-free heat exchanger
Sustainable, maintenance-free: a filter protects the heat exchanger, so it no longer requires constant cleaning.
EcoDry technology
EcoDry technology ensures long-term low energy consumption and short programme running times.
EcoSpeed
EcoSpeed reduces drying times by up to 20 minutes – without compromising on energy efficiency.4,
Miele motor warranty
25-year warranty on the motors of our washing machines, tumble dryers and washer-dryers.5,
Miele@home7,
Connect your tumble dryer to your home network and access its controls through a convenient and intuitive app.
Integrated condensed water drainage
Emptying not necessary: the condensation can be drained off via a hose directly into the sink or a U-tube.
AddLoad
Maximum convenience: you can easily add or remove laundry items even after the programme has started.
Wash2Dry8,
Benefit from networked appliances: your dryer automatically matches its programme with your washing machine.
Honeycomb drum
The specially engineered drum dries fabrics more evenly and cushions them, resulting in less creases and wear.
Anti-crease action
Practically crease-free: the laundry is loosened regularly after the programme has finished, preventing creasing.
Heat-pump technology
Drying at low temperatures protects your clothes.
DryCare 40 extra
Use the new options with DryCare 40 and dry all items that can be washed at 40 °C.9,
PerfectDry precision drying
Experience perfectly dried laundry thanks to automatic adaptation to the water quality.
HygieneDry
HygieneDry removes up to 99.99 % of bacteria and 99.9 % of viruses10, .
FragranceDos fragrance system11,
With Miele’s auto fragrance system, every laundry load can be freshly scented just the way you like.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

Descriptions
T1 installation drawing, slanted facia or straight facia, measures in mm
T1 installation drawing, slanted facia or straight facia, measures in mm POSTSCRIPT

Descriptions
T1 drawing, slanted facia or straight facia, measures in mm
T1 drawing, slanted facia or straight facia, measures in mm POSTSCRIPT

Descriptions
T1 drawing, slanted facia or straight facia, with porthole, measures in mm
T1 drawing, slanted facia or straight facia, with porthole, measures in mm POSTSCRIPT

Descriptions
T1 drawing, slanted facia or straight facia, without porthole, measures in mm
T1 drawing, slanted facia or straight facia, without porthole, measures in mm POSTSCRIPT
- 1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
- 2.Retail price includes 23% VAT.
- 3.Patent: EP 2 840 679
- 4.Compared to Miele tumble dryers without EcoSpeed with the same load size and energy efficiency class. Tested in the Cottons programme with a full load size.
- 5.The Miele motor guarantee applies to new appliances purchased from 1 October 2025. Valid in the countries of the European Economic Area and Switzerland. Applies exclusively to appliances from the domestic range. Professional machines and Little Giants are excluded from the motor warranty. The conditions of the motor warranty apply. More: miele.ie/25yearsguarantee
- 6.During the development phase of the T1 / T2 tumble dryer series, Miele tested models and core components in 5000 drying cycles (= 5 drying cycles per week for 50 weeks per year) in various programmes. More: miele.com/20years
- 7.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
- 8.For this function to work, the tumble dryer and washing machine must be registered in the in-house network and/or in the app.
- 9.Not suitable for woollens or silks.
- 10.With the exception of Hepatitis B. Tested by Albstadt-Sigmaringen University and awarded the silver label by the Institute for Integrative Hygiene and Virology (InFluenc_H). A description of the relevant methodology can be found at the following link:
a href="https://www.miele.com/tr-c" https://www.miele.com/tr-c /a - 11.Patent: EP 2 431 516
- 12.During the development phase of the W1 / W2 washing machine series, Miele tested models and core components in 5000 wash loads (= 5 wash loads per week for 50 weeks per year) in various programmes. More: miele.com/20years
- 13.Tested for Bacillus subtilis and Saccharomyces cerevisiae bacteria in the HygieneDry drying level with half load. A description of the relevant methodology can be found at the following link:
a href="https://www.miele.com/media/ex/com/Testkriterien_Hygiene-Siegel_T1.pdf" miele.de/testkriterien-trockner /a
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
