Induction hob with onset controlsDIAMOND

KM 7897-2 FL Diamond

with full-surface induction and DiamondFinish for long-lasting cooking pleasure
Product data sheet
sale price€3,879.99
12
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.

Additional services

You can select the following services for this product in your basket:

  • Recycle Old Appliance (€0.00)

Product details

  • Hard-wearing finish –
    DiamondFinish
  • Intelligent pan recognition – for up to 6 pans
  • Intuitive quick selection with numerical keybank -
    Smart Select White
  • Communication with the hood – automatic
    Con@ctivity
    function
  • Frameless for flush-fit or surface-mounted installation
  • View manufacturer details:
  • You will find more information about product data and your rights under the EU Data Acthere
  • Safety information

Product data sheet

Heating type Induction
Independent of cooker
Scratch-resistant surface DiamondFinish
Elegant glass ceramic surface
Ceramic surface colour Graphite black
Flush
Surface-mounted installation
Number of cooking areas 1
Maximum number of pans 6
Position Can be selected freely
Type
Full area
Size in mm 870x380
Max. rating in W 2600
Max. Booster power rating in W 3300
Max. TwinBooster power rating in W 3650
Networking with Miele@home
Con@ctivity

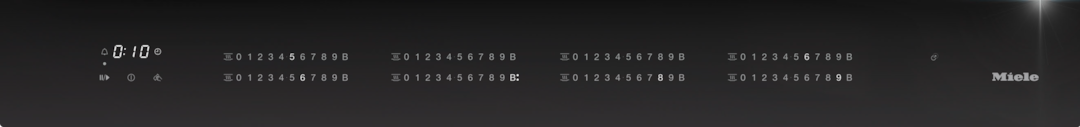

Operation via sensor controls SmartSelect White
Display colour White
Intelligent pan recognition
Pan and pan size recognition
Positioning aid
Stop & Go function
Wipe protection
Recall function
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Power rating in off mode in W 0.5
Power rating in standby mode in W 0.8
Power rating in networked standby in W 2
Time until automatic switch to off mode in min 10
Time until automatic switch to standby in min 10
Time until automatic switch to networked standby in min 10
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Integrated cooling fan
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm 51 x 936 x 520
Dimensions in mm (width) 936
Dimensions in mm (height) 51
Dimensions in mm (depth) 520
Cut-out dimensions (W x D) with surface-mounted installation in mm 916 mm x 500 mm
Cut-out dimensions (W x D) with flush-fit installation in mm 916/940 x 500/524
Casing height incl. connection box in mm 57
Cutout dimensions in mm (width) with surface-mounted installation 916 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Internal cutout dimensions in mm (width) with flush installation 916
Internal cutout dimensions in mm (depth) with flush installation 500
External cutout dimensions in mm (width) with flush installation 940
External cutout dimensions in mm (depth) with flush installation 524
Weight in kg 21
Total rated load in kW 9.200
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.4
Mains cable
EAN 4002516675136

What's included

Mains cable
  • Cleverly networked

    Cleverly networked

    Domestic appliance networking with Miele@home3,

    Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

  • Smart control

    Smart control

    Con@ctivity

    Innovative convenience: the cooker hood reacts automatically to settings on the hob.

  • Unrivalled flexibility

    Unrivalled flexibility

    Full-surface

    Use the hob surface however you like: pans can be placed anywhere.

  • Simple operation thanks to intuitive controls

    Simple operation thanks to intuitive controls

    SmartSelect White

    Select the setting quickly and easily for each individual cooking zone and experience intuitive cooking.

  • Hard-wearing finish

    Hard-wearing finish

    DiamondFinish

    Robust and sophisticated: the particularly resistant and high-quality DiamondFinish coating reduces scratches.

Safety

For greater safety and security
For greater safety and security

Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

User convenience

Cleverly networked
Cleverly networked

Domestic appliance networking with Miele@home3,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Simple operation thanks to intuitive controls
Simple operation thanks to intuitive controls

SmartSelect White

Select the setting quickly and easily for each individual cooking zone and experience intuitive cooking.

Setup/function

Smart control
Smart control

Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Unrivalled flexibility
Unrivalled flexibility

Full-surface

Use the hob surface however you like: pans can be placed anywhere.
Intuitive and intelligent
Intuitive and intelligent

Intelligent pan detection

Knows where the pan is: the control elements simply move along on the full surface.
Heats up particularly quickly thanks to Booster
Heats up particularly quickly thanks to Booster

TwinBooster

Distribute the induction power across several cooking zones or concentrate the power on one cooking zone.
Added convenience
Added convenience

Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.
Hard-wearing finish
Hard-wearing finish

DiamondFinish

Robust and sophisticated: the particularly resistant and high-quality DiamondFinish coating reduces scratches.

Matching products and accessories

Gourmet griddle plate
GGRP

Gourmet griddle plate

For a unique grilling experience on Miele induction hobs

€275.39
Pan set (4-piece)
KMTS 5704-3

Pan set (4-piece)

made of robust and high-quality stainless steel, lid with side steam outlet.

€629.99
Induction compatible gourmet oven dish
HUB 5001-M

Induction compatible gourmet oven dish

For frying, braising and gratinating.

€296.59
iittala cookware, set of 4 pans

iittala cookware, set of 4 pans

from the "All Steel" range by Harri Koskinen, satin finish exclusively f. Miele.

€359.00
Tepan Yaki
KMTY

Tepan Yaki

for a unique cooking experience on Miele induction hobs

€376.19
Silicone feet
SF GGRP

Silicone feet

to ensure that the Gourmet griddle plate is secure on the induction hob

€11.19
Fiskars “All Steel” starter pan set (4 pieces)

Fiskars “All Steel” starter pan set (4 pieces)

stainless steel cookware with a matt brushed finish exclusively for Miele.

€449.99
Ceramic and stainless steel cleaner, 250 ml
GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

€9.19
Scraper for cleaning
GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

€14.29
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

€15.29

Downloads

Operating instructions/Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
Product fiche
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000015/200001511/20000151107.png
Descriptions
KM7697FL, KM7897FL, KM7897-1FLDiamond, KM7897-2FL Diamond (installation drawings) - onset
1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely,
POSTSCRIPT
Downloads
https://media.miele.com/images/2000015/200001511/20000151125.png
Descriptions
KM7697FL, KM7897FL, KM7897-1FLDiamond, KM7897-2FL Diamond (installation drawings) - flush-fit
1) Front, 2) Mains connection box with mains connection cable, L = 1440 mm, are enclosed loosely, 3) Stepped cut-out natural stone worktop, 4) Wood support 12 mm (not supplied)
POSTSCRIPT
Downloads
