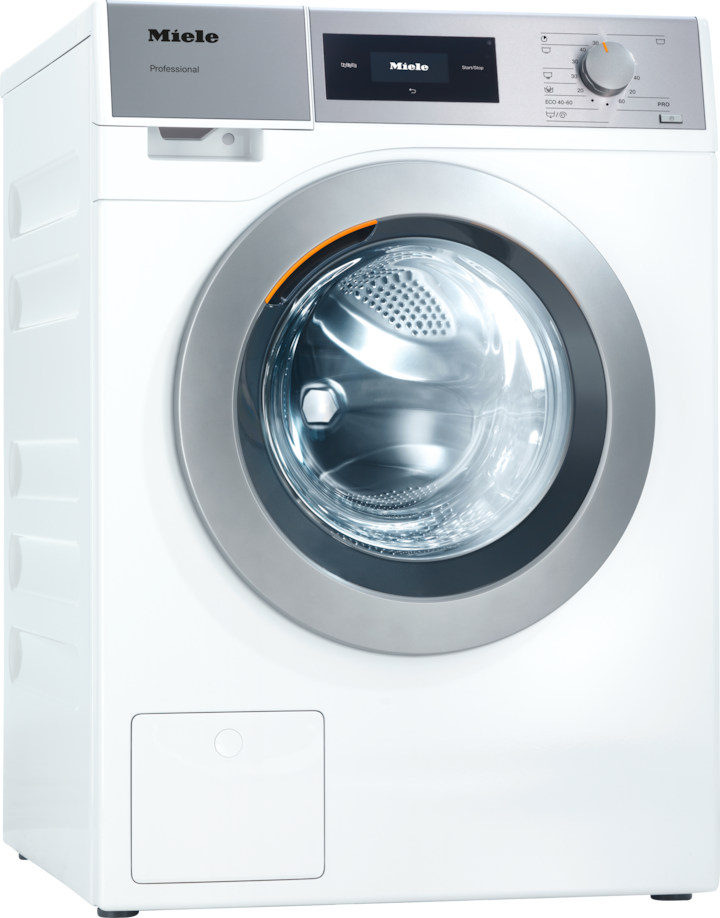

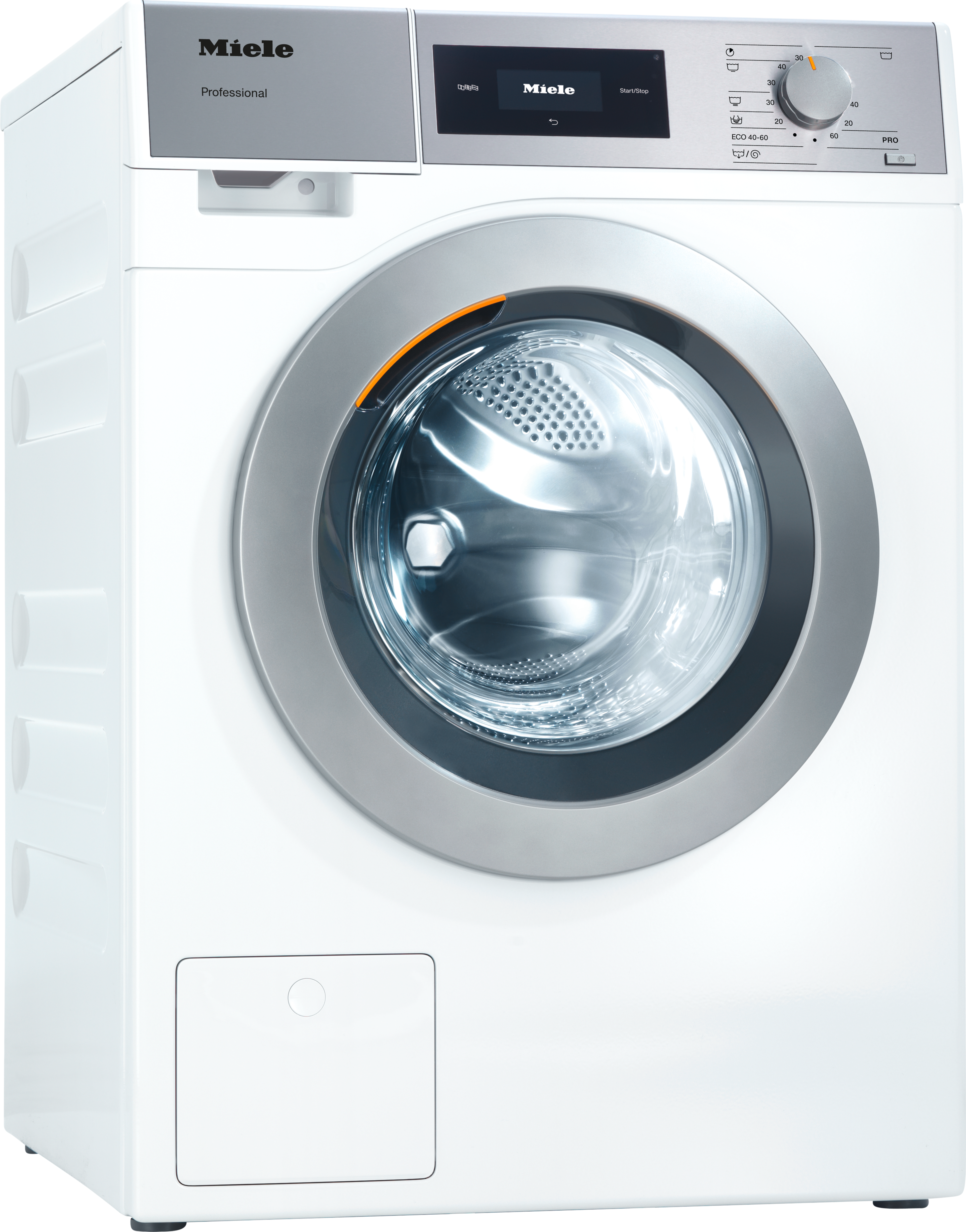

PWM 307 [EL DP-1]
and the shortest cycle time of 69 min minutes for high laundry throughput.Product details
- Drum volume 64 l, load capacity 7 kg
- Tested for intensive use –unparalleled Miele qualityLoading...
- 22 % less water consumption and 28 % less energy consumption6,
- M Select control unit with a wide range of standard programmes
- Future-proof networking viaWiFiLoading...
- View manufacturer details:
- You will find more information about product data and your rights under the EU Data Acthere
- Safety information
Product data sheet
- Construction typeLoading...
- Front-loader, stackable
- Range
- Evolution
- Front
- Lotus white
- Load in kg
- 7
- Drum volume in l
- 64
- Door opening [Ø] in mm
- 300Loading...
- Door opening angle in degrees
- 167
- Door hinge
- right
- Maintenance-free synchronous motorLoading...
- Honeycomb drum with perforated drum rear panel made of stainless steelLoading...
- Suitable for hotels and restaurantsLoading...
- Suitable for residential homes and apartmentsLoading...
- Suitable for small businessesLoading...
- Suitable for universities, nurseries, and schoolsLoading...
- Suitable for camp sitesLoading...
- Suitable for sports clubsLoading...
- Suitable for beauty salons, spas, and fitness centresLoading...
- Suitable for domestic useLoading...
- Suitable for amusement parks & holiday complexesLoading...
- Suitable for state/community care facilitiesLoading...
- Tested virucidal efficacyLoading...
- Specific water consumption for cold water connection in l/kg
- 7Loading...
- Specific energy consumption for cold water connection in kWh/kg
- 0.140Loading...
- Water consumption with cold water connection in l
- 49Loading...
- Energy consumption with cold water connection in kW
- 0.98Loading...
- Programme duration in minutes with cold water connection
- 69Loading...
- Residual moisture with cold rinse in %
- 48
- Spin speed in rpm
- 1600
- g factor
- 704
- Tested operating hours
- 30000Loading...
- Control system
- M Select
- ProgrammabilityLoading...
- programmable
- Max. delay start in hLoading...
- 24
- Time left displayLoading...
- Programme sequence indicator
- Control panel with easy-to-understand symbolsLoading...
- Language can be selected easily at any timeLoading...
- Detergent drawer
- 3 compartments
- CapDosingLoading...
- Heating type
- Electric
- Electrical connection
- 230V~ 50HZ
- Heater rating in kW
- 2.300
- Total connected load in kW
- 2.500
- Fuse rating in A
- 13
- Cold water [number]
- 1x 1/2" hose w/ 3/4" th. union
- Drain pump
- DN 22
- External dimensions, height in mm
- 850
- External dimensions, width in mm
- 596
- External dimensions, depth in mm
- 714
- External dimensions, gross height in mm
- 944Loading...
- External dimensions, gross width in mm
- 660Loading...
- External dimensions, gross depth in mm
- 768Loading...
- Net weight in kg
- 98
- Gross weight in kg
- 102Loading...
- Maximum floor load in N
- 2820Loading...
- Emission sound pressure level in the workplace
- ≤70 dB(A) re 20 µPaLoading...
- Heat dissipation into the room in MJ/h
- 1Loading...
- 3-dimensional imbalance monitoringLoading...
- Commercial shock absorbersLoading...
- Hard-wearing stainless-steel flangeLoading...
- Disinfection rinseLoading...
- EcoSpeedLoading...
- Efficient drum rib technologyLoading...
- Temperature monitoringLoading...
- Special heater elementLoading...
- Automatic load controlLoading...
- Flow meterLoading...
- Add laundryLoading...
- Machine-independent accessoriesLoading...
- Load capacity for the “eco 40–60” program in lbs.
- 7

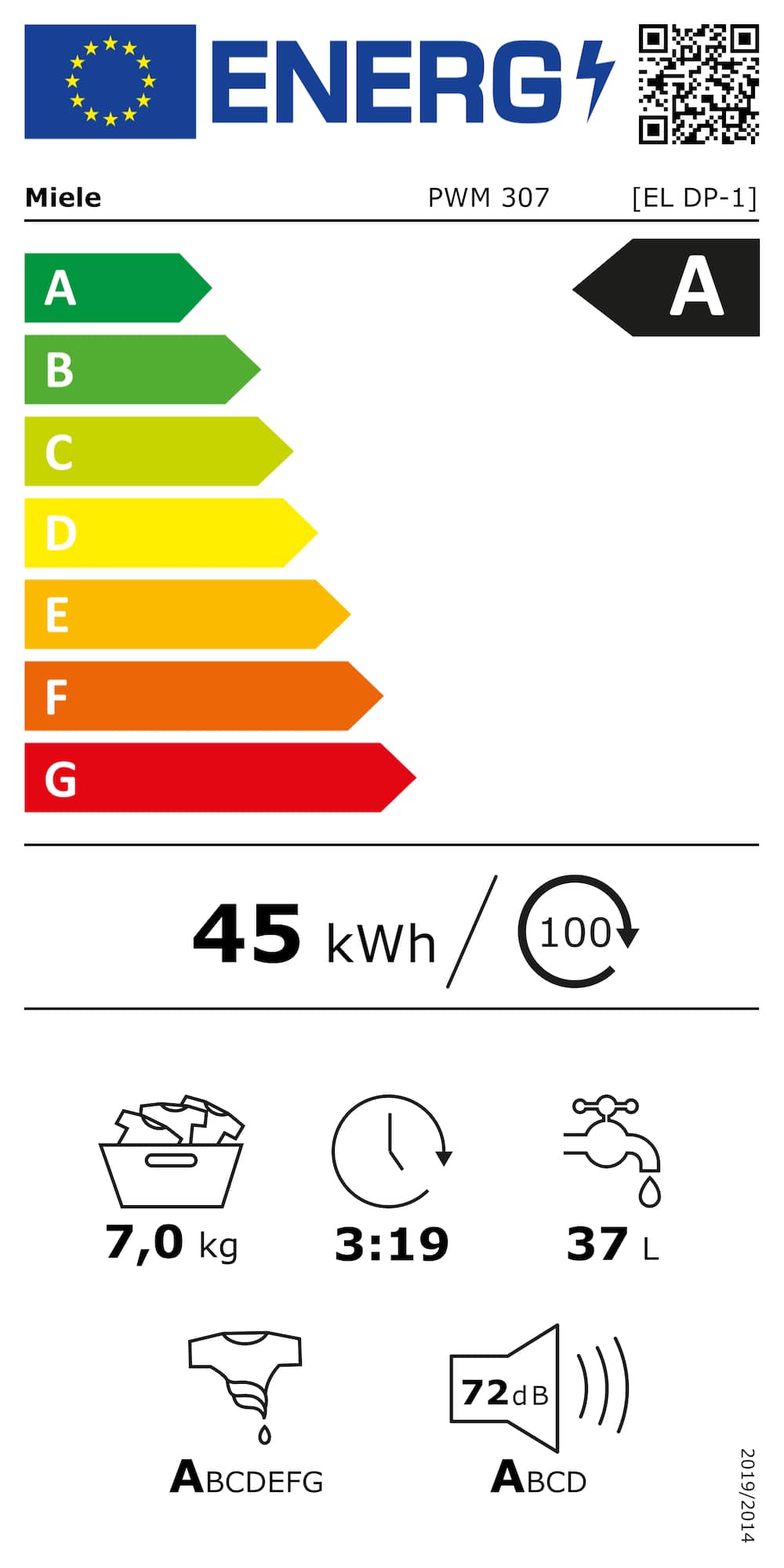

- Energy efficiency class (A–G)
- A
- Spin efficiency class (A–G)
- A
- Weighted energy consumption per 100 cycles in the “eco 40–60” program in kWh
- 45
- Weighted water consumption per cycle in the “eco 40–60” program in l
- 37
- Noise emission rating (spin cycle) (A–D)
- A
- Noise emission during spin cycle in dB(A) re 1 pW
- 72
- Program runtime in the “eco 40–60”program in min
- 199
- Recycling rate in %
- 95
- Payment system (optional)Loading...
- Optical interface for service accessLoading...
- WiFiLoading...
- LAN module (optional)Loading...
- WiFiConn@ctLoading...
- CE
- VDE-EMC
- VDE
- Splash-proof safety rating IPX4
- WRAS
- Regulation 4 compliant
- UKCA
- WEEE
- Complies with Machinery Directive 2006/42/EC
- EAN
- 4002516413813
Quick and efficientShort programme cycles
Premium commercial technology allows you to benefit from the shortest programme cycles.
Economical and efficientLow consumption values
Economical and efficient: Miele Professional commercial laundry machines impress with low consumption values.
Language-neutral operationEasy to understand symbols
The control panel is characterised by logically arranged and easy to understand symbols.
Washing & drying on less than 0.5 m² of fl. sp.Washer-dryer stack
High performance in the smallest space: Installation as washer-dryer stack requires less than 0.5 m² floor space.
Select the right programme easilyM Select control system
Fast, direct selection of the wash programme and effortless access to additional functions and settings.
Wash a mountain of laundry in a short timeExcellent capacity thanks to process optimisation
First-class efficiency thanks to short programme durations, ensuring high turnaround times.
Perfect wash resultsHoneycomb drum with perforated drum rear panel
Perfect wash results even sooner thanks to faster wetting.
A new balance of mechanical action and water usageEcoSpeed – patented wash rhythm4,
Intensive cleaning with reduced water consumption due to optimised changes in speed.
It's easyThe language can be selected easily at any time
Quick and easy: It's easy to select a different language at any time during operation.
Perfect resultsEfficient drum rib technology
Fast, optimum wetting is achieved with specially designed scoop ribs.
Spinning at a professional standard3-dimensional imbalance monitoring
Reliable moisture removal from wash items thanks to professional 3D sensor technology.
Professional appliance technologyStainless-steel flange
Long service life due to high resistance to aggressive cleaning agents.
For optimum smooth runningCommercial shock absorbers
Incredibly smooth running even at high spin speeds with professional shock absorbers lasting for 30,000 hours.
Effective against viruses – scientifically provenProven hygiene
Our washing machines in the Little Giants series remove more than 99.9 %3, of all viruses (including coronaviruses).
Connectivity

LAN interface
The LAN interface enables secure communication in the local network via a LAN cable.
WLAN interface
The WLAN interface enables wireless communication in the local network.
Connection of payment system
Optimum use in self-service areas is possible thanks to the connection for payment systems.
WiFiConn@ct
Simple networking via WiFiConn@ct: connect via smartphone/tablet and app2, and retrieve status updates.Efficiency

Large capacity
Miele Professional washer-extractors have a large capacity drum to accommodate large loads of laundry.
Low consumption values
Economical and efficient: Miele Professional commercial laundry machines impress with low consumption values.
Precise automatic load recognition
Water and energy consumption are automatically adjusted for the load size.
Excellent capacity thanks to process optimisation
First-class efficiency thanks to short programme durations, ensuring high turnaround times.Hygiene

Disinfection rinse
A final rinse with a special high temperature/holding time provides additional reassurance with regard to hygiene.
High temperature consistency
For reliable cleaning results and maximum hygiene, the temperature of the washing water is monitored constantly.
Proven hygiene
Our washing machines in the Little Giants series remove more than 99.9 %3, of all viruses (including coronaviruses).Performance

Short programme cycles
Premium commercial technology allows you to benefit from the shortest programme cycles.
Precisely controlled water consumption
The flow meter monitors the volume of water intake precisely for maximum efficiency.
Excellent spin performance
Very low residual moisture on account of high g-factor.
Honeycomb drum with perforated drum rear panel
Perfect wash results even sooner thanks to faster wetting.
EcoSpeed – patented wash rhythm4,
Intensive cleaning with reduced water consumption due to optimised changes in speed.
Efficient drum rib technology
Fast, optimum wetting is achieved with specially designed scoop ribs.
3-dimensional imbalance monitoring
Reliable moisture removal from wash items thanks to professional 3D sensor technology.Quality

Conforms to Machinery Directive
Miele commercial machines comply with applicable safety regulations.
Powerful heater elements
The washer-extractors are equipped with powerful heater elements for heating water quickly.
Sophisticated synchronous motor
For maximum service life: The powerful, quiet and maintenance-free synchronous motor.
Excellent durability
Professional technology ensures excellent reliability and durability for daily work routine.
Stainless-steel flange
Long service life due to high resistance to aggressive cleaning agents.
Commercial shock absorbers
Incredibly smooth running even at high spin speeds with professional shock absorbers lasting for 30,000 hours.User convenience

Delay start up to 24 hours
The programme start time can be pre-set up to 24 hours in advance for efficient planning.
Countdown indicator
After the programme has started, the display shows the cycle time remaining.
Easy to understand symbols
The control panel is characterised by logically arranged and easy to understand symbols.
Programmable controls
Whenever needed: Programmable controls enable perfect adaptation to suit individual requirements.
Washer-dryer stack
High performance in the smallest space: Installation as washer-dryer stack requires less than 0.5 m² floor space.
M Select control system
Fast, direct selection of the wash programme and effortless access to additional functions and settings.
The language can be selected easily at any time
Quick and easy: It's easy to select a different language at any time during operation.
Add laundry
Did you forget an item of laundry? Don’t worry – simply open the door and add the laundry.5,- 1.Retail price includes 23% VAT.
- 2.The Mobile app is available separately – its availability depends on the country or region.
- 3.A description of the relevant methodology can be found at the following link:
a href="https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/LittleGiant_Viruswirksamkeit_Testkriterien_Virus_effectiveness_test_criteria_2022_1.pdf" https://miele.com/LittleGiants /a - 4.European patent: EP 1354997 B1
- 5.It is possible to add laundry within the first few minutes of starting a programme.
- 6.Based on the Coloured items 60 °C programme with a warm water connection, compared to predecessor.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
