  • Miele - PWM 507 [EL DP-1] Lotus white, powder-coated - 1
Professional washing machine, Little Giants, electric heating, drain pump

PWM 507 [EL DP-1] Lotus white, powder-coated

and target group specific programmes. Capacity 7 kg in 49 min.
Colour:Lotus white, powder-coated
Product data sheet
sale price€4,883.10


Product details

  • Drum volume 64 l, load capacity 7 kg
  • Tested for intensive use –
    unparalleled Miele quality
  • 22 % less water consumption and 28 % less energy consumption5,
  • M Select control unit with many standard and special programmes
  • Future-proof networking via
    WiFi
  • View manufacturer details:
  • You will find more information about product data and your rights under the EU Data Acthere
  • Safety information

Product data sheet

Construction type
Front-loader, stackable
Range Performance
Front Lotus white
Control panel colour Stainless steel
Load in kg 7
Drum volume in l 64
Door opening [Ø] in mm 300
Door opening angle in degrees 167
Door hinge right
Maintenance-free synchronous motor
Honeycomb drum with perforated drum rear panel made of stainless steel
Suitable for hotels and restaurants
Suitable for retirement and care homes
Suitable for residential homes and apartments
Suitable for commercial laundries
Suitable for small businesses
Suitable for universities, nurseries, and schools
Suitable for hospitals
Suitable for camp sites
Suitable for sports clubs
Suitable for beauty salons, spas, and fitness centres
Suitable for domestic use
Suitable for doctors' and dentists' practices
Suitable for the petrochemicals industry
Suitable for the food-processing industry
Suitable for amusement parks & holiday complexes
Suitable for state/community care facilities
Tested virucidal efficacy
Proven hygiene
Specific water consumption for cold water connection in l/kg 7
Specific energy consumption for cold water connection in kWh/kg 0.140
Specific water consumption for hot water connection in l/kg 6.60
Specific energy consumption for hot water connection in kWh/kg 0.060
Water consumption with cold water connection in l 49
Energy consumption with cold water connection in kW 0.98
Programme duration in minutes with cold water connection 59
Water consumption with hot water connection in l 46
Energy consumption with hot water connection in kW 0.44
Programme duration in minutes with cold water and hot water connection 49
Residual moisture with cold rinse in % 48
Residual moisture with hot rinse in % 45
Spin speed in rpm 1600
g factor 704
Tested operating hours 30000
Control system M Select
Programmability
programmable
Max. delay start in h
24
Time left display
Programme sequence indicator
Control panel with easy-to-understand symbols
Language can be selected easily at any time
Detergent drawer 3 compartments
CapDosing
Flexible dispensing adapter (optional)
Maximum number of connections for liquid dispenser pumps [number]
6
Empty sensor
Heating type Electric
Electrical connection ~230V 50HZ
Heater rating in kW 5.300
Total connected load in kW 5.500
Fuse rating in A 25
Cold water [number] 1x 1/2" hose w/ 3/4" th. union
Hot water [number] 1x 1/2" hose w/ 3/4" th. union
Drain pump DN 22
External dimensions, height in mm 850
External dimensions, width in mm 596
External dimensions, depth in mm 714
External dimensions, gross height in mm 944
External dimensions, gross width in mm 660
External dimensions, gross depth in mm 768
Net weight in kg 98
Gross weight in kg 102
Maximum floor load in N 2820
Emission sound pressure level in the workplace ≤70 dB(A) re 20 µPa
Heat dissipation into the room in MJ/h 1
3-dimensional imbalance monitoring
Commercial shock absorbers
Hard-wearing stainless-steel flange
Disinfection rinse
EcoSpeed
Pre-ironing
Efficient drum rib technology
Temperature monitoring
Special heater element
Automatic load control
Flow meter
LED drum lighting, class 1
Communication slot
Add laundry
Machine-independent accessories
Load capacity for the “eco 40–60” program in lbs. 7

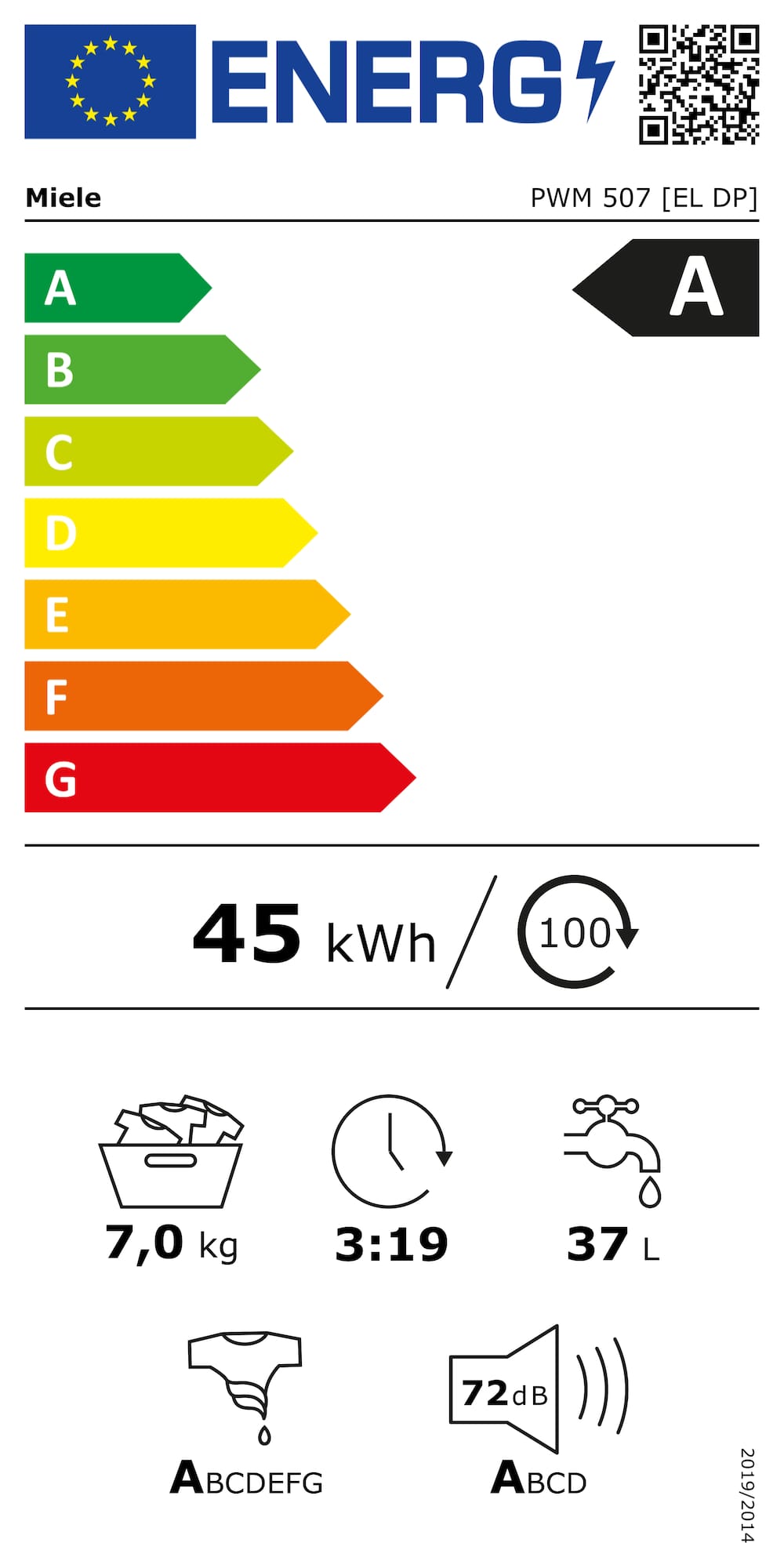

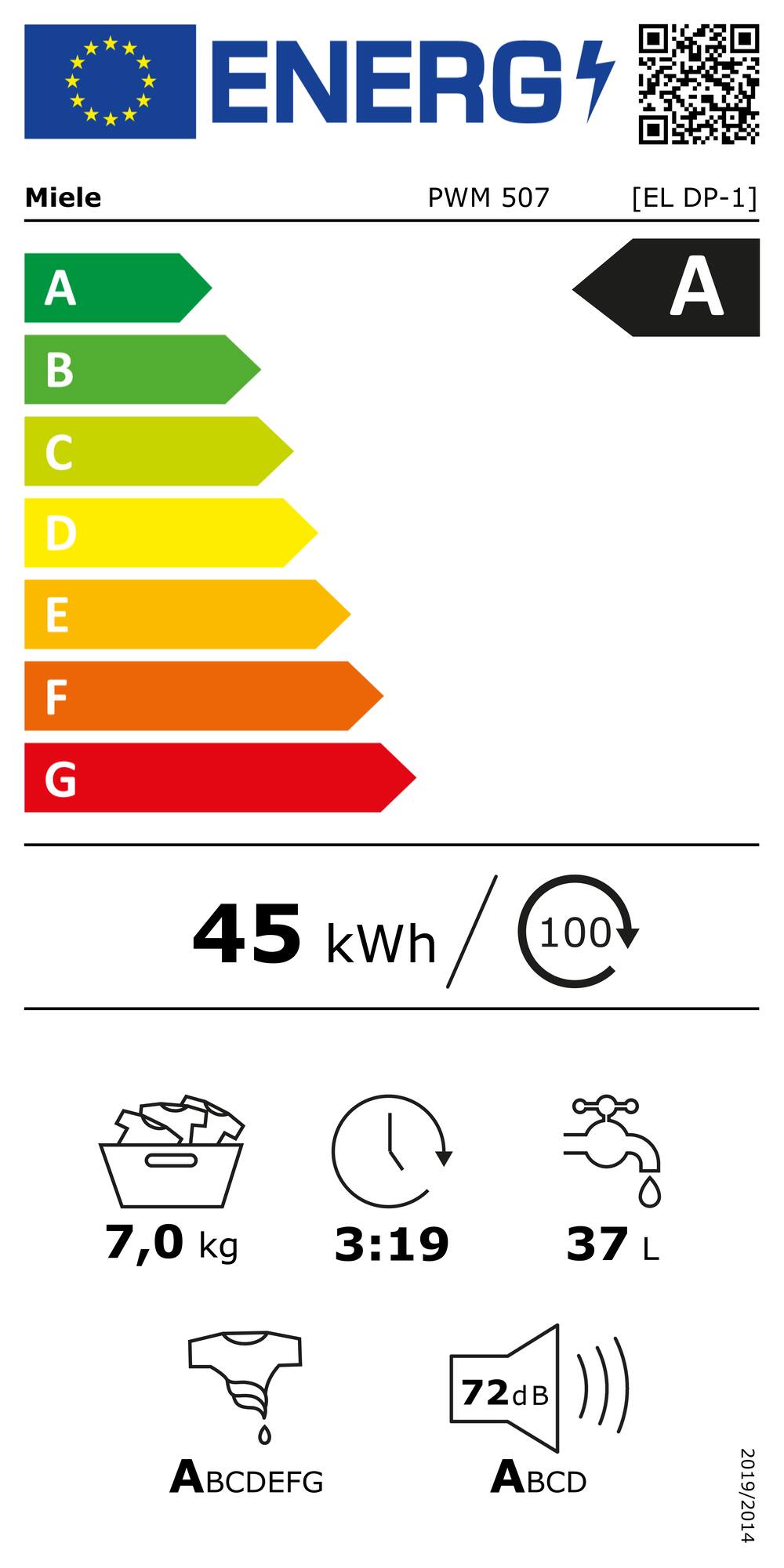

Energy efficiency class (A–G) A
Spin efficiency class (A–G) A
Weighted energy consumption per 100 cycles in the “eco 40–60” program in kWh 45
Weighted water consumption per cycle in the “eco 40–60” program in l 37
Noise emission rating (spin cycle) (A–D) A
Noise emission during spin cycle in dB(A) re 1 pW 72
Program runtime in the “eco 40–60”program in min 199
Recycling rate in % 95
Payment system (optional)
Optical interface for service access
Peak-load negotiation / energy management (optional)
WiFi
LAN module (optional)
WiFiConn@ct
CE
VDE-EMC
VDE
Splash-proof safety rating IPX4
UKCA
WEEE
Complies with Machinery Directive 2006/42/EC
EAN 4002516134411
  • Quick and efficient

    Quick and efficient

    Short programme cycles

    Premium commercial technology allows you to benefit from the shortest programme cycles.

  • Economical and efficient

    Economical and efficient

    Low consumption values

    Economical and efficient: Miele Professional commercial laundry machines impress with low consumption values.

  • Language-neutral operation

    Language-neutral operation

    Easy to understand symbols

    The control panel is characterised by logically arranged and easy to understand symbols.

  • Washing & drying on less than 0.5 m² of fl. sp.

    Washing & drying on less than 0.5 m² of fl. sp.

    Washer-dryer stack

    High performance in the smallest space: Installation as washer-dryer stack requires less than 0.5 m² floor space.

  • Select the right programme easily

    Select the right programme easily

    M Select control system

    Fast, direct selection of the wash programme and effortless access to additional functions and settings.

  • Wash a mountain of laundry in a short time

    Wash a mountain of laundry in a short time

    Excellent capacity thanks to process optimisation

    First-class efficiency thanks to short programme durations, ensuring high turnaround times.

  • Perfect wash results

    Perfect wash results

    Honeycomb drum with perforated drum rear panel

    Perfect wash results even sooner thanks to faster wetting.

  • A new balance of mechanical action and water usage

    A new balance of mechanical action and water usage

    EcoSpeed – patented wash rhythm3,

    Intensive cleaning with reduced water consumption due to optimised changes in speed.

  • It's easy

    It's easy

    The language can be selected easily at any time

    Quick and easy: It's easy to select a different language at any time during operation.

  • Perfect results

    Perfect results

    Efficient drum rib technology

    Fast, optimum wetting is achieved with specially designed scoop ribs.

  • Reduced creasing

    Reduced creasing

    Pre-ironing

    The “Pre-ironing” function reduces the need for ironing.

  • Spinning at a professional standard

    Spinning at a professional standard

    3-dimensional imbalance monitoring

    Reliable moisture removal from wash items thanks to professional 3D sensor technology.

  • Professional appliance technology

    Professional appliance technology

    Stainless-steel flange

    Long service life due to high resistance to aggressive cleaning agents.

  • For optimum smooth running

    For optimum smooth running

    Commercial shock absorbers

    Incredibly smooth running even at high spin speeds with professional shock absorbers lasting for 30,000 hours.

  • Effective against viruses – scientifically proven

    Effective against viruses – scientifically proven

    Proven hygiene

    Our washing machines in the Little Giants series remove more than 99.9 % of all viruses (including coronaviruses).

Connectivity

Secure data exchange
Secure data exchange

LAN interface

The LAN interface enables secure communication in the local network via a LAN cable.
Wireless data exchange
Wireless data exchange

WLAN interface

The WLAN interface enables wireless communication in the local network.
Self-service operation
Self-service operation

Connection of payment system

Optimum use in self-service areas is possible thanks to the connection for payment systems.
Future-proof connections
Future-proof connections

WiFiConn@ct

Simple networking via WiFiConn@ct: connect via smartphone/tablet and app1, and retrieve status updates.

Efficiency

More space
More space

Large capacity

Miele Professional washer-extractors have a large capacity drum to accommodate large loads of laundry.
Avoiding electricity voltage peaks
Avoiding electricity voltage peaks

Peak load cut-out

Comprehensive energy management by integrating the machines into an energy management system.
Economical and efficient
Economical and efficient

Low consumption values

Economical and efficient: Miele Professional commercial laundry machines impress with low consumption values.
Efficient savings
Efficient savings

Precise automatic load recognition

Water and energy consumption are automatically adjusted for the load size.
Quick and economical
Quick and economical

Efficient hot water connection

Connection to a hot water supply enables excellent savings in time and energy with minimal effort.
Optimised dispensing of liquid media
Optimised dispensing of liquid media

EasyDos

Dispensing of liquid detergent can be set individually to suit requirements.
Wash a mountain of laundry in a short time
Wash a mountain of laundry in a short time

Excellent capacity thanks to process optimisation

First-class efficiency thanks to short programme durations, ensuring high turnaround times.

Hygiene

Maximum hygiene
Maximum hygiene

Disinfection rinse

A final rinse with a special high temperature/holding time provides additional reassurance with regard to hygiene.
We keep our promises
We keep our promises

High temperature consistency

For reliable cleaning results and maximum hygiene, the temperature of the washing water is monitored constantly.
Effective against viruses – scientifically proven
Effective against viruses – scientifically proven

Proven hygiene

Our washing machines in the Little Giants series remove more than 99.9 %2, of all viruses (including coronaviruses).
Excellent hygiene quality – independently verified
Excellent hygiene quality – independently verified

Proven hygiene

The combination of disinfection programmes and high safety standards has been verified by an independent jury.

Performance

Quick and efficient
Quick and efficient

Short programme cycles

Premium commercial technology allows you to benefit from the shortest programme cycles.
Every drop counts
Every drop counts

Precisely controlled water consumption

The flow meter monitors the volume of water intake precisely for maximum efficiency.
Intensive dewatering for high energy efficiency
Intensive dewatering for high energy efficiency

Excellent spin performance

Very low residual moisture on account of high g-factor.
Perfect wash results
Perfect wash results

Honeycomb drum with perforated drum rear panel

Perfect wash results even sooner thanks to faster wetting.
A new balance of mechanical action and water usage
A new balance of mechanical action and water usage

EcoSpeed – patented wash rhythm3,

Intensive cleaning with reduced water consumption due to optimised changes in speed.
Perfect results
Perfect results

Efficient drum rib technology

Fast, optimum wetting is achieved with specially designed scoop ribs.
Spinning at a professional standard
Spinning at a professional standard

3-dimensional imbalance monitoring

Reliable moisture removal from wash items thanks to professional 3D sensor technology.

Quality

For the protection of personnel in the workplace
For the protection of personnel in the workplace

Conforms to Machinery Directive

Miele commercial machines comply with applicable safety regulations.
Truly powerful
Truly powerful

Powerful heater elements

The washer-extractors are equipped with powerful heater elements for heating water quickly.
Maintenance-free and quiet motor
Maintenance-free and quiet motor

Sophisticated synchronous motor

For maximum service life: The powerful, quiet and maintenance-free synchronous motor.
Ultimate quality
Ultimate quality

Excellent durability

Professional technology ensures excellent reliability and durability for daily work routine.
Professional appliance technology
Professional appliance technology

Stainless-steel flange

Long service life due to high resistance to aggressive cleaning agents.
For optimum smooth running
For optimum smooth running

Commercial shock absorbers

Incredibly smooth running even at high spin speeds with professional shock absorbers lasting for 30,000 hours.

User convenience

Well-planned laundry care
Well-planned laundry care

Delay start up to 24 hours

The programme start time can be pre-set up to 24 hours in advance for efficient planning.
An eye on the time
An eye on the time

Countdown indicator

After the programme has started, the display shows the cycle time remaining.
Let there be light
Let there be light

Drum lighting

No laundry item is overlooked when unloading thanks to the perfectly lit honeycomb drum.
Language-neutral operation
Language-neutral operation

Easy to understand symbols

The control panel is characterised by logically arranged and easy to understand symbols.
Increased versatility
Increased versatility

Programmable controls

Whenever needed: Programmable controls enable perfect adaptation to suit individual requirements.
Washing & drying on less than 0.5 m² of fl. sp.
Washing & drying on less than 0.5 m² of fl. sp.

Washer-dryer stack

High performance in the smallest space: Installation as washer-dryer stack requires less than 0.5 m² floor space.
Select the right programme easily
Select the right programme easily

M Select control system

Fast, direct selection of the wash programme and effortless access to additional functions and settings.
It's easy
It's easy

The language can be selected easily at any time

Quick and easy: It's easy to select a different language at any time during operation.
Reduced creasing
Reduced creasing

Pre-ironing

The “Pre-ironing” function reduces the need for ironing.
Open the door and add laundry
Open the door and add laundry

Add laundry

Did you forget an item of laundry? Don’t worry – simply open the door and add the laundry.4,

Matching products and accessories

Stacking kit, stainless steel

Stacking kit, stainless steel

For secure installation as a washer-dryer stack.

€255.84
Communication box

Communication box

for setting up a connection with external systems.

€198.03

Downloads

EU declaration of conformity
PDF
Downloads
EU declaration of conformity
PDF
Downloads
Product sheet
PDF
Downloads
User manual
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
Energy label
PDF
Downloads
Energy label
PNG
Downloads
Product fiche
PDF
Downloads
Energy label
PDF
Downloads
Hygiene Certificate
PDF
Downloads
  • 1.The Mobile app is available separately – its availability depends on the country or region.
  • 2.A description of the relevant methodology can be found at the following link: a href="https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/LittleGiant_Viruswirksamkeit_Testkriterien_Virus_effectiveness_test_criteria_2022_1.pdf" https://miele.com/LittleGiants /a
  • 3.European patent: EP 1354997 B1
  • 4.It is possible to add laundry within the first few minutes of starting a programme.
  • 5.Based on the Coloured items 60 °C programme with a warm water connection, compared to predecessor.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
