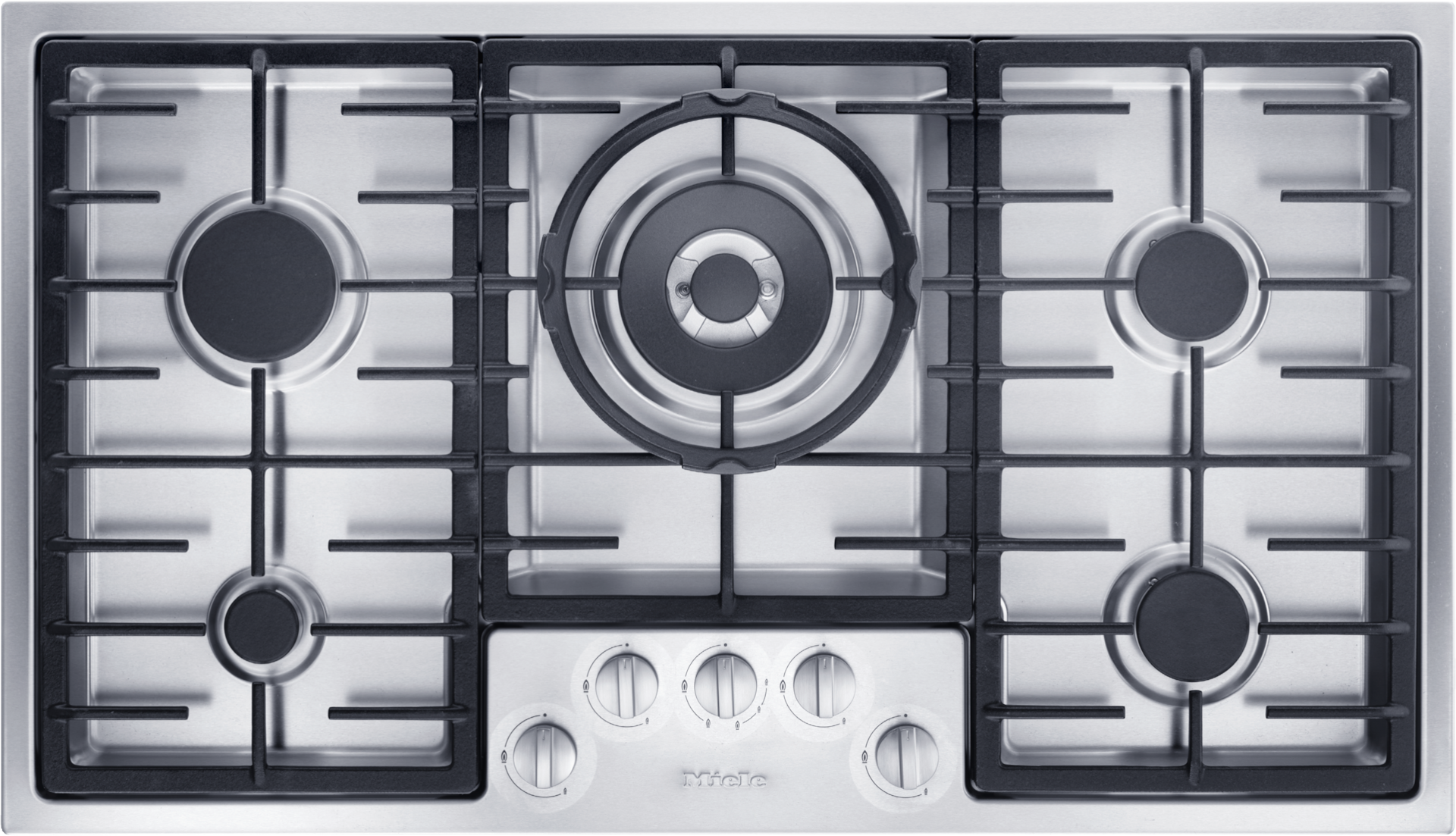

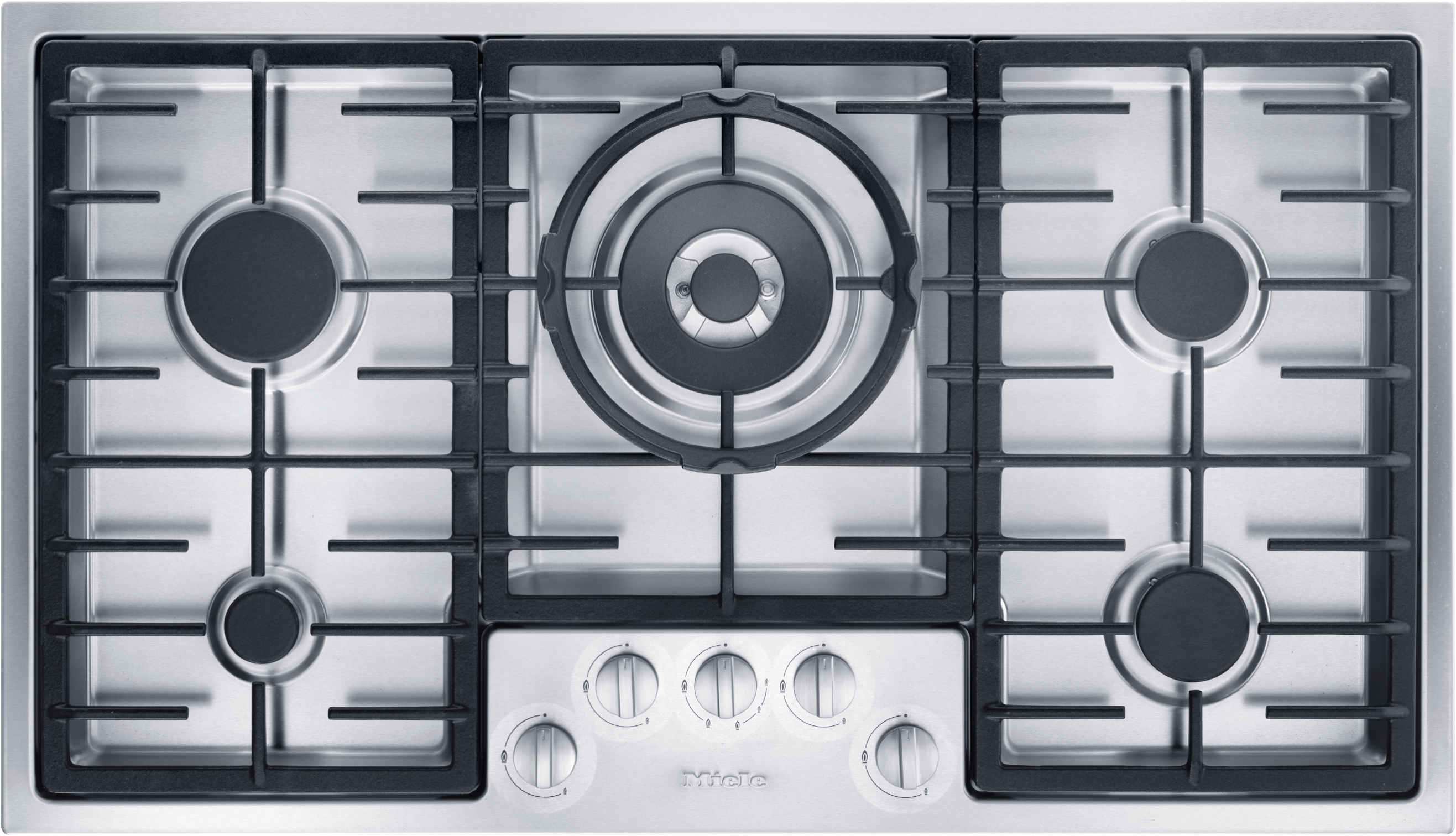

Gas hobPLATINUM
KM 2357-1
with electronic functions for maximum safety and user convenience.sale price€2,379.99
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
You can select the following services for this product in your basket:
- Recycle Old Appliance (€0.00)
Product details
- Optimal - single-handed operation via rotary dials andQuickStartLoading...
- Professional design - 892 mm wide stainless steel trough
- Particularly versatile - 5 burners incl. 1 dual wok
- Extremely safe - GasStop&Restart function
- Easy cleaning - dishwasher-safe ComfortClean pot rests
- View manufacturer details:
- Safety information
Heating type Gas
Independent of cooker
Cast iron pot rests (matt black enamelled)
Loading...
Flush-fit stainless steel hob
Miele logo embossed in stainless steel
Number of cooking zones 5
Small burner in kW 1
Medium burner in kW 1.70
Large burner in kW 2.70
Dual wok burner in kW 4.50
Position front left
Type Economy burner
Position rear left
Type High-speed burner
Position Centred
Type Dual wok burner
Position rear right
Type Standard burner
Position front right
Type Standard burner
Operation via knobs
Electronic ignition with single-hand operation
Loading...
QuickStart
Loading...
Dishwasher-proof pot rests
Loading...
GasStop & ReStart
Loading...
Dimensions (H x W x D) in mm 105 x 892 x 512
Dimensions (W x D) in mm 892 x 105 x 512
Dimensions in mm (width) 892
Dimensions in mm (height) 105
Dimensions in mm (depth) 512
Cut-out dimensions (W x D) with surface-mounted installation in mm 880 mm x 500 mm
Cut-out dimensions (W x D) with flush-fit installation in mm 880/892 x 500/512
Casing height incl. connection box in mm 101
Cutout dimensions in mm (width) with surface-mounted installation 880 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Internal cutout dimensions in mm (width) with flush installation 880
Internal cutout dimensions in mm (depth) with flush installation 500
External cutout dimensions in mm (width) with flush installation 892
External cutout dimensions in mm (depth) with flush installation 512
Weight in kg 20
Total rated load in kW 0
Position of gas connection Hinten links
Voltage in V 220-240
Frequency in Hz 50-60
Length of supply lead in m 1.4
Jets for liquid gas
Wok ring
Small trivet
EAN 4002516120094
Jets for liquid gas
Wok ring
Small trivet
Efficiently protects and makes cleaning easier
ComfortClean pot rests
Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.
Switch on with a flick of the wrist
QuickStart
No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Automatic reignition for extra safety
GasStop & ReStart
Safe cooking: Automatic re-ignition for flame failure Should this prove unsuccessful, the gas supply is turned off immediately.
Perfect wok kitchen with gas hobs
Wok burner
Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.
The innovative
Gas hobs with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.
GasStop & ReStart
Safe cooking: Automatic re-ignition for flame failure Should this prove unsuccessful, the gas supply is turned off immediately.Wok burner
Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.Gas hobs with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.QuickStart
No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Electronic ignition and single-handed controls
No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
Front knob controls
Easy controls to regulate: Convenient power level control via plastic or metal knobs.ComfortClean pot rests
Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.
Enamelled pot rests and burner parts
Nothing lasts longer and is easier to clean: enamelled cast-iron pot rests and burners with PerfectClean.Matching products and accessories
Downloads
Product fiche
DownloadsPDF
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
KM 2357 (Installation drawing)
1. Front, 2. Building-in depth, 3. Gas connection R 1/2 - ISO 7-1 (DIN EN 10226), 4. Mains connection box with mains connection cable L 2000, 5. Electronics housing - max. building-in depth, including electronics housing, 101 mm, 5. Stepped cut-out, , Building-in information:, Flush fit cooktops are only suitable for installation in granite, marble, or tiled worktops., This is to ensure that the underside of the cooktop is accessible after installation and that the casing can be easily removed for maintenance., As the ceramic glass and the worktop cut-out have a certain dimensional tolernace, gap can vary (min. 1 mm). POSTSCRIPT
Descriptions
KM 2357 (Installation drawing) - Cut outs for marble worktops
6. Stepped cut-out, , Building-in information:, Flush fit cooktops are only suitable for installation in granite, marble, or tiled worktops., This is to ensure that the underside of the cooktop is accessible after installation and that the casing can be easily removed for maintenance., As the ceramic glass and the worktop cut-out have a certain dimensional tolernace, gap can vary (min. 1 mm). POSTSCRIPT
Descriptions
KM 2357 (Installation drawing) - Installation in solid wood or tiled worktops
1. Worktop, 2. Fixing bracket, 3. Cooktop, 4. Wooden frame (to be provided on site), , Building-in information:, Flush fit cooktops are only suitable for installation in granite, marble, or tiled worktops., This is to ensure that the underside of the cooktop is accessible after installation and that the casing can be easily removed for maintenance., As the ceramic glass and the worktop cut-out have a certain dimensional tolernace, gap can vary (min. 1 mm). POSTSCRIPT
Descriptions
KM 2357 (Skizze) Installation in granite and marble worktops
1. Worktop, 2. Gap, 3. Cooktop, , Building-in information:, Flush fit cooktops are only suitable for installation in granite, marble, or tiled worktops., This is to ensure that the underside of the cooktop is accessible after installation and that the casing can be easily removed for maintenance., As the ceramic glass and the worktop cut-out have a certain dimensional tolernace, gap can vary (min. 1 mm). POSTSCRIPT
