Name: KM 3034-1
Brand: Miele
SKU: 10939800
Price: 2149.99 EUR
Availability: InStoreOnly
Rating: 4 (1 reviews)

Free delivery available on all orders over €100 | Klarna available at checkout.

Home
Hobs
Gas hobs
KM 3034-1

01 / 02

Product data sheet

€2,149.99

A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.

Product details

Optimal - single-handed operation via rotary dials and
QuickStart

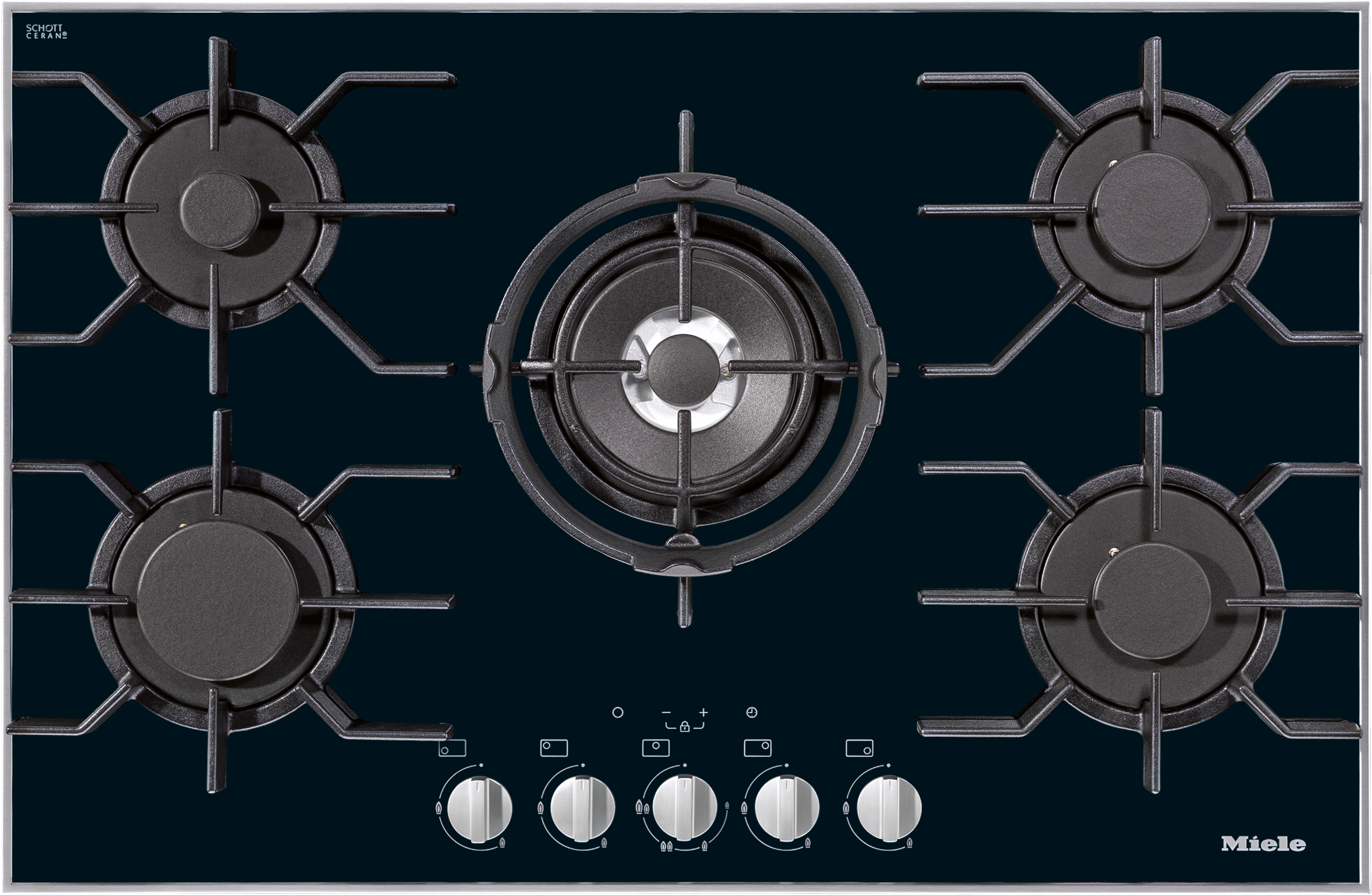

Elegant design – 806 mm wide gas hob on glass for surface-mounted installation
Particularly versatile - 5 burners incl. 1 dual wok
Extremely safe - GasStop&Restart function
Easy cleaning - dishwasher-safe ComfortClean pot rests
View manufacturer details:
Safety information

Product data sheet

Model identifier: KM 3034-1
Manufacturer material number: 10939800
EAN number: 4002516120216
Marketing class: Gold

Heating type: Gas

Independent of cooker

Elegant glass ceramic surface
Ceramic surface colour: Black
Cast iron pot rests (matt black enamelled)

Number of cooking zones: 5

Small burner in kW: 1
Medium burner in kW: 1.70
Large burner in kW: 2.70
Dual wok burner in kW: 4.70

Position: front left
Type: High-speed burner

Position: rear left
Type: Economy burner

Position: Centred
Type: Dual wok burner

Position: rear right
Type: Standard burner

Position: front right
Type: Standard burner

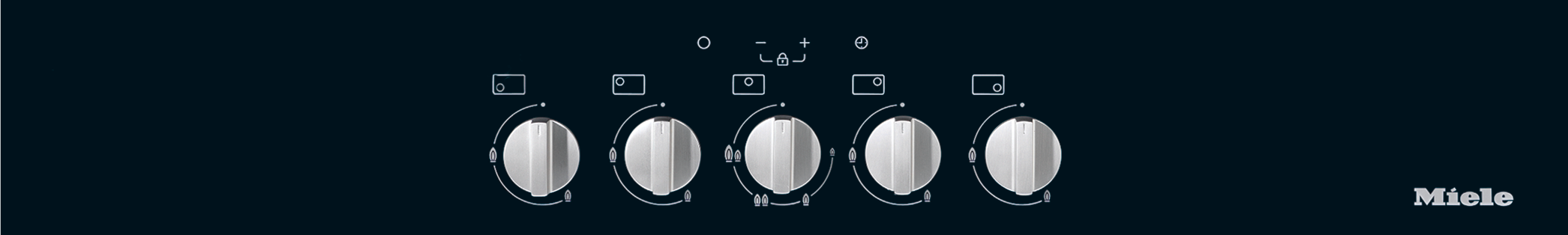

Operation via knobs
Display colour: Red
Electronic ignition with single-hand operation
QuickStart

Easy to clean ceramic glass
Dishwasher-proof pot rests

Heat indicator
Operational indicator
GasStop & ReStart

Dimensions (H x W x D) in mm: 53 x 806 x 526
Dimensions (W x D) in mm: 806 x 53 x 526
Dimensions in mm (width): 806
Dimensions in mm (height): 53
Dimensions in mm (depth): 526
Cut-out dimensions (W x D) with surface-mounted installation in mm: 780 mm x 500 mm
Casing height incl. connection box in mm: 78
Cutout dimensions in mm (width) with surface-mounted installation: 780 mm
Cutout dimensions in mm (depth) with surface-mounted installation: 500 mm
Weight in kg: 20
Total rated load in kW: 0
Position of gas connection: Hinten rechts
Voltage in V: 220 - 240
Frequency in Hz: 50 - 60
Length of supply lead in m: 1.4

Wok ring
Small trivet

EAN: 4002516120216

What's included

Wok ring
Small trivet

Efficiently protects and makes cleaning easier
ComfortClean pot rests
Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.
Switch on with a flick of the wrist
QuickStart
No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Automatic reignition for extra safety
GasStop & ReStart
Safe cooking: Automatic re-ignition for flame failure Should this prove unsuccessful, the gas supply is turned off immediately.
Perfect wok kitchen with gas hobs
Wok burner
Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.
The innovative
Gas hobs with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.

Safety

Automatic reignition for extra safety

GasStop & ReStart

Safe cooking: Automatic re-ignition for flame failure Should this prove unsuccessful, the gas supply is turned off immediately.

Features

Perfect wok kitchen with gas hobs

Wok burner

Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.

The innovative

Gas hobs with electronic controls

More safety and convenience: Intelligent features make cooking with gas a great choice.

Design

A gas hob to suit every kitchen style

Individual design

Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.

User convenience

Switch on with a flick of the wrist

QuickStart

No need to press or hold the control: convenient rotary electronic controls switch the burners on.

Comfortably reignite the flame

Electronic ignition and single-handed controls

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.

Everything under control

Front knob controls

Easy controls to regulate: Convenient power level control via plastic or metal knobs.

Maintenance

Efficiently protects and makes cleaning easier

ComfortClean pot rests

Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.

High quality features for a long life

Enamelled pot rests and burner parts

Nothing lasts longer and is easier to clean: enamelled cast-iron pot rests and burners with PerfectClean.

Matching products and accessories

KMTS 5704-3

Pan set (4-piece)

made of robust and high-quality stainless steel, lid with side steam outlet.

iittala cookware, set of 4 pans

from the "All Steel" range by Harri Koskinen, satin finish exclusively f. Miele.

Fiskars “All Steel” starter pan set (4 pieces)

stainless steel cookware with a matt brushed finish exclusively for Miele.

KMBP 2800-3

Frying pan (28 cm)

made from stainless steel for lasting performance even at high temperatures.

KMKT 2460-3

Casserole (24 cm / 6 l)

made of robust and high-quality stainless steel, lid with side steam outlet.

iittala frying pan with nonstick coating

from the matt brushed “All Steel” range, exclusively by Miele.

GP CL KM 0252 L

Ceramic and stainless steel cleaner, 250 ml

For best cleaning results and safe use.

GP GS KM 0011 M

Scraper for cleaning

For ceramic glass hobs.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

MicroCloth HyClean, 1 cloth

Antibacterial multi-purpose cloth for improved hygiene.

Downloads

Operating instructions/Installation instructions

PDF

Download

Product sheet

PDF

Download

Warranty conditions

PDF

Download

dwg

ZIP

Download

fbx

ZIP

Download

ifc

ZIP

Download

rfa

ZIP

Download

rvt

ZIP

Download

Product fiche

PDF

Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000008/200000851/20000085157.png

Descriptions

KM 3034-1 G (Installation drawing)

1. Front, 2. Casing depth, 3. Mains connection box with mains connection cable L = 2000 mmm, 4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226)

POSTSCRIPT

Download

1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.

KM 3034-1
