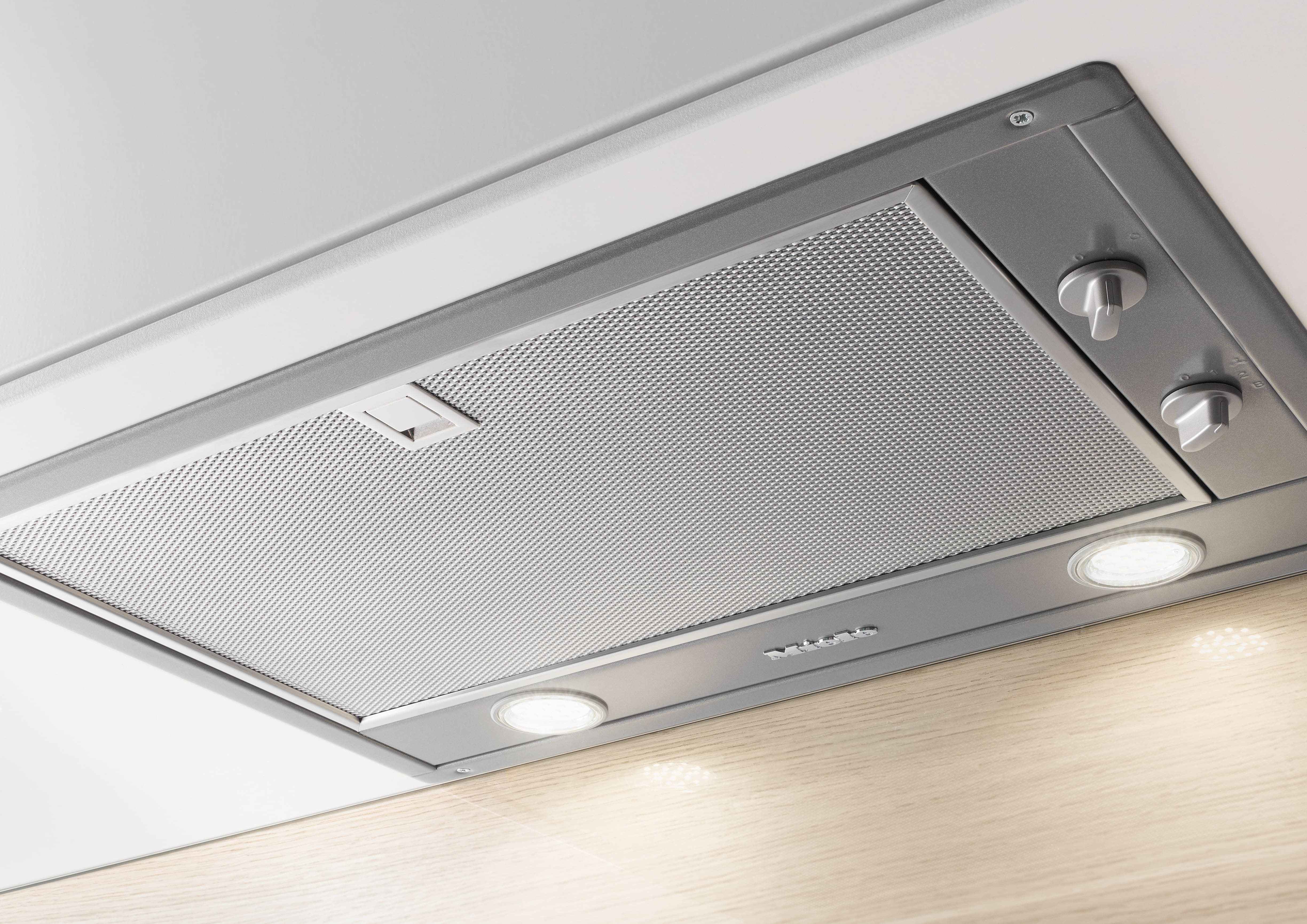

  • Miele - DA 2450 Stainless steel – Cooker hoods - 2

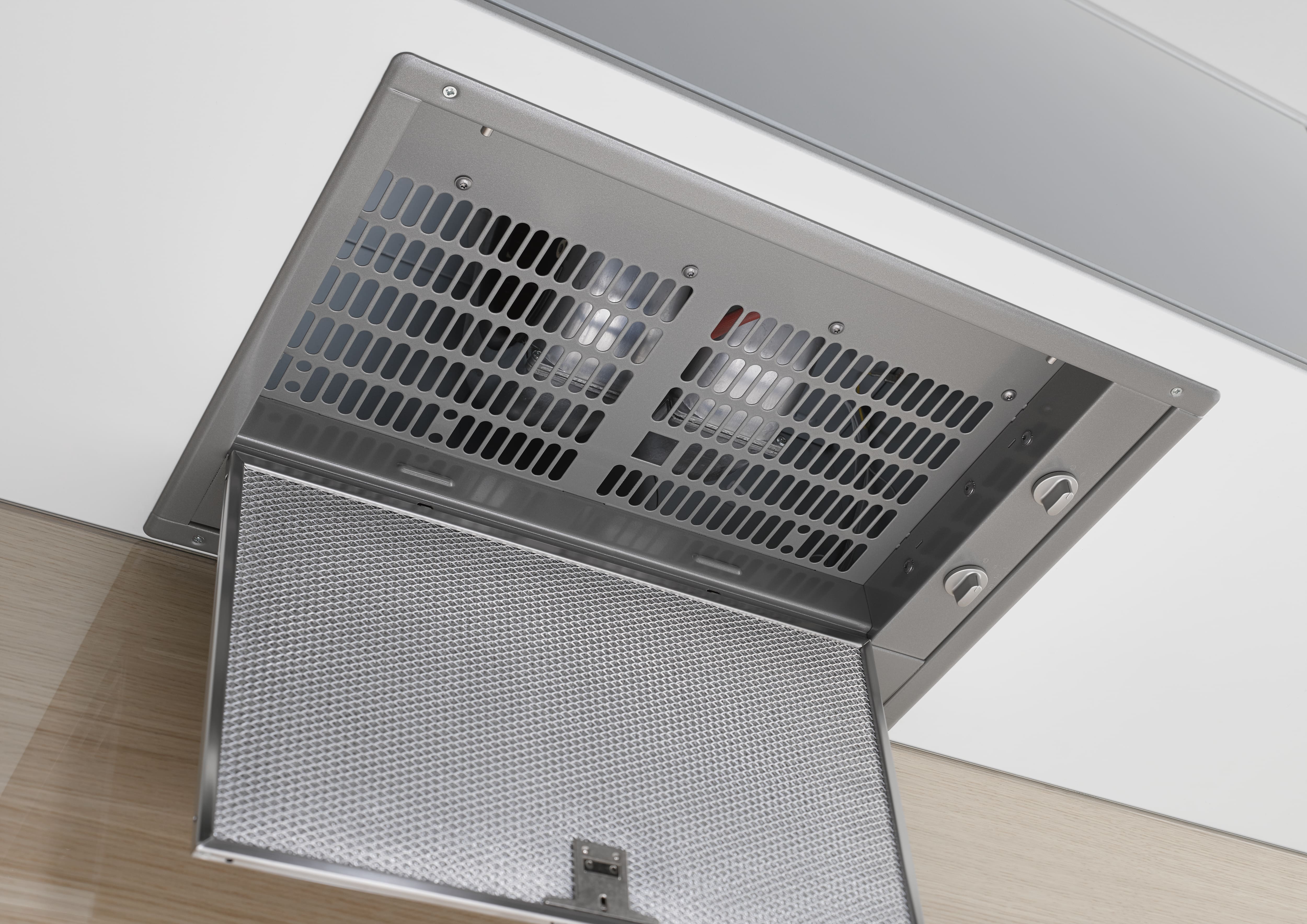

  • Miele - DA 2450 Stainless steel – Cooker hoods - 3

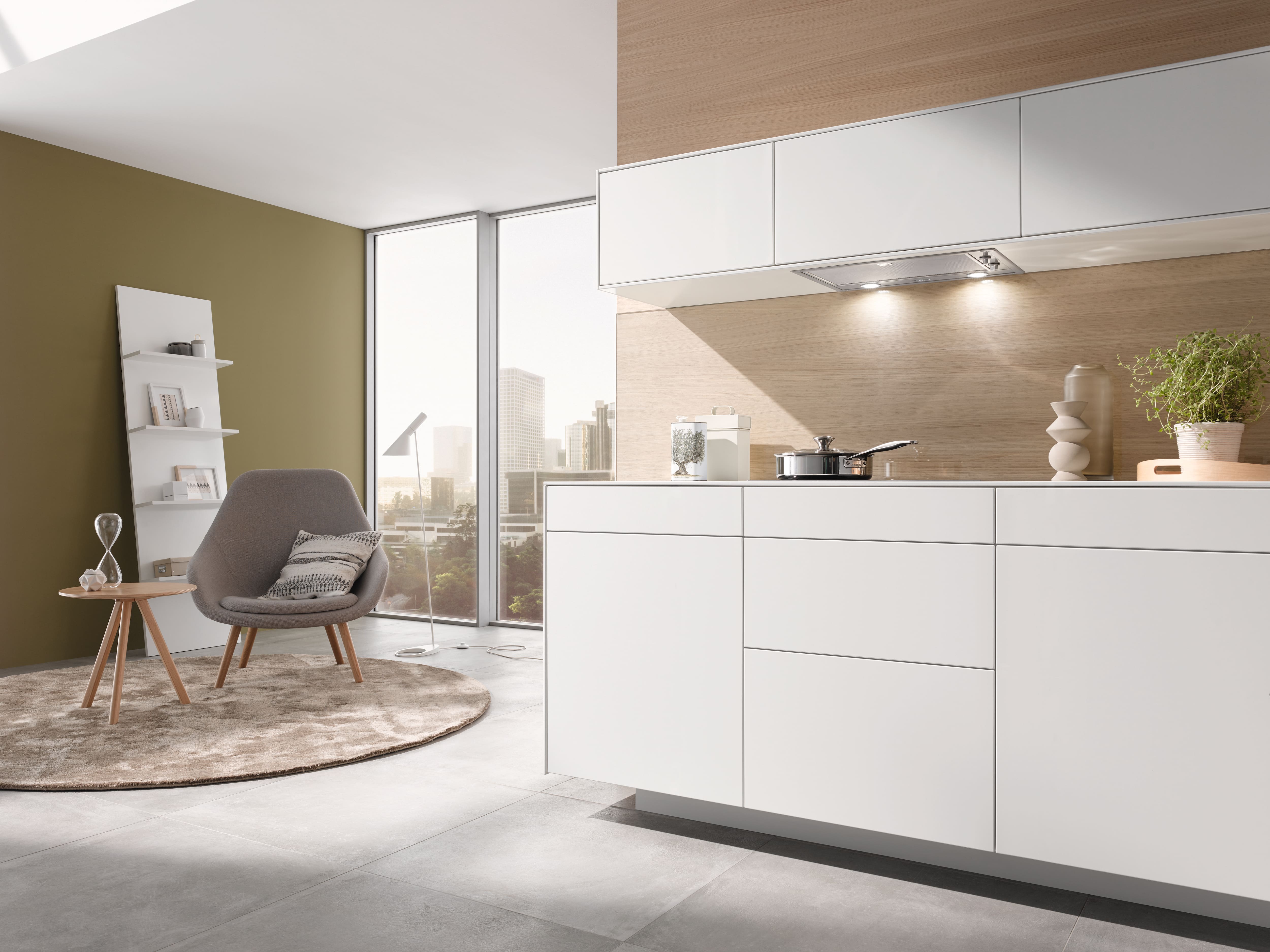

  • Miele - DA 2450 Stainless steel – Cooker hoods - 4

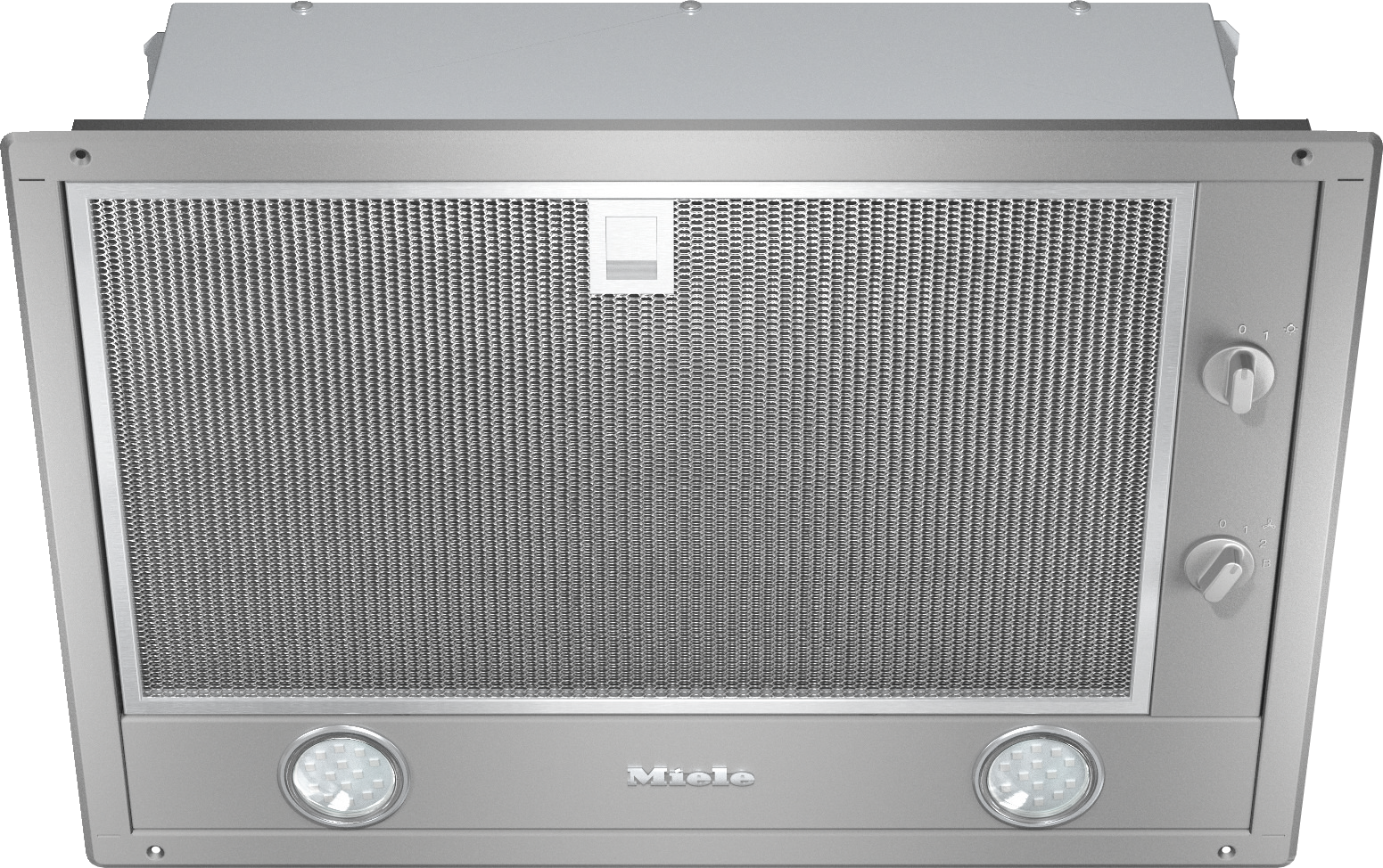

Extractor unit

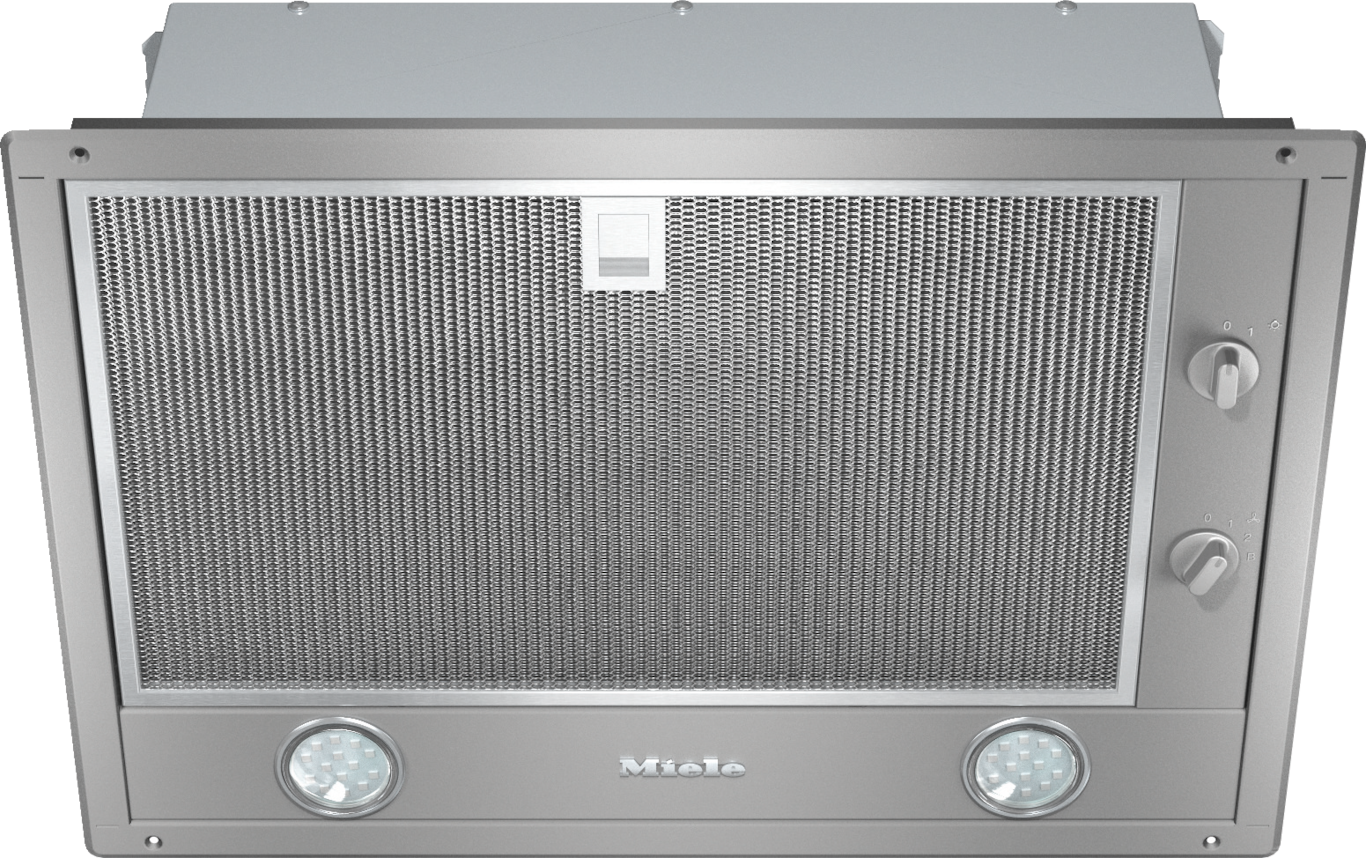

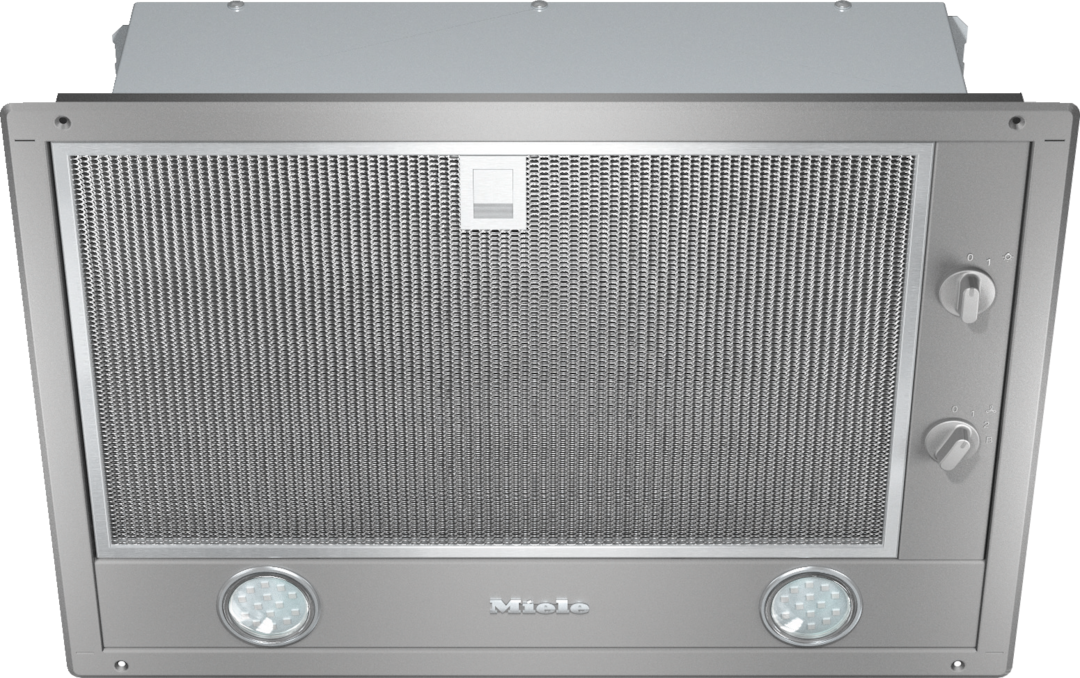

DA 2450 Stainless steel

with energy-efficient LED lighting and rotary dials for easy use
Colour:Stainless steel
Product data sheet
sale price€549.99
12
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.




Product details

  • Customised kitchen design - fully integrated in 532 mm width
  • Powerful - 590 m3/h on the booster setting
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Safe and easy to clean -
    Miele CleanCover
  • Suitable for every home - for extraction or recirculation
  • View manufacturer details:
  • Safety information

Product data sheet

Model identifier
DA 2450
Manufacturer material number
10568390
EAN number
4002515792209
Marketing class
Silver
Integrated extractor
Type of air guide
Can be retrofitted
Recirculation conversion kit (order separately)
DUU 151
Active charcoal filter (order separately)
DKF 15-P
Colour
Stainless steel
Electronic controls
Rotary knob
Controls
Rotary knobs
Power levels (number without Booster level)
2
Booster levels
1
Easy-to-clean canopy interior – CleanCover
Energy efficiency class (A+++ to D)
A
Annual energy consumption in kWh/year
52.6
Fluid dynamic efficiency class
A
Lighting efficiency class
A
Grease filtering efficiency class
B
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)
1
Number x W
2 x 3 W
Light intensity in Lx
330 lx
Colour temperature in K
3000 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591
230
Air throughput in Level 2 (m³/h) according to EN 61591
350
Air throughput in Booster level 1 (m³/h) according to EN 61591
590
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
47
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
54
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
66
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
32
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
40
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
52
Air throughput in Level 1 (m³/h) according to EN 61591
185
Air throughput in Level 2 (m³/h) according to EN 61591
305
Air throughput in Booster level 1 (m³/h) according to EN 61591
525
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
52
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
61
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
71
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
38
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
47
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
57
Canopy dimensions (W x H x D) in mm
532 x 50 x 372
Canopy width in in. (mm)
532
Canopy height in in. (mm)
50
Depth of hood canopy in in. (mm)
372
Minimum height above electric hobs in mm
450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
10.2
Length of supply lead in m
1.5
Standard plug fitted
Total rated load in kW
0.226
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm
150
Non-return flap
EAN
4002515792209

What's included

Non-return flap

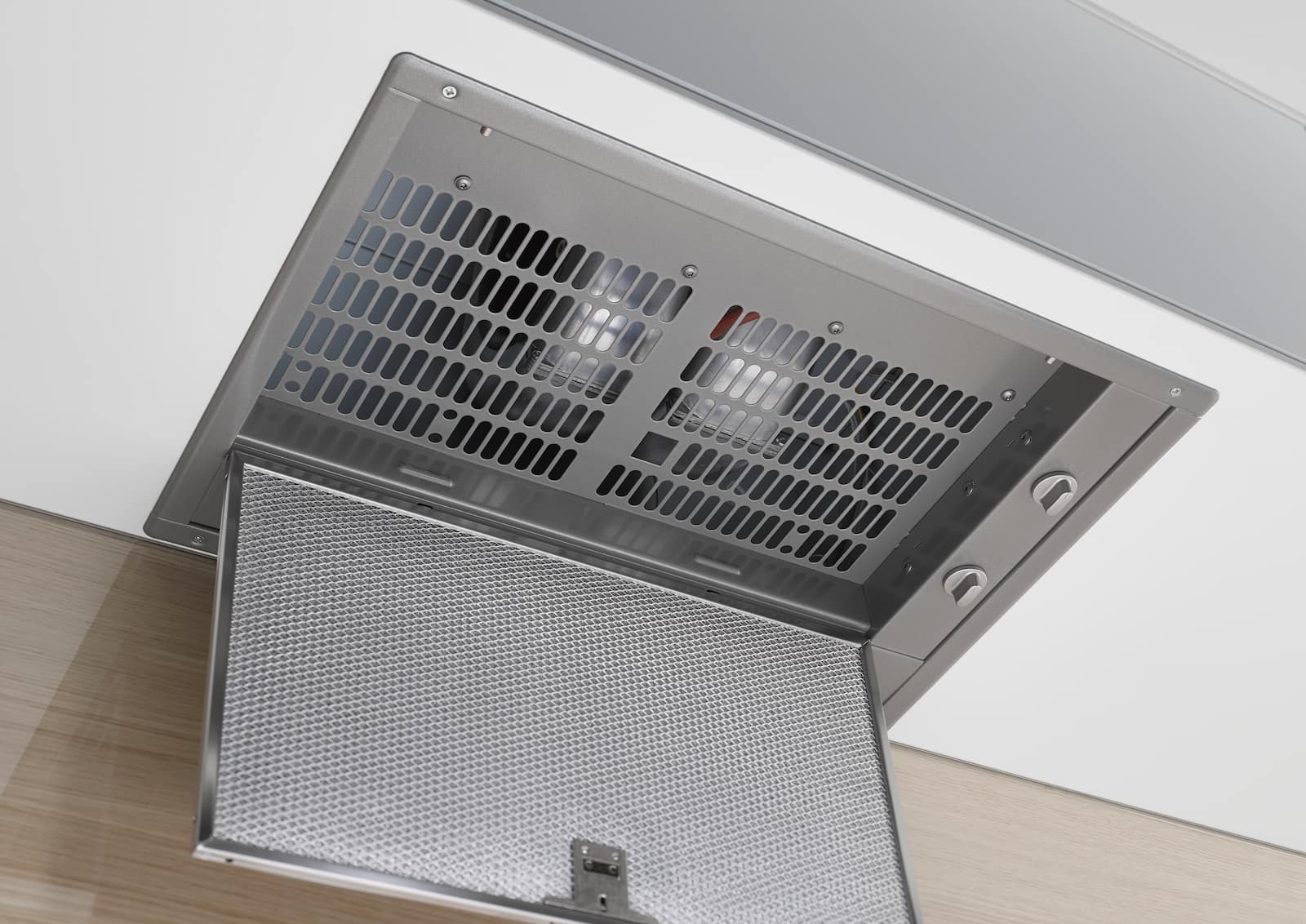

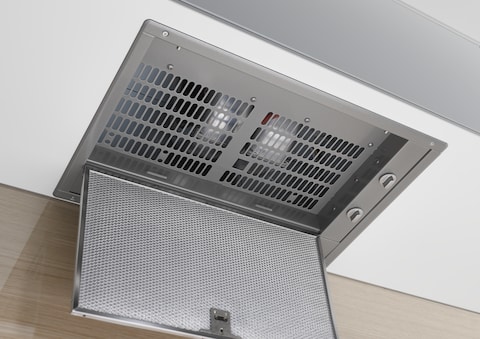

  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

Downloads

Installation plan
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

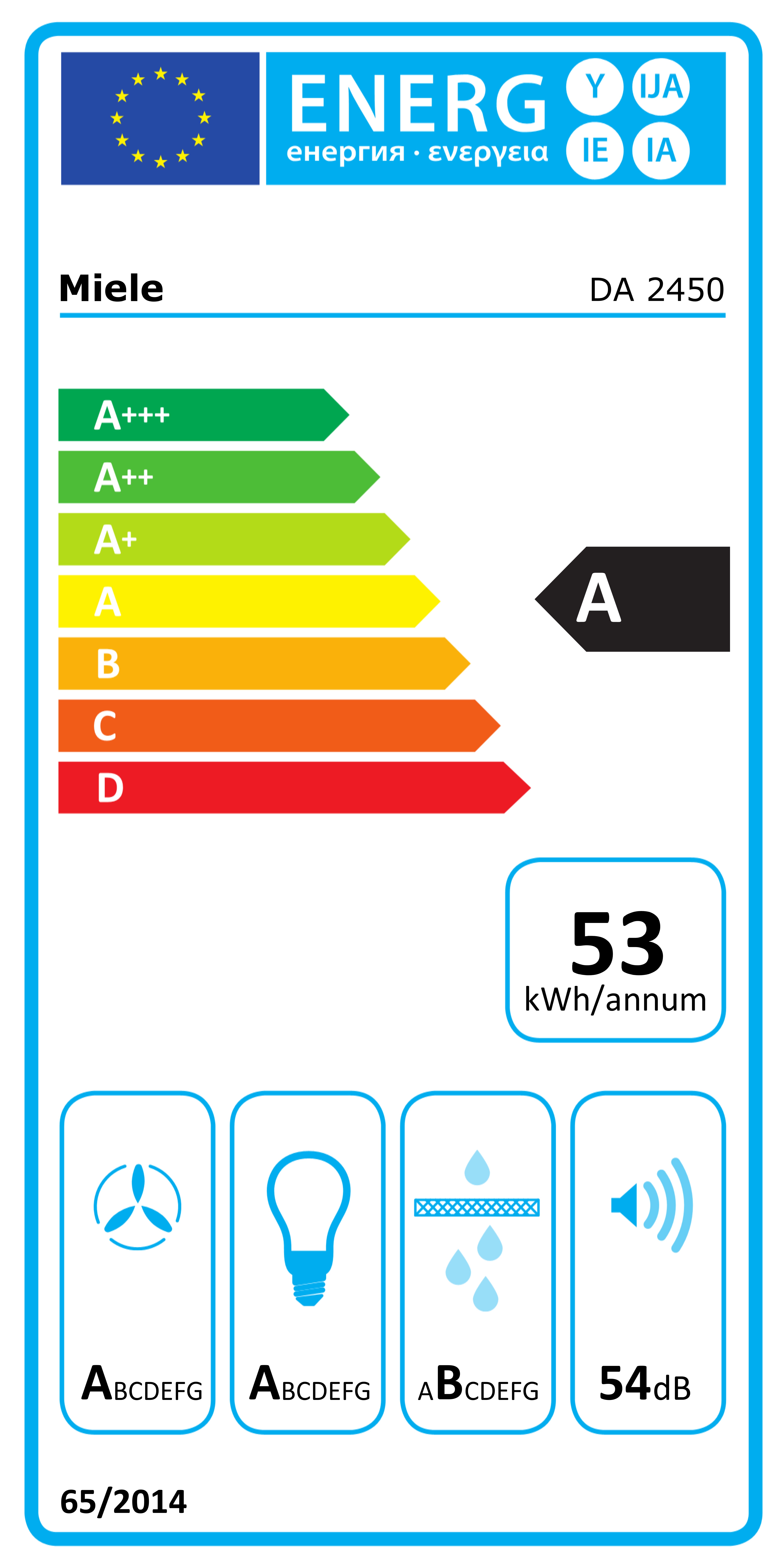

Energy label
PDF
Download
Energy label
PNG
Download
Product fiche
PDF
Download
Energy label
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/cd92b5dc-9128-49f1-8e31-b3bd002e7681/20000128433_HighresDigitalRGB.png
Descriptions
DA2450, DA2450-1, DA2558 (Installation drawing)
1) Vent connection alternatively to rear, You will find further detailed measurements in the instructions for use!
