Name: PUR 68 W
Brand: Miele
SKU: 10565920
Price: 1149.99 EUR
Availability: InStock
Rating: 5 (2 reviews)

Answers are generated by AI. Our assistant can help you discover suitable products and accessories. See privacy notice

Free delivery available on all orders over €100 | Klarna available at checkout.

Colour:Stainless steel

Product data sheet

€1,149.99

¹²

A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.

Retail price includes 23% VAT.

Product data sheet

Model identifier: PUR 68 W
Manufacturer material number: 10565920
EAN number: 4002515792971
Marketing class: Silver

Wall mounted cooker hood

Type of air guide: Can be retrofitted
Recirculation conversion kit (order separately): DUW 20
Active charcoal filter (order separately): DKF 12-P

Colour: Stainless steel
Possible in RAL colour (specify colour code when ordering)

Electronic controls
Controls: Light-touch switches with LEDs
Power levels (number without Booster level): 3
Booster levels: 1
Easy-to-clean canopy interior – CleanCover

Energy efficiency class (A+++ to D): A
Annual energy consumption in kWh/year: 47
Fluid dynamic efficiency class: A
Lighting efficiency class: A
Grease filtering efficiency class: A

Easy-to-clean canopy interior – CleanCover

Number of dishwasher-safe stainless steel grease filters (10-ply): 2

Number x W: 2 x 3 W
Light intensity in Lx: 330 lx
Colour temperature in K: 3000 Kelvin

Dual-action blower

Air throughput in Level 1 (m³/h) according to EN 61591: 265
Air throughput in Level 2 (m³/h) according to EN 61591: 320
Air throughput in Level 3 (m³/h) according to EN 61591: 395
Air throughput in Booster level 1 (m³/h) according to EN 61591: 650
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 47
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 52
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3: 56
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3: 67
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 32
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 37
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 41
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 52

Air throughput in Level 1 (m³/h) according to EN 61591: 190
Air throughput in Level 2 (m³/h) according to EN 61591: 270
Air throughput in Level 3 (m³/h) according to EN 61591: 330
Air throughput in Booster level 1 (m³/h) according to EN 61591: 460
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 54
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 60
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3: 64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3: 71
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 39
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 45
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 48
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13: 56

Safety shut-off

Canopy dimensions (W x H x D) in mm: 598 x 62 x 500
Overall height for vented and external min. in (mm): 685
Overall height for extraction mode and external mode cooker hoods max. in mm: 1005
Overall height for recirculation min in (mm): 815
Overall height for recirculation mode cooker hoods max. in mm: 1135
Canopy width in in. (mm): 598
Canopy height in in. (mm): 62
Depth of hood canopy in in. (mm): 500
Minimum height above electric hobs in mm: 450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm: 650
Net weight in kg: 21
Length of supply lead in m: 1.5
Standard plug fitted
Total rated load in kW: 0.226
Voltage in V: 230
Fuse rating in A: 10
Frequency in Hz: 50
Number of phases: 1

Extraction ducting connection at top
Diameter of extraction ducting connection in mm: 150
Telescopic chimney

Non-return flap

EAN: 4002515792971

What's included

Non-return flap

Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
CleanCover
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

Safety

Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

Convenience and safety in detail

CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

Matching products and accessories

DKF 12-P

Active AirClean charcoal filter

for a wide range of Miele cooker hoods.

Silencer

reduces airflow and motor noises.

Wall box

for extraction.

DKF 12-R

Longlife reactivatable AirClean charcoal filter

for a wide range of Miele cooker hoods.

Aluminium vent hose

flexible vent duct.

DKF 16-P

Active AirClean charcoal filter

for the Miele DA 7006 D cooker hood.

GP CA ST 0252 L

SteelCare stainless steel care product, 250 ml

For a smooth, matt, clean stainless steel surface.

GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

GP MI X 0011 W

Multi-purpose microfibre cloth, qty 1

For best cleaning results and safe use.

MicroCloth HyClean, 1 cloth

Antibacterial multi-purpose cloth for improved hygiene.

Downloads

Installation plan

PDF

Download

Product sheet

PDF

Download

Warranty conditions

PDF

Download

dwg

ZIP

Download

fbx

ZIP

Download

ifc

ZIP

Download

rfa

ZIP

Download

rvt

ZIP

Download

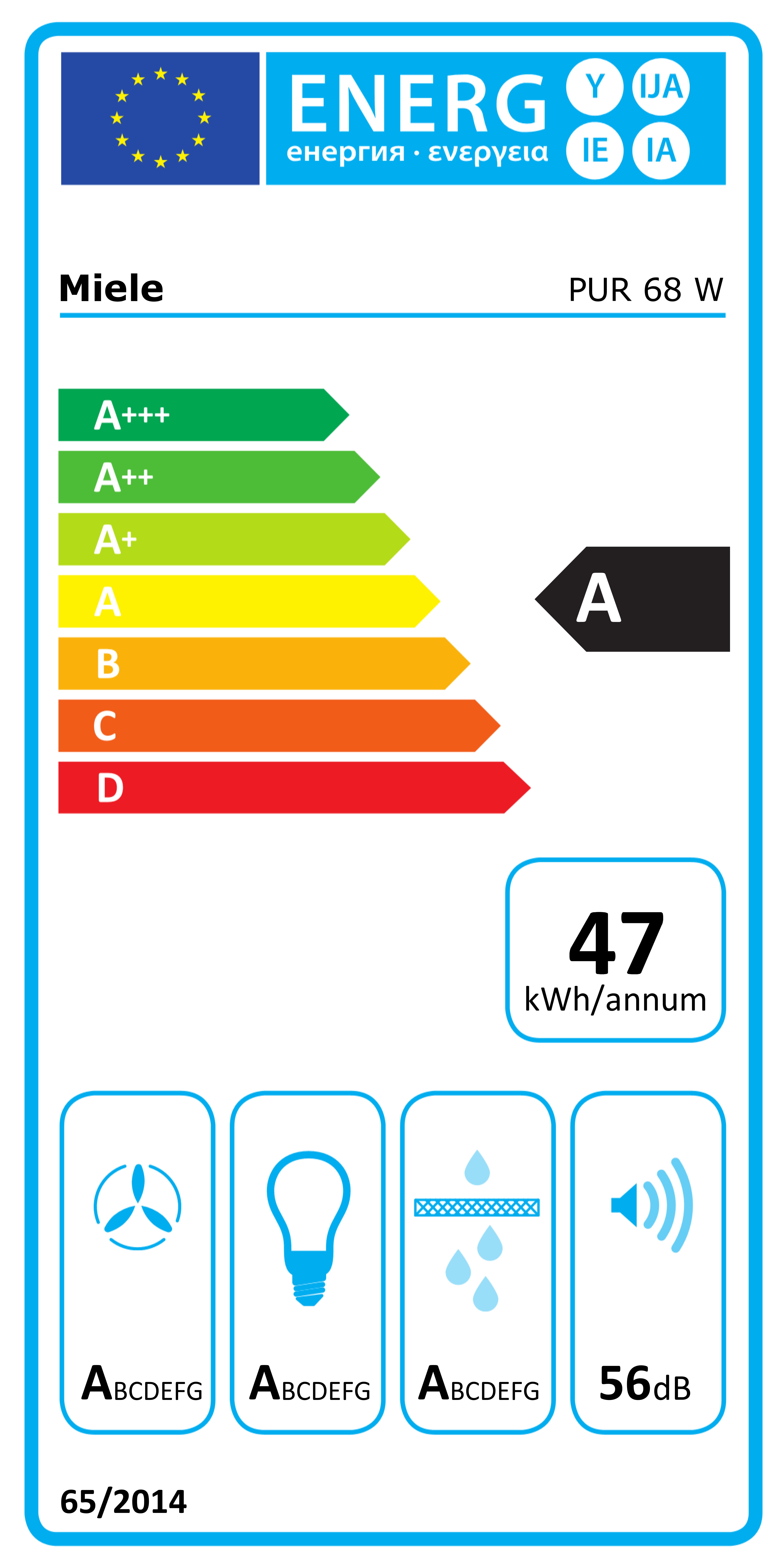

Energy label

PDF

Download

Energy label

PNG

Download

Product fiche

PDF

Download

Energy label

PDF

Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/cbceafab-6aa2-4eac-9c5f-b3c50015fa4f/20000103511_HighresDigitalRGB.png

Descriptions

PUR68W, PUR62W Living, DA416-6, DA416-7 (Installation drawing)

1) Extraction, 2) Recirculation, 3) Ventilation grille at top for recirculation, 4+5) Installation cut-out (5 not required for recirculation)

POSTSCRIPT

Download

1.A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
2.Retail price includes 23% VAT.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.

PUR 68 W Stainless steel
