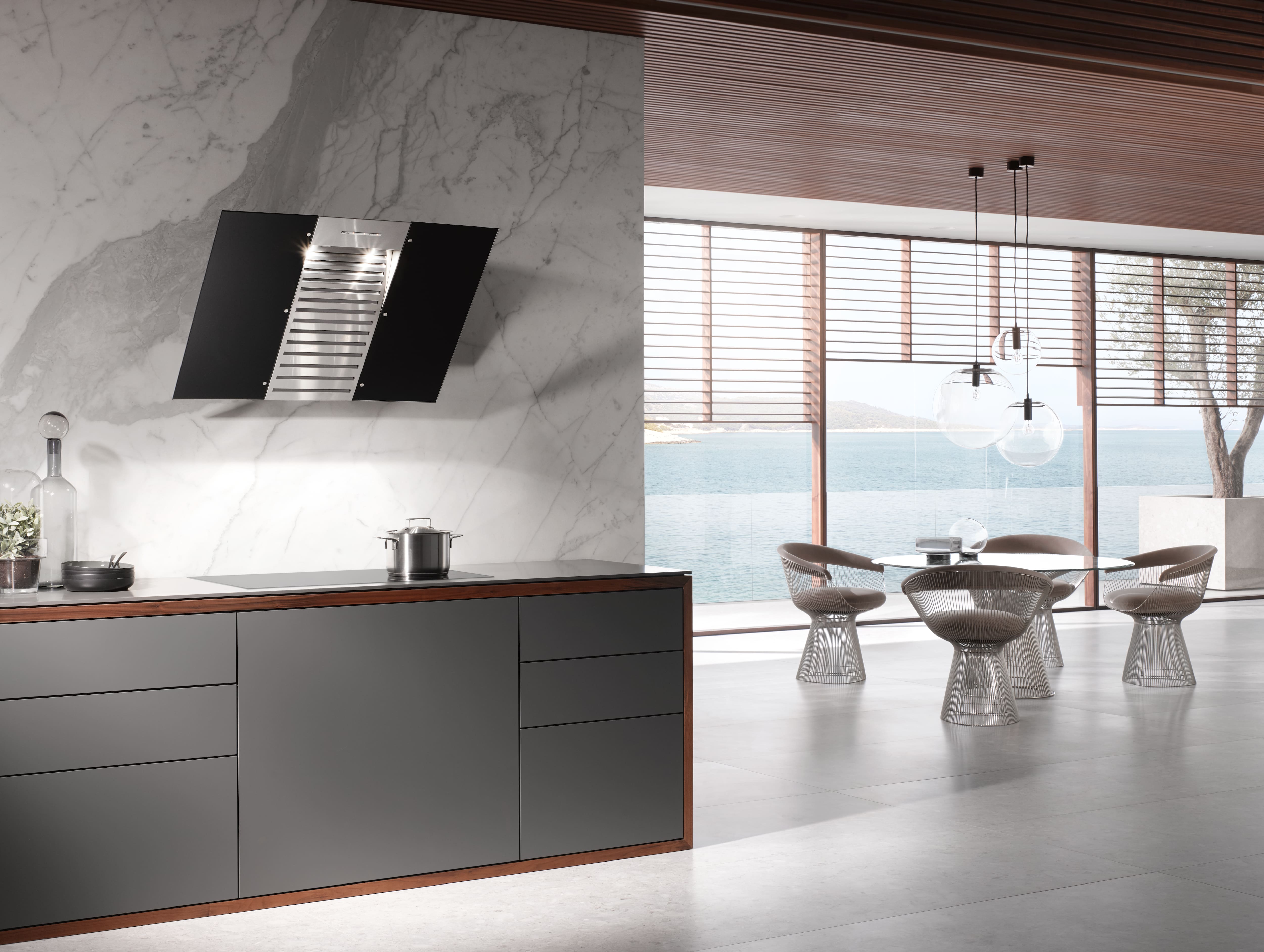

  • Miele - DA 6096 W Wing Obsidian black – Cooker hoods - 2

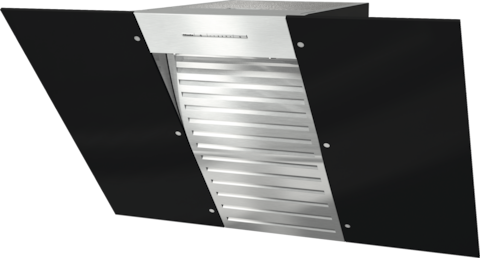

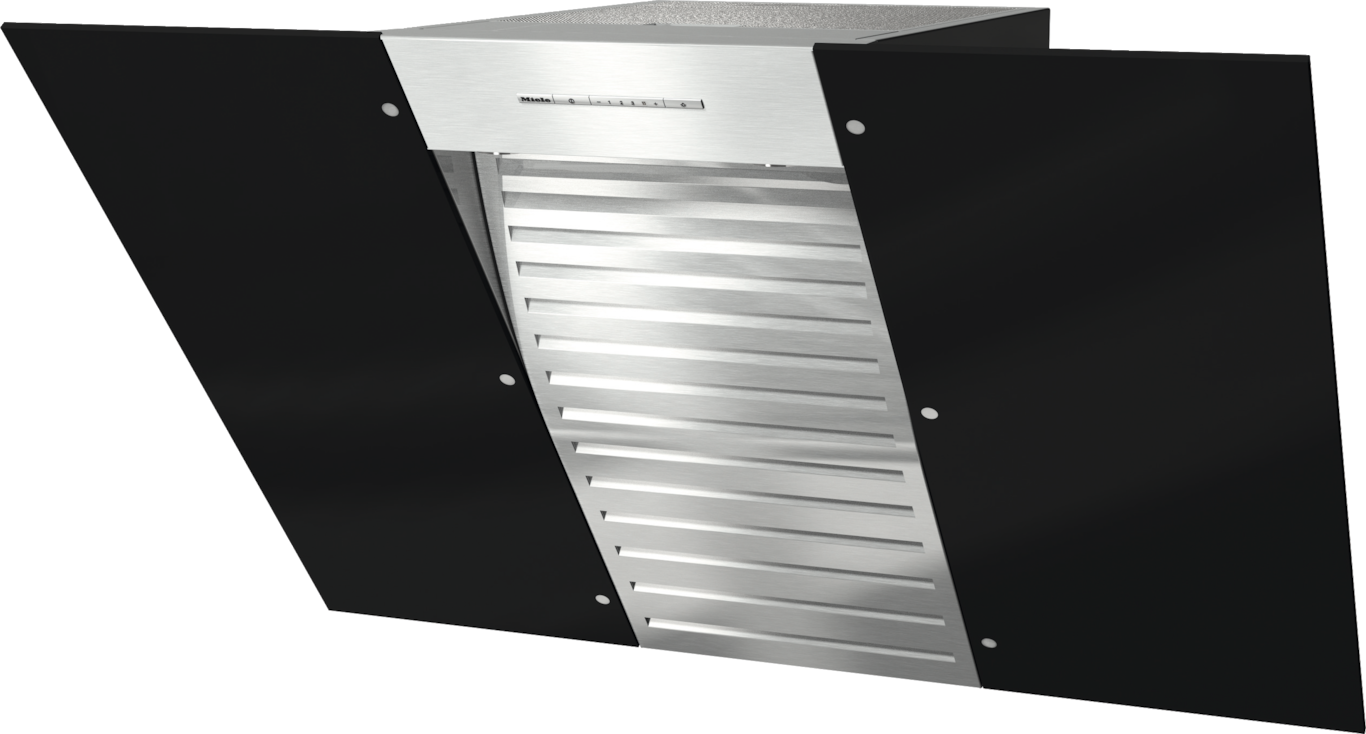

Wall mounted cooker hood

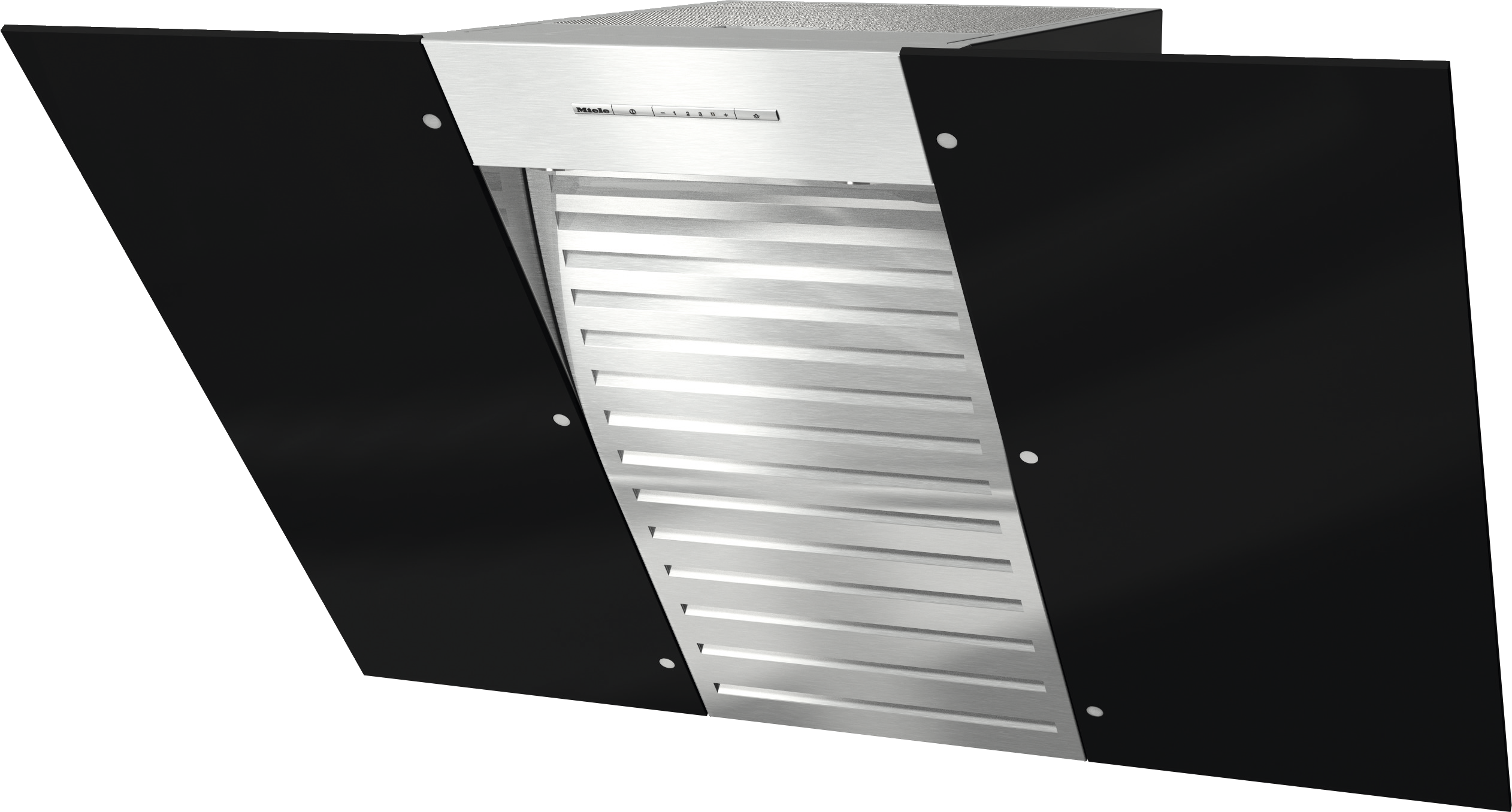

DA 6096 W Wing Obsidian black

with energy-efficient LED lighting and light-touch switches for easy use.
Colour:Obsidian black
Product data sheet
sale price€1,479.99
12
A contribution to recycling costs (PRF) of 5 EUR for large domestic appliances and 10 EUR for American Side by Side refrigeration is Included in the retail price. No fees apply to Vacuum Cleaners, Accessories, Hobs, Microwaves, Hoods or Coffee Machines.
Retail price includes 23% VAT.




Product details

  • Lots of headroom – 898 mm 898 mm wide glass canopy
  • Powerful - 650 m3/h on the booster setting
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Safe and easy to clean -
    Miele CleanCover
  • Suitable for every home - for extraction or recirculation
  • View manufacturer details:
  • Safety information

Product data sheet

Model identifier
DA 6096 W Wing
Manufacturer material number
10081710
EAN number
4002515587515
Marketing class
Silver
Wall mounted cooker hood
Type of air guide
Can be retrofitted

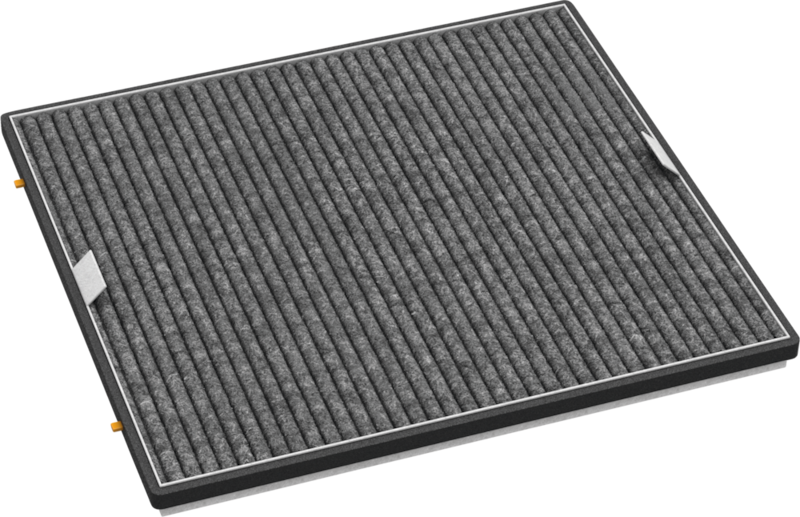

Active charcoal filter (order separately)
DKF 25-P
Colour
Obsidian black
Electronic controls
Controls
Light-touch switches with LEDs
Power levels (number without Booster level)
3
Booster levels
1
Easy-to-clean canopy interior – CleanCover
Energy efficiency class (A+++ to D)
B
Annual energy consumption in kWh/year
70.4
Fluid dynamic efficiency class
B
Lighting efficiency class
A
Grease filtering efficiency class
B
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)
1
Number x W
2 x 4,5 W
Light intensity in Lx
380 lx
Colour temperature in K
3500 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591
200
Air throughput in Level 2 (m³/h) according to EN 61591
300
Air throughput in Level 3 (m³/h) according to EN 61591
400
Air throughput in Booster level 1 (m³/h) according to EN 61591
650
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
40
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
48
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
54
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
66
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
25
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
33
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
39
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
51
Air throughput in Level 1 (m³/h) according to EN 61591
120
Air throughput in Level 2 (m³/h) according to EN 61591
220
Air throughput in Level 3 (m³/h) according to EN 61591
320
Air throughput in Booster level 1 (m³/h) according to EN 61591
520
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
48
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
55
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
62
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
71
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
33
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
41
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
47
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
56
Safety shut-off
Single-ply safety glass (ESG)
Canopy dimensions (W x H x D) in mm
898 x 547 x 523
Overall height for vented and external in in. (mm)
547
Overall height for extraction mode and external mode cooker hoods in mm
547
Overall height for recirculation in in. (mm)
547
Overall height for recirculation mode cooker hoods in mm
547
Canopy width in in. (mm)
898
Canopy height in in. (mm)
547
Depth of hood canopy in in. (mm)
523
Minimum height above electric hobs in mm
450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
20
Length of supply lead in m
1.5
Standard plug fitted
Hard-wired connection
Total rated load in kW
0.209
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm
150
Non-return flap
EAN
4002515587515

What's included

Non-return flap
  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

Safety

Always on the safe side
Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.

Downloads

Installation plan
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download
Energy label
PDF
Download
Energy label
PNG
Download
Product fiche
PDF
Download
Energy label
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/6661f15d-fa22-4fce-9708-b3c5005e1fa2/20000111925_HighresDigitalRGB.png
Descriptions

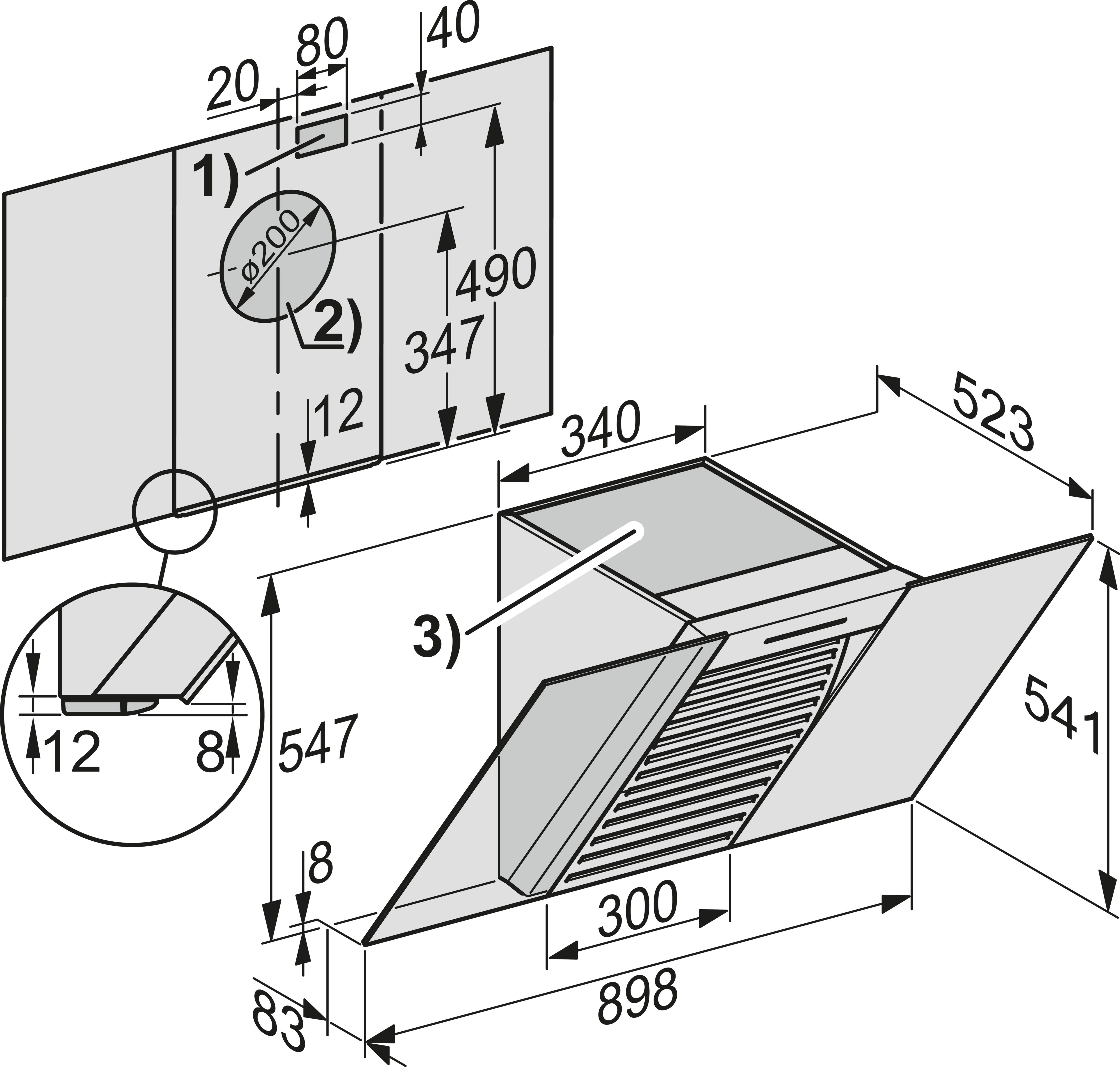

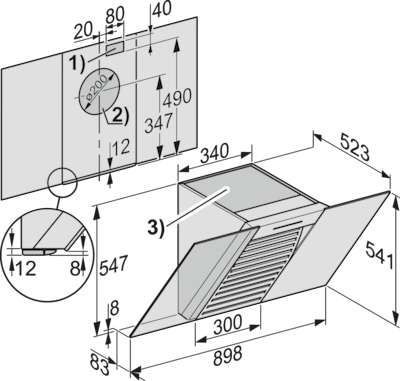

DA 6096 W - White and Black Wing (Installatin drawing)
1) Breakthrough, if the mains connection is not with mains plug but with fixed connection., 2) Breakthrough in air exhaust to the rear. Exhaust connection alternatively to the rear. , 3) Air outlet for recirculation. The distance to the ceiling or the top of the unit mounted furniture should be at least 300 mm.
